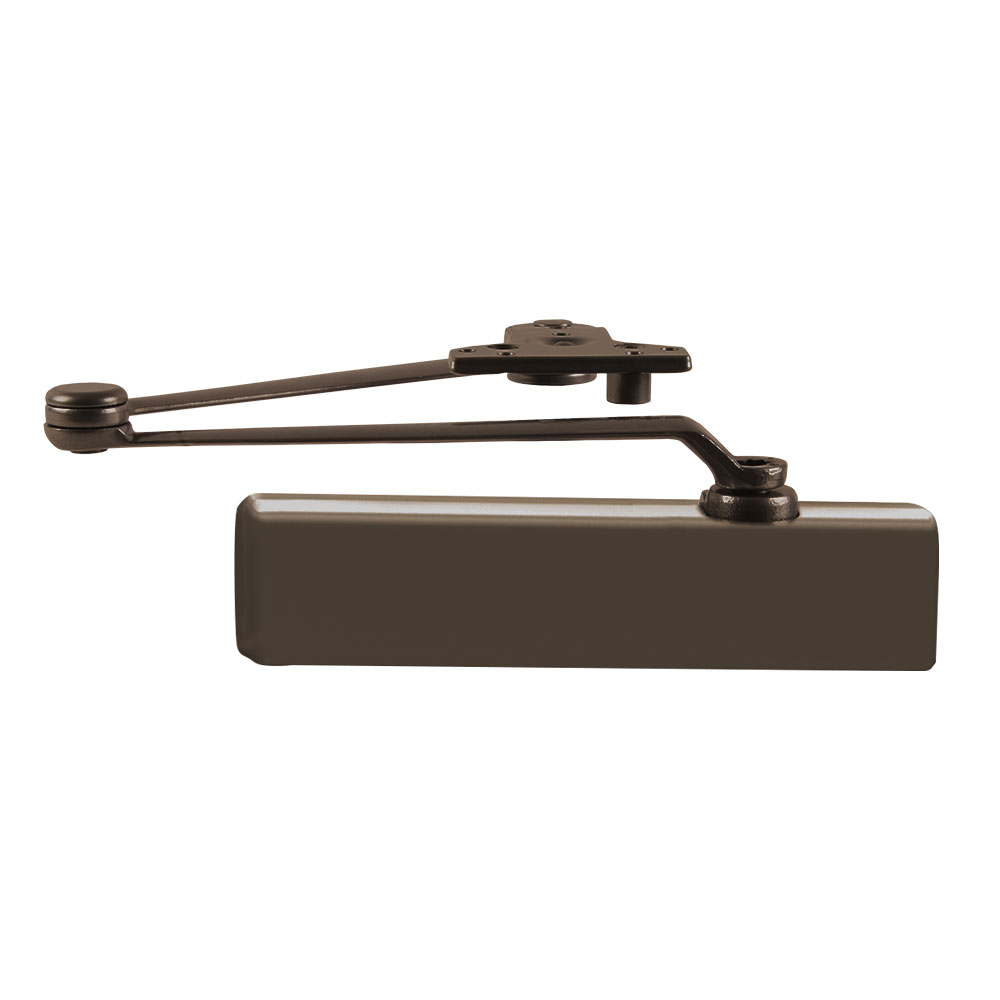

LCN 1461-CUSH 695 FC DKBRZ Surface Closer

LCN 1461-CUSH 695 FC Surface Closer DKBRZ offers a robust solution for high-traffic environments with its Grade 1 parallel arm design. Engineered for durability, this heavy-duty closer features a cast iron body and a full plastic cover, ensuring longevity and reliable performance. With a 100-degree swing and a cush arm mechanism, it provides smooth operation while preventing damage to doors and frames through its Cush-N-Stop® function. The LCN 1461 is non-handed and can be mounted on either right or left swinging doors, making it a versatile choice for both commercial and institutional applications. The adjustable spring size from 1 to 6 accommodates various door sizes, with a factory setting at strength 3. Independent adjustment valves allow for precise control of backcheck, closing, and latching speeds, with all adjustments concealed to deter tampering. Designed for quick installation, the closer comes with a stick-on template that significantly reduces setup time. Additionally, it meets ADA requirements, ensuring accessibility. With a limited warranty of 30 years and the option for custom finishes, the LCN 1461-CUSH is a reliable and stylish choice for any building professional or knowledgeable homeowner seeking quality door hardware.

Surface Closer DKBRZ

Grade 1 Parallel Arm Surface Closer, Push Side, Parallel Arm Heavy Duty, Dead Stop, Full Plastic Cover, 100 Deg. Swing, Cush Arm, Dark Bronze Painted Finish, Non-Handed

The LCN 1460 Series is designed for maximum versatility, available with multiple cover options, it can be used for both commercial and institutional applications. This Grade 1 closer features a cast iron body with a full compliment bearing, 1-1/4 In. diameter piston, 3/4 In. diameter single heat treated pinion journal and all weather fluid. Spring size is adjustable from size 1 to 6.

Universal medium-duty closer designed for maximum versatility that installs quickly and accurately.

The LCN 1460 Series is available with multiple cover options, can be used for both commercial and institutional applications. This fully universal closer offers a wide variety of options and new fast and accurate installation.

• Standard 1460 series closer shipped with regular arm, a slim line plastic cover, and self reaming and tapping screws
• Multiple cover options include; Standard (Slim line), Full and Designer Series
• Non-sized (1-6) cylinder is adjustable for interior doors to 5’0” and exterior doors to 4’0”
• Closer mounts hinge side, top jamb and parallel arm on either right or left swinging doors
• Closer meets ADA requirements
• Standard or optional custom powder coat finish. Optional plated finish on Designer Series metal cover, arm and fasteners
• Optional SRI primer for installations in corrosive conditions

1461 Series Features

• Universal, fully reversible, non-handed door closer
• Closer cylinder constructed of high strength cast iron for increased durability
• Tested to 2,000,000 cycles
• Fully adjustable 1-6 spring strength to suit door size and site conditions
• Factory set to strength 3
• Standard closer offers 3 installation options
  • Regular (pull side)
  • Top jamb (push side)
  • Parallel arm (push side)
• Independent adjustment valves for adjusting backcheck, closing and latching speeds
• All adjustment valves are concealed behind the cover to prevent tampering
• Joints in arms and shoe brackets adapt to uneven mounting surfaces
• Stick-on template for fast, accurate installation. Cuts installation time in half
• Closers installed according to LCN installation instructions require minimal periodic maintenance or adjustments
• Cush-N-Stop® function has a built in stop incorporated into the arm to prevent damage to the closer, door or frame in the event of an abrupt stop
