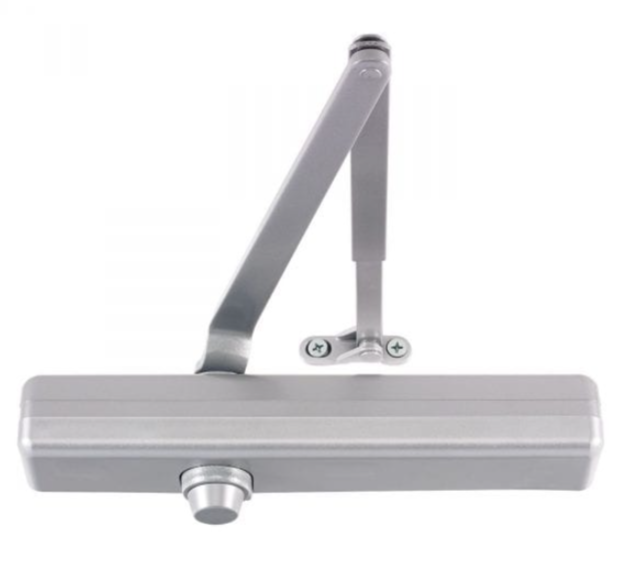

LCN 1461-CYLDEL-RW/PA-AL Medium Duty Door Closer, Cast Iron, Delay Action, ADA Adjustable, Grade 1

LCN Closers 1461-CYLDEL-RW/PA-AL Medium Duty Door Closer combines strength and versatility, making it an ideal choice for commercial and institutional applications. Constructed from durable cast iron, this surface-mounted closer features a delay action cylinder that ensures a smooth closing experience while meeting ANSI/BHMA A156.4 grade 1 and ADA requirements. The adjustable spring size ranges from 1 to 6, allowing for a customized closing force to suit various door sizes and weights. Designed for ease of installation, the LCN 1461 model includes peel-n-stick templates and a patented green dial for straightforward spring power adjustments. The slim line plastic cover not only enhances the aesthetic but also ensures compatibility with optional plated finishes. This model is UL and cUL listed for self-closing doors and features a 30-year limited warranty, underscoring its reliability and durability. With multiple mounting options-hinge, top jamb, or parallel arm-this door closer offers flexibility to meet your specific installation needs. Additionally, it is equipped with an all-weather fluid for consistent performance in various climates. Choose the LCN 1461-CYLDEL-RW/PA-AL for a robust and adaptive solution to your door closing requirements.

Medium Duty Door Closer, Cast Iron, Surface Mount, Delay Action Cylinder, Tri-Pack Arm for Regular Pull Side, Top Jamb, or Parallel Arm Mount, Slim Line Plastic Cover, ADA Adjustable Size 1-6, Grade 1, TBSRT Screw Pack, 689/AL Aluminum Powder Coat

The 1460 series is a universal medium-duty closer designed for maximum versatility in commercial and institutional applications, meeting ANSI/BHMA A156.4 grade 1 and ADA reduced opening force requirements. It installs quickly, accurately and offers a variety of options. It is cUL and UL listed for self-closing doors without hold-open and boasts a 30-year limited warranty. Features include a slim line plastic cover, with optional plated finish on the cover, the arm and the fasteners. LCN peel-n-stick templates ensure quick and accurate installation, and the patented LCN green dial takes the guesswork out of spring power adjustments.

Features:

• Heat-treated steel pinion journal
• All-weather fluid
• LCN patented green dial spring power indicator
• 30-year warranty
• Universal non-handed
• Peel-n-stick template and standard slim line plastic cover
• Adjustable spring sizes 1-6

Specifications:

• Certifications: Grade 1 - ANSI A156.4, UL 10C, ADA, 100 hour salt spray, meets BAA - buy American Act
• Body construction:
• Cast iron body
• Full complement bearing
• 1-1/4" diameter piston
• 3⁄4" diameter single heat treated pinion journal
• Fluid: All weather
• Templating: Peel-n-stick templates - 1" x 7-1⁄2" mounting hole pattern
• Size: Adjustable spring size 1-6 (includes patented green dial)
• Cover: Slim line plastic, standard, full plastic and metal designer series, optional
• Fasteners: Self reaming and tapping screws (SRT)
• Mounting: Hinge (pull side), top jamb (push side), parallel arm (push side)

Optional Arms:

• 1460-3077: Regular Arm (REGARM)
• Non-handed
• Mounts hinge side or top jamb
• P1460 closer includes PA shoe, 1460-62PA required for parallel arm mounting
• 1460-3077L: Long Arm (LONG)
• Non-handed
• Includes long rod and shoe, 1460-79LR for top jamb mount with deep reveals
• Optional
• 1460-3077HD: Heavy Duty Arm (HD)
• Non-handed
• Mounts hinge side, top jamb or parallel arm
• Optional
• 1460-3077HDL: Heavy Duty Long Arm (HDLONG)
• Non-handed
• Includes long rod and shoe, 1460-79LR for top jamb mounts with deep reveals
• Optional
• 1460-3049: Hold Open Arm (H)
• Non-handed
• Mounts hinge side, top jamb or parallel arm (62PA required)
• Hold-open adjustable at shoe
• Optional
• 1460-3049L: Hold Open Long Arm (HLONG)
• Non-handed
• Includes long head and tube, 1460- 3048L for top jamb mount with deep reveals
• Optional
• 1460-3077EDA: Extra Duty Arm (EDA)
• Non-handed
• Features solid forged steel main and forearm for potentially abusive installations
• Optional 1460-3077EDA/62G for blade stop clearance
• 1460-3077EDA/62G: Extra Duty Arm with 62G Thick Hub Shoe (EDAW62G)
• Non-handed
• Features solid forged steel main and forearm for potentially abusive installations
• 1460-3049EDA: Hold Open Extra Duty Arm (HEDA)
• Handed
• Provides hold open function adjustable at shoe
• Optional
• 1460-3077CNS: Cush-n-Stop Arm (CUSH)
• Non-handed
• Features solid forged steel main arm and forearm with stop in soffit shoe
• Optional
• 1460-3049CNS: Hold Cush-n-Stop Arm (HCUSH)
• Non-handed
• Provides hold open function with templated stop/hold open points
• Handle controls hold open function
• Optional
• 1460-3077SCNS: Spring Cush-n-Stop Arm (SCUSH)
• Non-handed
• For abusive applications features solid forged steel main arm and forearm with spring loaded stop in the soffit shoe
• Optional
• 1460-3049SHCNS: Spring Hold Open Cush-n-Stop Arm (SHCUSH)
• Non-handed
• For abusive applications features solid forged steel main arm and forearm with spring loaded stop in the soffit shoe
• Handle controls hold open function
• Optional

Finishes:

• 689 - Aluminum
• 690 - Statuary bronze
• 691 - Light bronze
• 693 - Black
• 695 - Dark bronze
• 696 - Brass
