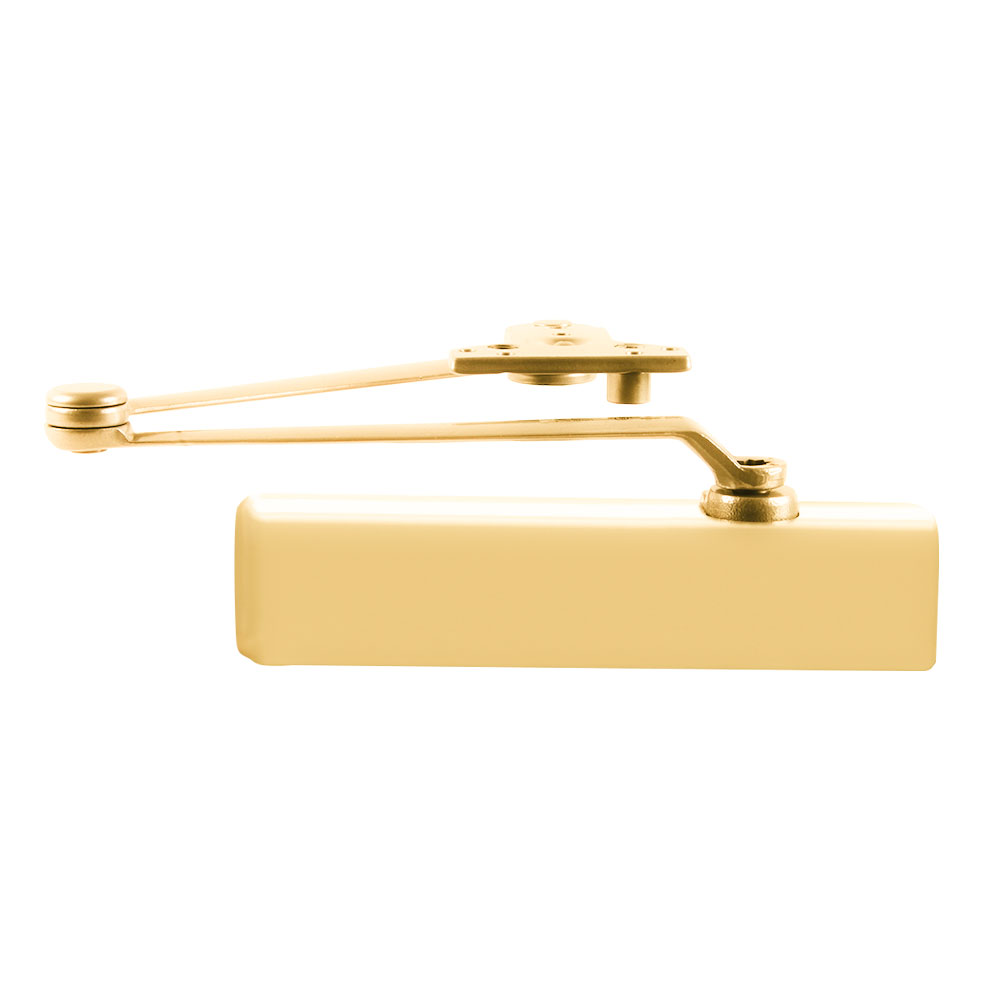

LCN 1461-EDA 696 FC Brass Surface Closer

LCN 1461-EDA 696 FC Surface Closer BRASS offers robust performance with its Grade 1 classification, making it an ideal choice for both commercial and institutional settings. This parallel arm surface closer is designed for push-side installation, featuring a heavy-duty double lever arm and a full plastic cover that ensures durability and maintenance ease. Engineered with a cast iron body, the closer includes a 1-1/4 inch piston and a heat-treated pinion journal, making it capable of withstanding up to 2,000,000 cycles. The adjustable spring size accommodates a range from 1 to 6, enabling flexibility for door sizes up to 5 feet for interiors and 4 feet for exteriors. The 110-degree swing enhances accessibility, complying with ADA requirements. Multiple installation options-regular, top jamb, and parallel arm-add to the versatility, allowing for quick and precise setup. Independent adjustment valves for backcheck, closing, and latching speeds are concealed to prevent tampering, while the Cush-N-Stop® function protects against abrupt stops, enhancing longevity. With a stylish satin brass finish and various cover choices, the LCN 1461-EDA is not only functional but also aesthetically pleasing, making it a reliable choice for any professional looking to ensure security and accessibility in their spaces.

Surface Closer BRASS

Grade 1 Parallel Arm Surface Closer, Push Side, Double Lever Arm Heavy Duty, Full Plastic Cover, 110 Deg. Swing, Extra Duty Arm, Satin Brass Painted Finish, Non-Handed

The LCN 1460 Series is designed for maximum versatility, available with multiple cover options, it can be used for both commercial and institutional applications. This Grade 1 closer features a cast iron body with a full compliment bearing, 1-1/4 In. diameter piston, 3/4 In. diameter single heat treated pinion journal and all weather fluid. Spring size is adjustable from size 1 to 6.

Universal medium-duty closer designed for maximum versatility that installs quickly and accurately.

The LCN 1460 Series is available with multiple cover options, can be used for both commercial and institutional applications. This fully universal closer offers a wide variety of options and new fast and accurate installation.

• Standard 1460 series closer shipped with regular arm, a slim line plastic cover, and self reaming and tapping screws
• Multiple cover options include; Standard (Slim line), Full and Designer Series
• Non-sized (1-6) cylinder is adjustable for interior doors to 5’0” and exterior doors to 4’0”
• Closer mounts hinge side, top jamb and parallel arm on either right or left swinging doors
• Closer meets ADA requirements
• Standard or optional custom powder coat finish. Optional plated finish on Designer Series metal cover, arm and fasteners
• Optional SRI primer for installations in corrosive conditions

1461 Series Features

• Universal, fully reversible, non-handed door closer
• Closer cylinder constructed of high strength cast iron for increased durability
• Tested to 2,000,000 cycles
• Fully adjustable 1-6 spring strength to suit door size and site conditions
• Factory set to strength 3
• Standard closer offers 3 installation options
  • Regular (pull side)
  • Top jamb (push side)
  • Parallel arm (push side)
• Independent adjustment valves for adjusting backcheck, closing and latching speeds
• All adjustment valves are concealed behind the cover to prevent tampering
• Joints in arms and shoe brackets adapt to uneven mounting surfaces
• Stick-on template for fast, accurate installation. Cuts installation time in half
• Closers installed according to LCN installation instructions require minimal periodic maintenance or adjustments
• Cush-N-Stop® function has a built in stop incorporated into the arm to prevent damage to the closer, door or frame in the event of an abrupt stop
