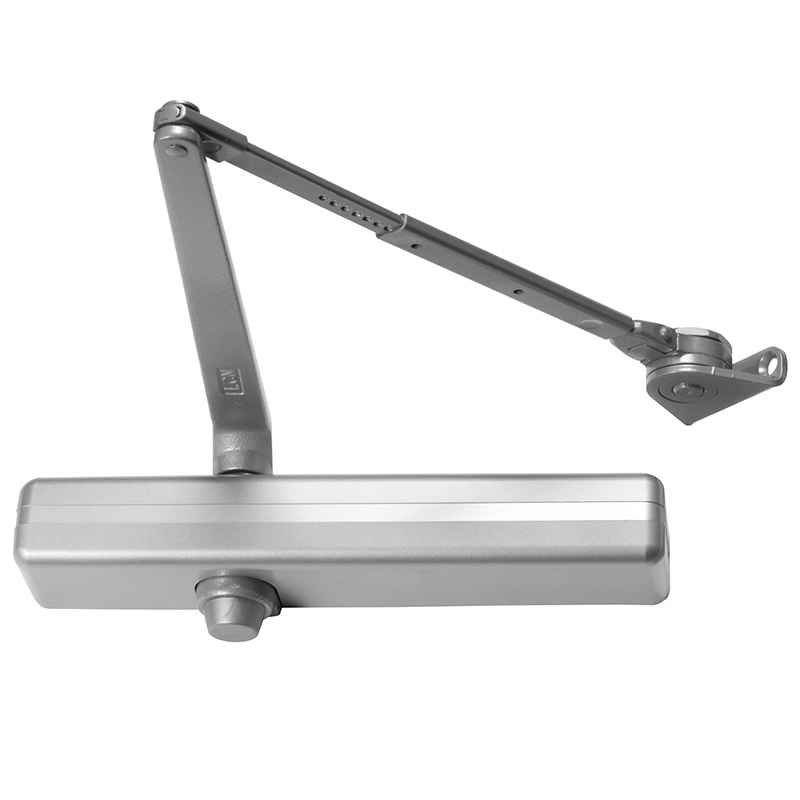

LCN 1461-H 689 DS AL Surface Closer

LCN 1461-H 689 DS Surface Closer AL is a Grade 1 Regular or Top Jamb Surface Closer designed for exceptional versatility in both commercial and institutional settings. Its robust cast iron body houses a full complement bearing and a 1-1/4 inch diameter piston, ensuring durability and reliability. With a non-handed design, this closer is suitable for push or pull side installations and accommodates doors swinging up to 180 degrees. The adjustable spring strength ranges from size 1 to 6, allowing you to tailor the closing force to suit various door sizes and conditions. This model is equipped with independent adjustment valves for backcheck, closing, and latching speeds, all concealed to prevent tampering. The Cush-N-Stop® function protects against abrupt stops, safeguarding both the closer and the door. Installation is simplified with a stick-on template that cuts assembly time in half. Offered with multiple cover options, including a sleek Designer Metal finish, this surface closer not only meets ADA requirements but also enhances the aesthetic appeal of your doors. With a 30-year limited warranty, the LCN 1461-H is a dependable choice for any professional looking to combine functionality with style.

Surface Closer AL

Grade 1 Regular or Top Jamb Surface Closer, Push or Pull Side, Double Lever Arm Friction Hold Open, Hold Open, Designer Metal Cover, 180 Deg. Swing, Aluminum Painted Finish, Non-Handed

The LCN 1460 Series is designed for maximum versatility, available with multiple cover options, it can be used for both commercial and institutional applications. This Grade 1 closer features a cast iron body with a full compliment bearing, 1-1/4 In. diameter piston, 3/4 In. diameter single heat treated pinion journal and all weather fluid. Spring size is adjustable from size 1 to 6.

Universal medium-duty closer designed for maximum versatility that installs quickly and accurately.

The LCN 1460 Series is available with multiple cover options, can be used for both commercial and institutional applications. This fully universal closer offers a wide variety of options and new fast and accurate installation.

• Standard 1460 series closer shipped with regular arm, a slim line plastic cover, and self reaming and tapping screws
• Multiple cover options include; Standard (Slim line), Full and Designer Series
• Non-sized (1-6) cylinder is adjustable for interior doors to 5’0” and exterior doors to 4’0”
• Closer mounts hinge side, top jamb and parallel arm on either right or left swinging doors
• Closer meets ADA requirements
• Standard or optional custom powder coat finish. Optional plated finish on Designer Series metal cover, arm and fasteners
• Optional SRI primer for installations in corrosive conditions

1461 Series Features

• Universal, fully reversible, non-handed door closer
• Closer cylinder constructed of high strength cast iron for increased durability
• Tested to 2,000,000 cycles
• Fully adjustable 1-6 spring strength to suit door size and site conditions
• Factory set to strength 3
• Standard closer offers 3 installation options
  • Regular (pull side)
  • Top jamb (push side)
  • Parallel arm (push side)
• Independent adjustment valves for adjusting backcheck, closing and latching speeds
• All adjustment valves are concealed behind the cover to prevent tampering
• Joints in arms and shoe brackets adapt to uneven mounting surfaces
• Stick-on template for fast, accurate installation. Cuts installation time in half
• Closers installed according to LCN installation instructions require minimal periodic maintenance or adjustments
• Cush-N-Stop® function has a built in stop incorporated into the arm to prevent damage to the closer, door or frame in the event of an abrupt stop
