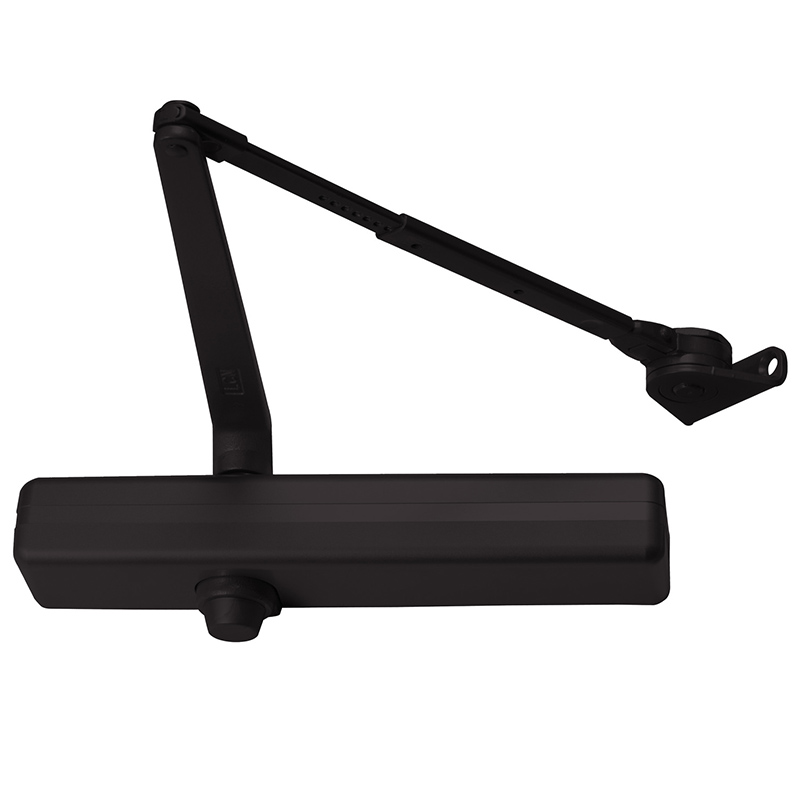

LCN 1461-H 693 DS Surface Closer GLBLK

LCN 1461-H 693 DS Surface Closer GLBLK is a Grade 1 regular or top jamb surface closer designed for both push and pull side applications. This versatile closer features a double lever arm friction hold open, allowing for a smooth operation with a 180-degree swing. Its sleek designer metal cover and black painted finish add a modern touch, making it suitable for various commercial and institutional environments. Constructed from high-strength cast iron, the LCN 1461 ensures durability and reliability, withstanding up to 2,000,000 cycles. The adjustable spring size ranges from 1 to 6, accommodating different door sizes up to 5’0" for interior doors and 4’0" for exterior ones. The universal, non-handed design simplifies installation on either right or left swinging doors, with three mounting styles: regular, top jamb, and parallel arm. This closer meets ADA requirements and includes independent adjustment valves for backcheck, closing, and latching speeds, all concealed to deter tampering. Additionally, the Cush-N-Stop® function protects the closer, door, and frame from abrupt stops. With a 30-year limited warranty, the LCN 1461-H is an excellent choice for those seeking reliable door control solutions.

Surface Closer GLBLK

Grade 1 Regular or Top Jamb Surface Closer, Push or Pull Side, Double Lever Arm Friction Hold Open, Hold Open, Designer Metal Cover, 180 Deg. Swing, Black Painted Finish, Non-Handed

The LCN 1460 Series is designed for maximum versatility, available with multiple cover options, it can be used for both commercial and institutional applications. This Grade 1 closer features a cast iron body with a full compliment bearing, 1-1/4 In. diameter piston, 3/4 In. diameter single heat treated pinion journal and all weather fluid. Spring size is adjustable from size 1 to 6.

Universal medium-duty closer designed for maximum versatility that installs quickly and accurately.

The LCN 1460 Series is available with multiple cover options, can be used for both commercial and institutional applications. This fully universal closer offers a wide variety of options and new fast and accurate installation.

• Standard 1460 series closer shipped with regular arm, a slim line plastic cover, and self reaming and tapping screws
• Multiple cover options include; Standard (Slim line), Full and Designer Series
• Non-sized (1-6) cylinder is adjustable for interior doors to 5’0” and exterior doors to 4’0”
• Closer mounts hinge side, top jamb and parallel arm on either right or left swinging doors
• Closer meets ADA requirements
• Standard or optional custom powder coat finish. Optional plated finish on Designer Series metal cover, arm and fasteners
• Optional SRI primer for installations in corrosive conditions

1461 Series Features

• Universal, fully reversible, non-handed door closer
• Closer cylinder constructed of high strength cast iron for increased durability
• Tested to 2,000,000 cycles
• Fully adjustable 1-6 spring strength to suit door size and site conditions
• Factory set to strength 3
• Standard closer offers 3 installation options
  • Regular (pull side)
  • Top jamb (push side)
  • Parallel arm (push side)
• Independent adjustment valves for adjusting backcheck, closing and latching speeds
• All adjustment valves are concealed behind the cover to prevent tampering
• Joints in arms and shoe brackets adapt to uneven mounting surfaces
• Stick-on template for fast, accurate installation. Cuts installation time in half
• Closers installed according to LCN installation instructions require minimal periodic maintenance or adjustments
• Cush-N-Stop® function has a built in stop incorporated into the arm to prevent damage to the closer, door or frame in the event of an abrupt stop
