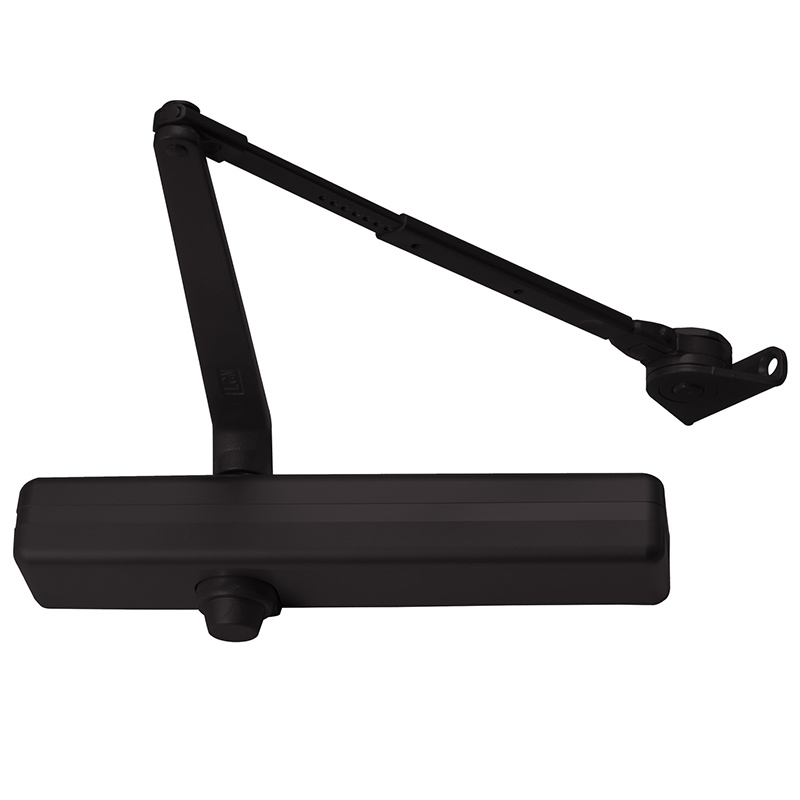

LCN 1461-H 693 Surface Closer GLBLK

LCN 1461-H 693 Surface Closer GLBLK offers exceptional performance and versatility for both commercial and institutional applications. This Grade 1 closer is engineered with a robust cast iron body and features a double lever arm friction hold open mechanism, allowing for a 180-degree swing. The slim plastic cover ensures a discreet appearance, while the black painted finish adds a sleek touch. Designed for ease of installation, the LCN 1461-H is non-handed and can be mounted on the push or pull side, using regular or top jamb styles. Its adjustable spring size accommodates door sizes ranging from 1 to 6, making it suitable for interior doors up to 5’0" and exterior doors up to 4’0". The closer is factory set to strength 3 and has been rigorously tested for up to 2,000,000 cycles, ensuring long-lasting durability. Additional features include independent adjustment valves for backcheck, closing, and latching speeds, concealed beneath the cover to prevent tampering. The Cush-N-Stop® function mitigates potential damage from abrupt stops, while the included stick-on template accelerates the installation process significantly. With a 30-year limited warranty, the LCN 1461-H 693 is a reliable choice for any door hardware needs.

Surface Closer GLBLK

Grade 1 Regular or Top Jamb Surface Closer, Push or Pull Side, Double Lever Arm Friction Hold Open, Hold Open, Slim Plastic Cover, 180 Deg. Swing, Black Painted Finish, Non-Handed

The LCN 1460 Series is designed for maximum versatility, available with multiple cover options, it can be used for both commercial and institutional applications. This Grade 1 closer features a cast iron body with a full compliment bearing, 1-1/4 In. diameter piston, 3/4 In. diameter single heat treated pinion journal and all weather fluid. Spring size is adjustable from size 1 to 6.

Universal medium-duty closer designed for maximum versatility that installs quickly and accurately.

The LCN 1460 Series is available with multiple cover options, can be used for both commercial and institutional applications. This fully universal closer offers a wide variety of options and new fast and accurate installation.

• Standard 1460 series closer shipped with regular arm, a slim line plastic cover, and self reaming and tapping screws
• Multiple cover options include; Standard (Slim line), Full and Designer Series
• Non-sized (1-6) cylinder is adjustable for interior doors to 5’0” and exterior doors to 4’0”
• Closer mounts hinge side, top jamb and parallel arm on either right or left swinging doors
• Closer meets ADA requirements
• Standard or optional custom powder coat finish. Optional plated finish on Designer Series metal cover, arm and fasteners
• Optional SRI primer for installations in corrosive conditions

1461 Series Features

• Universal, fully reversible, non-handed door closer
• Closer cylinder constructed of high strength cast iron for increased durability
• Tested to 2,000,000 cycles
• Fully adjustable 1-6 spring strength to suit door size and site conditions
• Factory set to strength 3
• Standard closer offers 3 installation options
  • Regular (pull side)
  • Top jamb (push side)
  • Parallel arm (push side)
• Independent adjustment valves for adjusting backcheck, closing and latching speeds
• All adjustment valves are concealed behind the cover to prevent tampering
• Joints in arms and shoe brackets adapt to uneven mounting surfaces
• Stick-on template for fast, accurate installation. Cuts installation time in half
• Closers installed according to LCN installation instructions require minimal periodic maintenance or adjustments
• Cush-N-Stop® function has a built in stop incorporated into the arm to prevent damage to the closer, door or frame in the event of an abrupt stop
