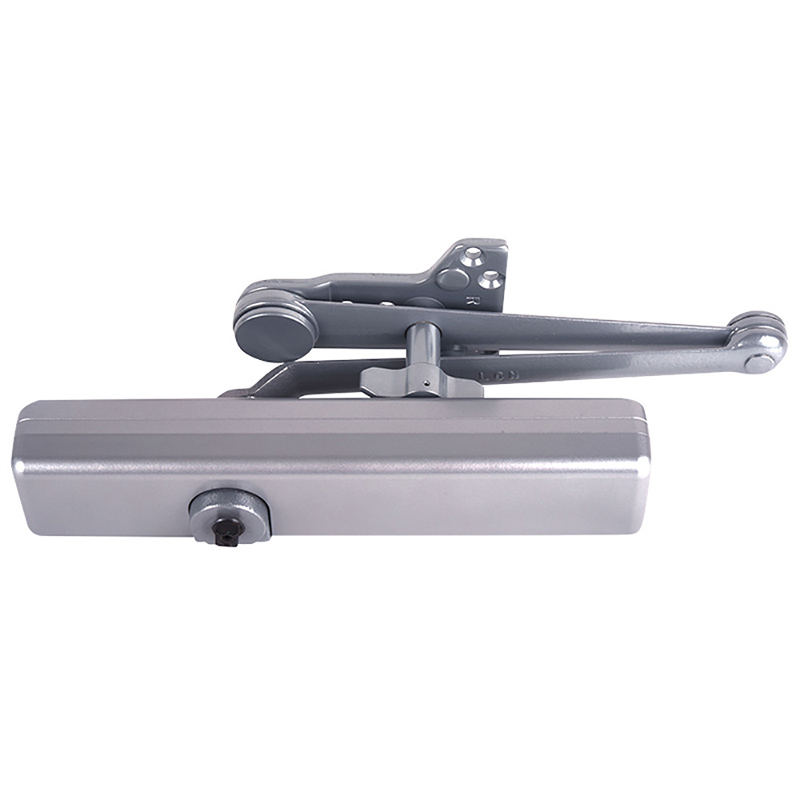

LCN 1461-HCUSH 689 DEL AL Surface Closer

LCN 1461-HCUSH 689 DEL Surface Closer AL offers a robust solution for both commercial and institutional door applications. This Grade 1 parallel arm surface closer is engineered for heavy-duty performance, featuring a unique Cush-n-Stop arm that provides a built-in stop to prevent damage from abrupt stops. With a 100-degree swing and hold-open function, this closer enhances convenience while maintaining safety. Constructed with a high-strength cast iron body, the LCN 1461 is built to last, having been tested for 2,000,000 cycles. The adjustable spring size-from 1 to 6-makes it adaptable for a variety of door sizes, accommodating interior doors up to 5’0" and exterior doors up to 4’0". Installation is streamlined with three mounting options (regular, top jamb, and parallel arm) and a stick-on template that reduces installation time by half. This closer also meets ADA requirements, ensuring accessibility for all users. The slim plastic cover provides a clean aesthetic, while optional finishes and a 30-year limited warranty underscore its durability and style. Whether you’re a building professional or a knowledgeable homeowner, the LCN 1461-HCUSH is a dependable choice for your door hardware needs.

Surface Closer AL

Grade 1 Parallel Arm Surface Closer, Push Side, Parallel Arm Heavy Duty Stop and Friction Hold, Hold Open, Dead Stop, Slim Plastic Cover, 100 Deg. Swing, Cush-n-Stop Arm, Delayed Action, Aluminum Painted Finish, Non-Handed

The LCN 1460 Series is designed for maximum versatility, available with multiple cover options, it can be used for both commercial and institutional applications. This Grade 1 closer features a cast iron body with a full compliment bearing, 1-1/4 In. diameter piston, 3/4 In. diameter single heat treated pinion journal and all weather fluid. Spring size is adjustable from size 1 to 6.

Universal medium-duty closer designed for maximum versatility that installs quickly and accurately.

The LCN 1460 Series is available with multiple cover options, can be used for both commercial and institutional applications. This fully universal closer offers a wide variety of options and new fast and accurate installation.

• Standard 1460 series closer shipped with regular arm, a slim line plastic cover, and self reaming and tapping screws
• Multiple cover options include; Standard (Slim line), Full and Designer Series
• Non-sized (1-6) cylinder is adjustable for interior doors to 5’0” and exterior doors to 4’0”
• Closer mounts hinge side, top jamb and parallel arm on either right or left swinging doors
• Closer meets ADA requirements
• Standard or optional custom powder coat finish. Optional plated finish on Designer Series metal cover, arm and fasteners
• Optional SRI primer for installations in corrosive conditions

1461 Series Features

• Universal, fully reversible, non-handed door closer
• Closer cylinder constructed of high strength cast iron for increased durability
• Tested to 2,000,000 cycles
• Fully adjustable 1-6 spring strength to suit door size and site conditions
• Factory set to strength 3
• Standard closer offers 3 installation options
  • Regular (pull side)
  • Top jamb (push side)
  • Parallel arm (push side)
• Independent adjustment valves for adjusting backcheck, closing and latching speeds
• All adjustment valves are concealed behind the cover to prevent tampering
• Joints in arms and shoe brackets adapt to uneven mounting surfaces
• Stick-on template for fast, accurate installation. Cuts installation time in half
• Closers installed according to LCN installation instructions require minimal periodic maintenance or adjustments
• Cush-N-Stop® function has a built in stop incorporated into the arm to prevent damage to the closer, door or frame in the event of an abrupt stop
