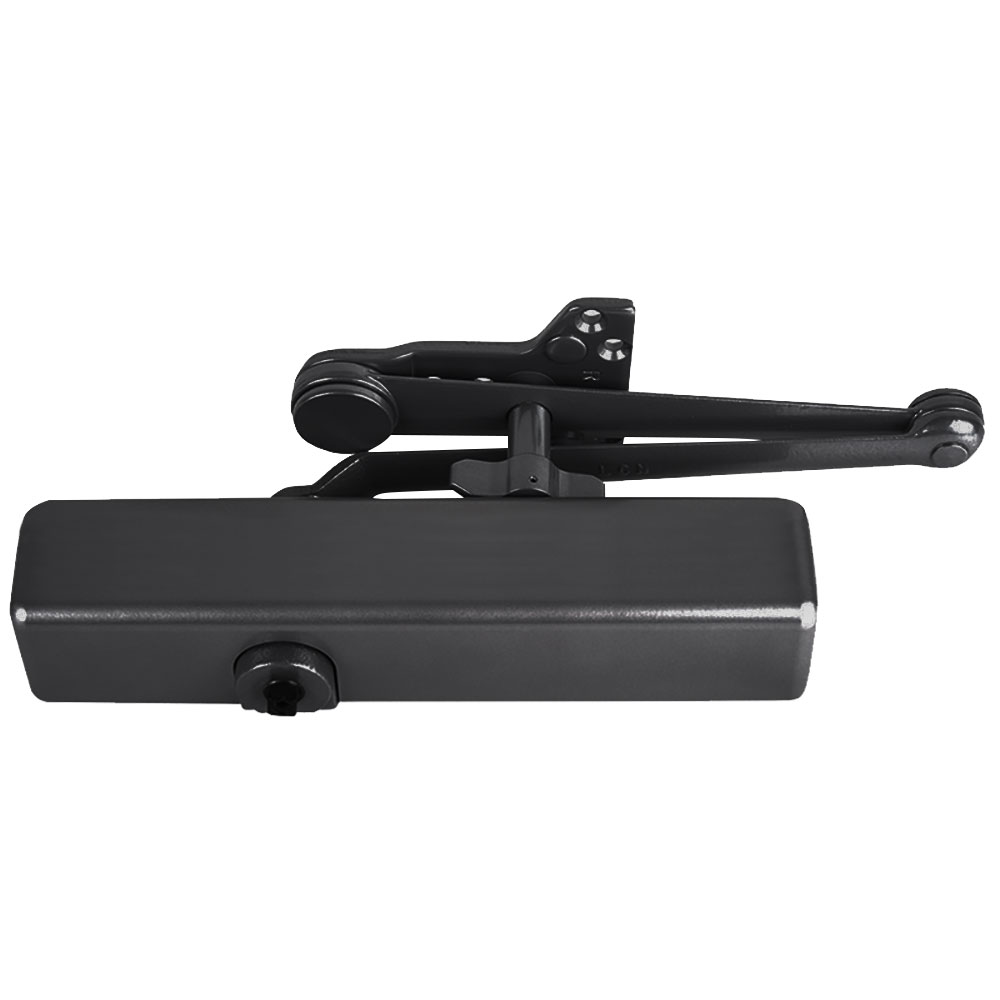

LCN 1461-HCUSH 693 FC Surface Closer GLBLK

LCN 1461-HCUSH 693 FC Surface Closer GLBLK offers robust performance with its Grade 1 parallel arm design, tailored for heavy-duty applications. This closer features a push side mounting style and incorporates a Cush-N-Stop arm, which includes a built-in stop to prevent damage to the door and frame during abrupt stops. With a full plastic cover and a sleek black painted finish, it not only provides durability but also enhances the aesthetic appeal of any entrance. Designed for versatility, the LCN 1460 series is suitable for both commercial and institutional environments. It boasts a cast iron body with a 1-1/4 inch diameter piston and a 3/4 inch heat-treated pinion journal, ensuring reliable operation across 2,000,000 cycles. The fully adjustable spring strength accommodates door sizes from 1 to 6, making it adaptable to various conditions. Installation is a breeze with three mounting options-regular arm, top jamb, and parallel arm-allowing for quick and accurate setup. Additionally, all adjustment valves are concealed to prevent tampering, ensuring consistent performance over time. Meeting ADA requirements, the LCN 1461-HCUSH is an ideal choice for those seeking a dependable and stylish door closer solution.

Surface Closer GLBLK

Grade 1 Parallel Arm Surface Closer, Push Side, Parallel Arm Heavy Duty Stop and Friction Hold, Hold Open, Dead Stop, Full Plastic Cover, 100 Deg. Swing, Cush-n-Stop Arm, Black Painted Finish, Non-Handed

The LCN 1460 Series is designed for maximum versatility, available with multiple cover options, it can be used for both commercial and institutional applications. This Grade 1 closer features a cast iron body with a full compliment bearing, 1-1/4 In. diameter piston, 3/4 In. diameter single heat treated pinion journal and all weather fluid. Spring size is adjustable from size 1 to 6.

Universal medium-duty closer designed for maximum versatility that installs quickly and accurately.

The LCN 1460 Series is available with multiple cover options, can be used for both commercial and institutional applications. This fully universal closer offers a wide variety of options and new fast and accurate installation.

• Standard 1460 series closer shipped with regular arm, a slim line plastic cover, and self reaming and tapping screws
• Multiple cover options include; Standard (Slim line), Full and Designer Series
• Non-sized (1-6) cylinder is adjustable for interior doors to 5’0” and exterior doors to 4’0”
• Closer mounts hinge side, top jamb and parallel arm on either right or left swinging doors
• Closer meets ADA requirements
• Standard or optional custom powder coat finish. Optional plated finish on Designer Series metal cover, arm and fasteners
• Optional SRI primer for installations in corrosive conditions

1461 Series Features

• Universal, fully reversible, non-handed door closer
• Closer cylinder constructed of high strength cast iron for increased durability
• Tested to 2,000,000 cycles
• Fully adjustable 1-6 spring strength to suit door size and site conditions
• Factory set to strength 3
• Standard closer offers 3 installation options
  • Regular (pull side)
  • Top jamb (push side)
  • Parallel arm (push side)
• Independent adjustment valves for adjusting backcheck, closing and latching speeds
• All adjustment valves are concealed behind the cover to prevent tampering
• Joints in arms and shoe brackets adapt to uneven mounting surfaces
• Stick-on template for fast, accurate installation. Cuts installation time in half
• Closers installed according to LCN installation instructions require minimal periodic maintenance or adjustments
• Cush-N-Stop® function has a built in stop incorporated into the arm to prevent damage to the closer, door or frame in the event of an abrupt stop
