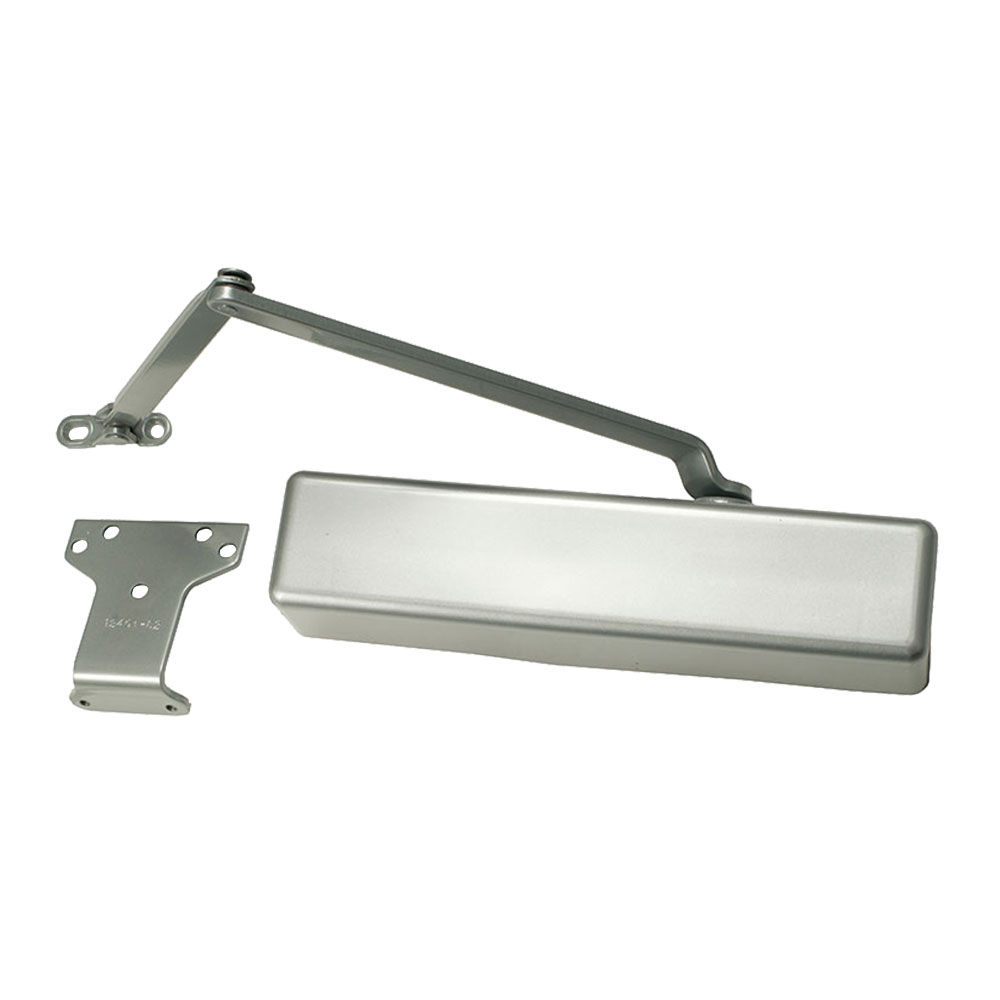

LCN 1461-HD/PA 689 FC Surface Closer AL

LCN 1461-HD/PA 689 FC Surface Closer AL is a Grade 1 tri-mount surface closer designed for exceptional versatility and durability in both commercial and institutional settings. This heavy-duty closer features a robust cast iron body, ensuring longevity, while its full plastic cover provides a sleek appearance. With a double lever arm and 180-degree swing capability, it accommodates various mounting styles, including push or pull side configurations. The LCN 1461 is engineered with a 1-1/4 inch diameter piston and a 3/4 inch heat-treated pinion journal, enhancing performance under demanding conditions. The spring size is easily adjustable from 1 to 6, making it suitable for interior doors up to 5 feet and exterior doors up to 4 feet. Independent adjustment valves allow for precise control over backcheck, closing, and latching speeds, while concealed adjustments prevent tampering. This closer meets ADA requirements and is equipped with Cush-N-Stop® functionality to protect the door and frame from damage during abrupt stops. The stick-on template simplifies installation, cutting time and effort significantly. Available in a matte silver finish, the LCN 1461-HD/PA is the ideal choice for professionals seeking reliability and ease of use in their door hardware solutions.

Surface Closer AL

Grade 1 Tri Mount Surface Closer, Push or Pull Side, Double Lever Arm Heavy Duty, Full Plastic Cover, 180 Deg. Swing, With Parallel Arm Bracket, Aluminum Painted Finish, Non-Handed

The LCN 1460 Series is designed for maximum versatility, available with multiple cover options, it can be used for both commercial and institutional applications. This Grade 1 closer features a cast iron body with a full compliment bearing, 1-1/4 In. diameter piston, 3/4 In. diameter single heat treated pinion journal and all weather fluid. Spring size is adjustable from size 1 to 6.

Universal medium-duty closer designed for maximum versatility that installs quickly and accurately.

The LCN 1460 Series is available with multiple cover options, can be used for both commercial and institutional applications. This fully universal closer offers a wide variety of options and new fast and accurate installation.

• Standard 1460 series closer shipped with regular arm, a slim line plastic cover, and self reaming and tapping screws
• Multiple cover options include; Standard (Slim line), Full and Designer Series
• Non-sized (1-6) cylinder is adjustable for interior doors to 5’0” and exterior doors to 4’0”
• Closer mounts hinge side, top jamb and parallel arm on either right or left swinging doors
• Closer meets ADA requirements
• Standard or optional custom powder coat finish. Optional plated finish on Designer Series metal cover, arm and fasteners
• Optional SRI primer for installations in corrosive conditions

1461 Series Features

• Universal, fully reversible, non-handed door closer
• Closer cylinder constructed of high strength cast iron for increased durability
• Tested to 2,000,000 cycles
• Fully adjustable 1-6 spring strength to suit door size and site conditions
• Factory set to strength 3
• Standard closer offers 3 installation options
  • Regular (pull side)
  • Top jamb (push side)
  • Parallel arm (push side)
• Independent adjustment valves for adjusting backcheck, closing and latching speeds
• All adjustment valves are concealed behind the cover to prevent tampering
• Joints in arms and shoe brackets adapt to uneven mounting surfaces
• Stick-on template for fast, accurate installation. Cuts installation time in half
• Closers installed according to LCN installation instructions require minimal periodic maintenance or adjustments
• Cush-N-Stop® function has a built in stop incorporated into the arm to prevent damage to the closer, door or frame in the event of an abrupt stop
