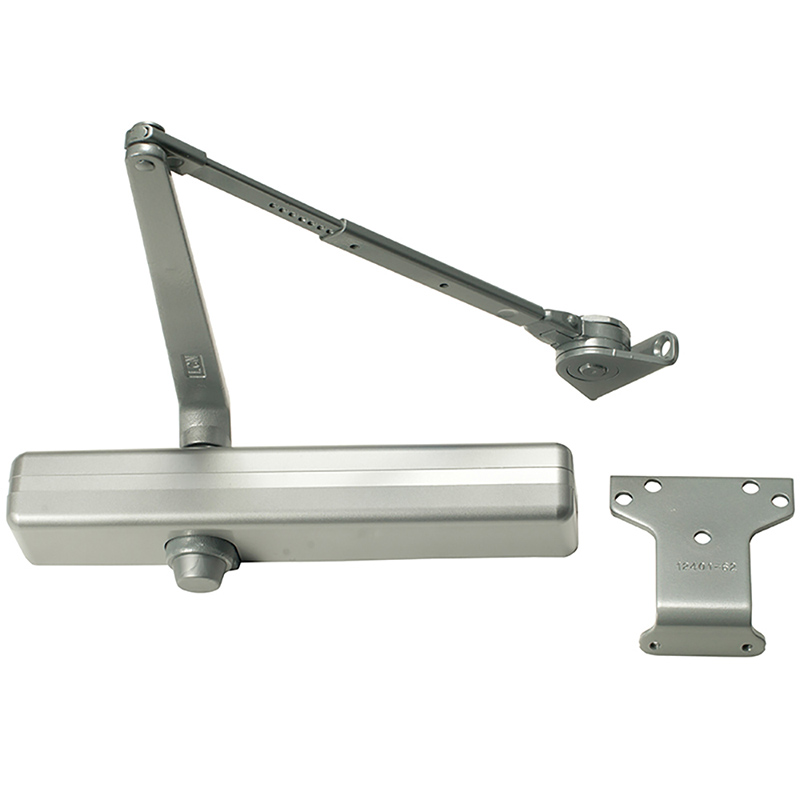

LCN 1461-HW/PA 689 AL Surface Closer

LCN 1461-HW/PA 689 Surface Closer AL offers exceptional performance and versatility for both commercial and institutional applications. This Grade 1 tri-mount surface closer features a durable cast iron body and a slim plastic cover, ensuring both strength and aesthetics. Designed for push or pull side installation, it accommodates a 180-degree swing with a double lever arm friction hold open mechanism, providing seamless operation. With a fully adjustable spring strength ranging from sizes 1 to 6, the LCN 1461 is tailored to suit various door sizes and conditions, making it ideal for environments requiring dependable access control. The closer is engineered for quick and accurate installation, supported by a stick-on template that significantly reduces labor time. Key features include independent adjustment valves for backcheck, closing, and latching speeds, all concealed to prevent tampering. The Cush-N-Stop® function protects both the closer and the door from damage during abrupt stops. Meeting ADA requirements and available in a matte silver finish, this closer also boasts a 30-year limited warranty, underscoring its long-lasting quality and reliability. The LCN 1461-HW/PA is the perfect choice for professionals seeking a robust and efficient door closer solution.

Surface Closer AL

Grade 1 Tri Mount Surface Closer, Push or Pull Side, Double Lever Arm Friction Hold Open, Hold Open, Slim Plastic Cover, 180 Deg. Swing, With Parallel Arm Bracket, Aluminum Painted Finish, Non-Handed

The LCN 1460 Series is designed for maximum versatility, available with multiple cover options, it can be used for both commercial and institutional applications. This Grade 1 closer features a cast iron body with a full compliment bearing, 1-1/4 In. diameter piston, 3/4 In. diameter single heat treated pinion journal and all weather fluid. Spring size is adjustable from size 1 to 6.

Universal medium-duty closer designed for maximum versatility that installs quickly and accurately.

The LCN 1460 Series is available with multiple cover options, can be used for both commercial and institutional applications. This fully universal closer offers a wide variety of options and new fast and accurate installation.

• Standard 1460 series closer shipped with regular arm, a slim line plastic cover, and self reaming and tapping screws
• Multiple cover options include; Standard (Slim line), Full and Designer Series
• Non-sized (1-6) cylinder is adjustable for interior doors to 5’0” and exterior doors to 4’0”
• Closer mounts hinge side, top jamb and parallel arm on either right or left swinging doors
• Closer meets ADA requirements
• Standard or optional custom powder coat finish. Optional plated finish on Designer Series metal cover, arm and fasteners
• Optional SRI primer for installations in corrosive conditions

1461 Series Features

• Universal, fully reversible, non-handed door closer
• Closer cylinder constructed of high strength cast iron for increased durability
• Tested to 2,000,000 cycles
• Fully adjustable 1-6 spring strength to suit door size and site conditions
• Factory set to strength 3
• Standard closer offers 3 installation options
  • Regular (pull side)
  • Top jamb (push side)
  • Parallel arm (push side)
• Independent adjustment valves for adjusting backcheck, closing and latching speeds
• All adjustment valves are concealed behind the cover to prevent tampering
• Joints in arms and shoe brackets adapt to uneven mounting surfaces
• Stick-on template for fast, accurate installation. Cuts installation time in half
• Closers installed according to LCN installation instructions require minimal periodic maintenance or adjustments
• Cush-N-Stop® function has a built in stop incorporated into the arm to prevent damage to the closer, door or frame in the event of an abrupt stop
