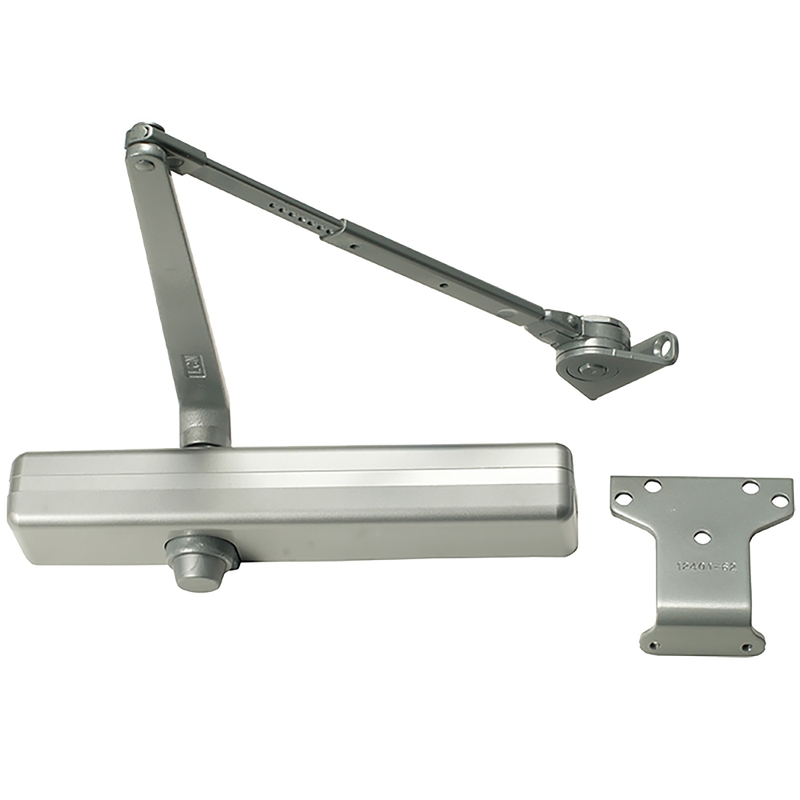

LCN 1461-Hw/PA 689 DEL Surface Closer ALLCN 1461-Hw/PA 689 DEL Surface Closer AL offers an exceptional blend of durability and versatility, ideal for both commercial and institutional applications. This Grade 1 tri-mount surface closer features a robust cast iron body and is designed for easy installation, fitting hinge side, top jamb, or parallel arm configurations on either right or left swinging doors. The closer includes a double lever arm with friction hold open capability and a slim plastic cover, making it aesthetically pleasing while ensuring functionality. It accommodates a 180-degree swing and is adjustable from spring sizes 1 to 6, allowing for customization to suit various door sizes and site conditions. With independent adjustment valves, you can effortlessly control backcheck, closing, and latching speeds, all while keeping the adjustments concealed for tamper resistance. Notably, the Cush-N-Stop® function protects the closer, door, and frame from damage during abrupt stops. The LCN 1461 also meets ADA requirements, providing accessibility without compromising on performance. Available in a matte silver finish, this closer comes with a 30-year limited warranty, ensuring long-lasting reliability. Upgrade your door hardware with the dependable LCN 1461-Hw/PA for enhanced security and convenience.
Surface Closer AL
Grade 1 Tri Mount Surface Closer, Push or Pull Side, Double Lever Arm Friction Hold Open, Hold Open, Slim Plastic Cover, 180 Deg. Swing, With Parallel Arm Bracket, Delayed Action, Aluminum Painted Finish, Non-Handed
The LCN 1460 Series is designed for maximum versatility, available with multiple cover options, it can be used for both commercial and institutional applications. This Grade 1 closer features a cast iron body with a full compliment bearing, 1-1/4 In. diameter piston, 3/4 In. diameter single heat treated pinion journal and all weather fluid. Spring size is adjustable from size 1 to 6.
Universal medium-duty closer designed for maximum versatility that installs quickly and accurately.
The LCN 1460 Series is available with multiple cover options, can be used for both commercial and institutional applications. This fully universal closer offers a wide variety of options and new fast and accurate installation.
- Standard 1460 series closer shipped with regular arm, a slim line plastic cover, and self reaming and tapping screws
- Multiple cover options include; Standard (Slim line), Full and Designer Series
- Non-sized (1-6) cylinder is adjustable for interior doors to 5’0” and exterior doors to 4’0”
- Closer mounts hinge side, top jamb and parallel arm on either right or left swinging doors
- Closer meets ADA requirements
- Standard or optional custom powder coat finish. Optional plated finish on Designer Series metal cover, arm and fasteners
- Optional SRI primer for installations in corrosive conditions
1461 Series Features
- Universal, fully reversible, non-handed door closer
- Closer cylinder constructed of high strength cast iron for increased durability
- Tested to 2,000,000 cycles
- Fully adjustable 1-6 spring strength to suit door size and site conditions
- Factory set to strength 3
- Standard closer offers 3 installation options
- Regular (pull side)
- Top jamb (push side)
- Parallel arm (push side)
- Independent adjustment valves for adjusting backcheck, closing and latching speeds
- All adjustment valves are concealed behind the cover to prevent tampering
- Joints in arms and shoe brackets adapt to uneven mounting surfaces
- Stick-on template for fast, accurate installation. Cuts installation time in half
- Closers installed according to LCN installation instructions require minimal periodic maintenance or adjustments
- Cush-N-Stop® function has a built in stop incorporated into the arm to prevent damage to the closer, door or frame in the event of an abrupt stop
Attributes
Manufacturer surcharge: $ 13.98
Baa Qualified: Yes
Base Material: Varies
Cold Weather Fluid: Yes
Commercial Residential: Commercial
Cover: Slim Plastic
Degree Hold Open: 180 Deg.
Degree Swing: 180 Deg.
Finish: 689/US28
Finish Family: Matte Silver
Grade: Grade 1
Handing: Non-Handed
Hold Open: Yes
Installation: Commercial
Limited Warranty: 30 Years
Mounting Group: Hydraulic
Mounting Location: Push or Pull Side
Mounting Style: Tri Mount
Pack Qty: 1
Pbs Options: 220307137
Series: 1460 Series Surface Mounted Closers
Ship Weight: 11 lbs.
Subtype: Surface Closers
Type: Surface
Unit of Measure: Each
