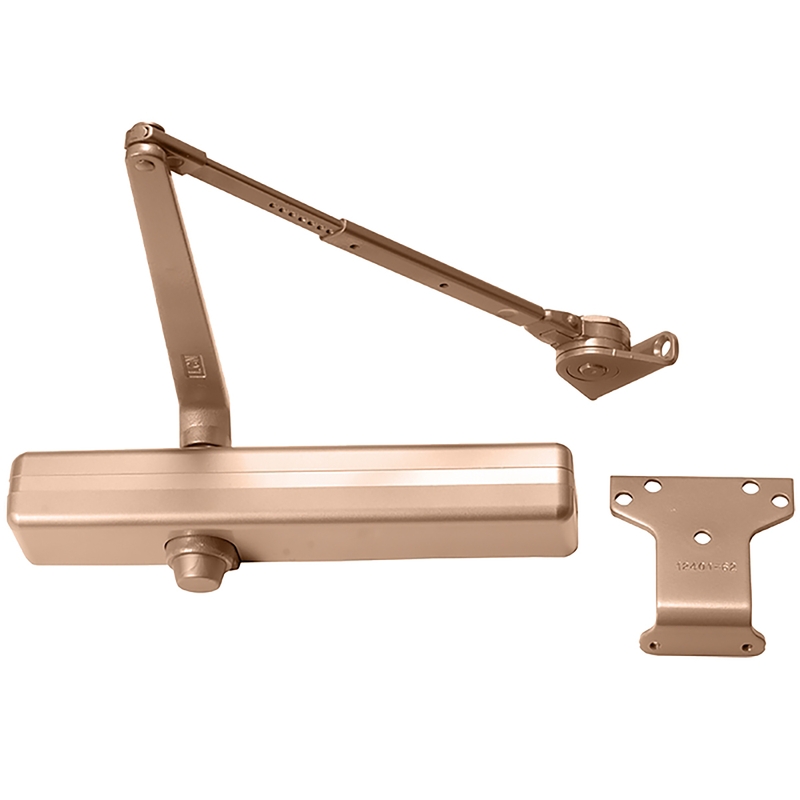

LCN 1461-Hw/PA 691 Surface Closer LTBRZ

LCN 1461-Hw/PA 691 Surface Closer LTBRZ combines durability and versatility, making it an ideal choice for commercial and institutional applications. This Grade 1 tri-mount surface closer features a robust cast iron body and a double lever arm friction hold open, allowing for a 180-degree swing. With its light bronze painted finish and slim plastic cover, it not only looks professional but also performs exceptionally well. Designed for quick and accurate installation, the LCN 1461 is non-handed and adjustable for spring sizes ranging from 1 to 6, catering to various door sizes and site conditions. It supports multiple mounting styles, including regular (pull side), top jamb (push side), and parallel arm (push side), ensuring compatibility with various door setups. The closer is factory set to strength 3 but can be easily adjusted as needed. Additional features include independent adjustment valves for backcheck, closing, and latching speeds, all concealed behind the cover for tamper resistance. With a Cush-N-Stop® function to protect against abrupt stops and a 30-year limited warranty, the LCN 1461-Hw/PA is designed to provide long-lasting performance and minimal maintenance. Choose the LCN 1461 for a dependable door closer that meets ADA requirements and enhances your building's accessibility.

Surface Closer LTBRZ

Grade 1 Tri Mount Surface Closer, Push or Pull Side, Double Lever Arm Friction Hold Open, Hold Open, Slim Plastic Cover, 180 Deg. Swing, With Parallel Arm Bracket, Light Bronze Painted Finish, Non-Handed

The LCN 1460 Series is designed for maximum versatility, available with multiple cover options, it can be used for both commercial and institutional applications. This Grade 1 closer features a cast iron body with a full compliment bearing, 1-1/4 In. diameter piston, 3/4 In. diameter single heat treated pinion journal and all weather fluid. Spring size is adjustable from size 1 to 6.

Universal medium-duty closer designed for maximum versatility that installs quickly and accurately.

The LCN 1460 Series is available with multiple cover options, can be used for both commercial and institutional applications. This fully universal closer offers a wide variety of options and new fast and accurate installation.

• Standard 1460 series closer shipped with regular arm, a slim line plastic cover, and self reaming and tapping screws
• Multiple cover options include; Standard (Slim line), Full and Designer Series
• Non-sized (1-6) cylinder is adjustable for interior doors to 5’0” and exterior doors to 4’0”
• Closer mounts hinge side, top jamb and parallel arm on either right or left swinging doors
• Closer meets ADA requirements
• Standard or optional custom powder coat finish. Optional plated finish on Designer Series metal cover, arm and fasteners
• Optional SRI primer for installations in corrosive conditions

1461 Series Features

• Universal, fully reversible, non-handed door closer
• Closer cylinder constructed of high strength cast iron for increased durability
• Tested to 2,000,000 cycles
• Fully adjustable 1-6 spring strength to suit door size and site conditions
• Factory set to strength 3
• Standard closer offers 3 installation options
  • Regular (pull side)
  • Top jamb (push side)
  • Parallel arm (push side)
• Independent adjustment valves for adjusting backcheck, closing and latching speeds
• All adjustment valves are concealed behind the cover to prevent tampering
• Joints in arms and shoe brackets adapt to uneven mounting surfaces
• Stick-on template for fast, accurate installation. Cuts installation time in half
• Closers installed according to LCN installation instructions require minimal periodic maintenance or adjustments
• Cush-N-Stop® function has a built in stop incorporated into the arm to prevent damage to the closer, door or frame in the event of an abrupt stop
