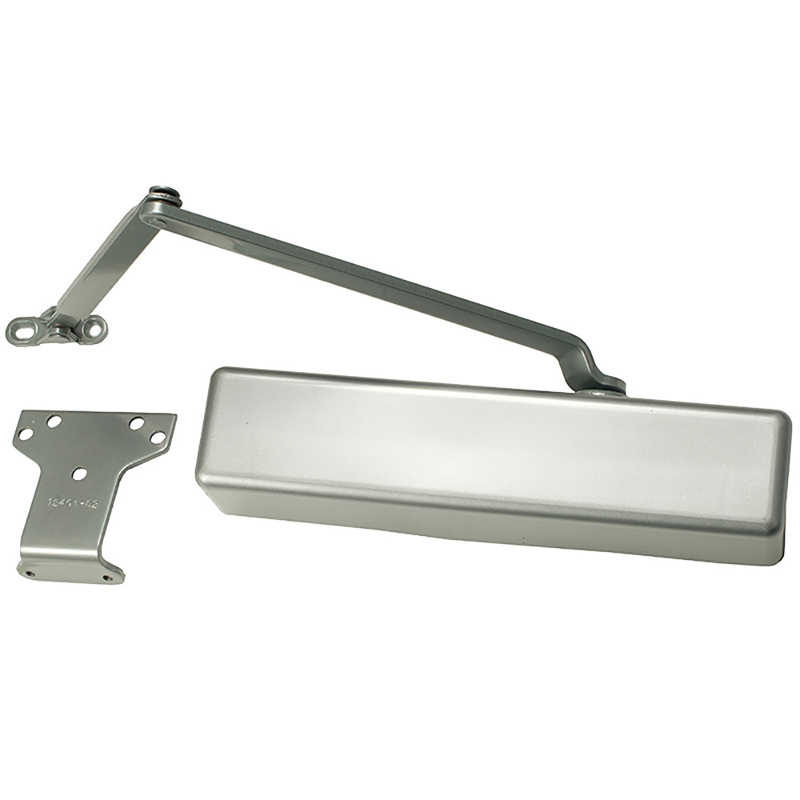

LCN 1461-RW/PA 689 SRI AL Surface CloserLCN 1461-RW/PA 689 SRI Surface Closer AL is a reliable Grade 1 tri-mount surface closer, designed to enhance accessibility in both commercial and institutional environments. Featuring a robust cast iron body and a full complement bearing, this closer ensures durability and longevity, capable of withstanding up to 2,000,000 cycles. Its adjustable spring size, ranging from 1 to 6, accommodates doors up to 5’0" for interiors and 4’0" for exteriors, making it versatile for various door sizes. This model includes a slim plastic cover and a parallel arm bracket, allowing for seamless installation on either push or pull sides. The 180-degree swing provides ample clearance, while independent adjustment valves enable precise control over closing and latching speeds. The Cush-N-Stop® function adds an extra layer of protection, preventing damage from abrupt stops. Designed for quick, accurate installation, the LCN 1461 comes with stick-on templates and self-reaming screws, cutting installation time in half. With options for standard, full, and designer covers, this surface closer meets ADA requirements and is available with a special rust inhibitor for installations in corrosive conditions. Experience the perfect blend of functionality and aesthetic with the LCN 1461-RW/PA.
Surface Closer AL
Grade 1 Tri Mount Surface Closer, Push or Pull Side, Double Lever Arm Regular, Slim Plastic Cover, 180 Deg. Swing, Special Rust Inhibitor, With Parallel Arm Bracket, Aluminum Painted Finish, Non-Handed
The LCN 1460 Series is designed for maximum versatility, available with multiple cover options, it can be used for both commercial and institutional applications. This Grade 1 closer features a cast iron body with a full compliment bearing, 1-1/4 In. diameter piston, 3/4 In. diameter single heat treated pinion journal and all weather fluid. Spring size is adjustable from size 1 to 6.
Universal medium-duty closer designed for maximum versatility that installs quickly and accurately.
The LCN 1460 Series is available with multiple cover options, can be used for both commercial and institutional applications. This fully universal closer offers a wide variety of options and new fast and accurate installation.
- Standard 1460 series closer shipped with regular arm, a slim line plastic cover, and self reaming and tapping screws
- Multiple cover options include; Standard (Slim line), Full and Designer Series
- Non-sized (1-6) cylinder is adjustable for interior doors to 5’0” and exterior doors to 4’0”
- Closer mounts hinge side, top jamb and parallel arm on either right or left swinging doors
- Closer meets ADA requirements
- Standard or optional custom powder coat finish. Optional plated finish on Designer Series metal cover, arm and fasteners
- Optional SRI primer for installations in corrosive conditions
1461 Series Features
- Universal, fully reversible, non-handed door closer
- Closer cylinder constructed of high strength cast iron for increased durability
- Tested to 2,000,000 cycles
- Fully adjustable 1-6 spring strength to suit door size and site conditions
- Factory set to strength 3
- Standard closer offers 3 installation options
- Regular (pull side)
- Top jamb (push side)
- Parallel arm (push side)
- Independent adjustment valves for adjusting backcheck, closing and latching speeds
- All adjustment valves are concealed behind the cover to prevent tampering
- Joints in arms and shoe brackets adapt to uneven mounting surfaces
- Stick-on template for fast, accurate installation. Cuts installation time in half
- Closers installed according to LCN installation instructions require minimal periodic maintenance or adjustments
- Cush-N-Stop® function has a built in stop incorporated into the arm to prevent damage to the closer, door or frame in the event of an abrupt stop
Attributes
Manufacturer surcharge: $ 0.0
Baa Qualified: Yes
Base Material: Varies
Cold Weather Fluid: Yes
Commercial Residential: Commercial
Cover: Slim Plastic
Degree Hold Open: 180 Deg.
Degree Swing: 180 Deg.
Finish: 689/US28
Finish Family: Matte Silver
Grade: Grade 1
Handing: Non-Handed
Hold Open: No
Installation: Commercial
Limited Warranty: 30 Years
Mounting Group: Hydraulic
Mounting Location: Push or Pull Side
Mounting Style: Tri Mount
Pack Qty: 1
Pbs Options: 4404199
Series: 1460 Series Surface Mounted Closers
Ship Weight: 11 lbs.
Special Rust Inhibitor: Yes
Subtype: Surface Closers
Type: Surface
Unit of Measure: Each
