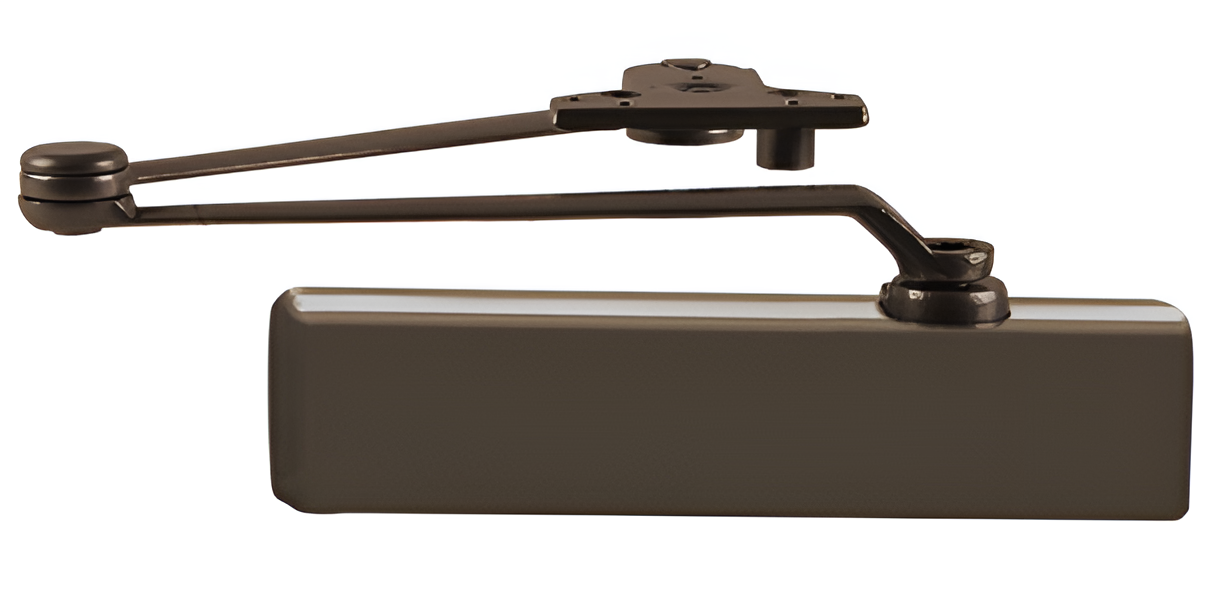

LCN 1461-SHCUSH-DKBRZ Medium Duty Door Closer, Cast Iron, ADA Adjustable, Dark Bronze, Grade 1

LCN Closers 1461-SHCUSH-DKBRZ Medium Duty Door Closer is engineered for versatility and reliability in commercial and institutional settings. Crafted from durable cast iron, this surface-mounted closer features a spring cush-n-stop arm that enhances door control while meeting ANSI/BHMA A156.4 grade 1 and ADA compliance standards. The design includes a slim line plastic cover finished in a sleek dark bronze powder coat, ensuring a stylish yet robust appearance. This closer is adjustable from spring sizes 1 to 6, allowing for tailored closing force to suit various door weights and usage conditions. The patented LCN green dial simplifies spring power adjustments, eliminating guesswork for installers. It is UL and cUL listed for self-closing doors without hold-open functionality, providing peace of mind in safety applications. Installation is made efficient with LCN’s peel-n-stick templates, and the included TBSRT screw pack ensures secure mounting. This product is equipped with a heat-treated steel pinion journal and all-weather fluid, enhancing its performance in diverse environments. With a 30-year limited warranty, the LCN 1461-SHCUSH-DKBRZ offers both durability and long-term value for your door closing needs.

Medium Duty Door Closer, Cast Iron, Surface Mount, Spring Cush-N-Stop Arm, Slim Line Plastic Cover, ADA Adjustable Size 1-6, Grade 1, TBSRT Screw Pack, 695/DKBRZ Dark Bronze Powder Coat

The 1460 series is a universal medium-duty closer designed for maximum versatility in commercial and institutional applications, meeting ANSI/BHMA A156.4 grade 1 and ADA reduced opening force requirements. It installs quickly, accurately and offers a variety of options. It is cUL and UL listed for self-closing doors without hold-open and boasts a 30-year limited warranty. Features include a slim line plastic cover, with optional plated finish on the cover, the arm and the fasteners. LCN peel-n-stick templates ensure quick and accurate installation, and the patented LCN green dial takes the guesswork out of spring power adjustments.

Features:

• Heat-treated steel pinion journal
• All-weather fluid
• LCN patented green dial spring power indicator
• 30-year warranty
• Universal non-handed
• Peel-n-stick template and standard slim line plastic cover
• Adjustable spring sizes 1-6

Specifications:

• Certifications: Grade 1 - ANSI A156.4, UL 10C, ADA, 100 hour salt spray, meets BAA - buy American Act
• Body construction:
• Cast iron body
• Full complement bearing
• 1-1/4" diameter piston
• 3⁄4" diameter single heat treated pinion journal
• Fluid: All weather
• Templating: Peel-n-stick templates - 1" x 7-1⁄2" mounting hole pattern
• Size: Adjustable spring size 1-6 (includes patented green dial)
• Cover: Slim line plastic, standard, full plastic and metal designer series, optional
• Fasteners: Self reaming and tapping screws (SRT)
• Mounting: Hinge (pull side), top jamb (push side), parallel arm (push side)

Optional Arms:

• 1460-3077: Regular Arm (REGARM)
• Non-handed
• Mounts hinge side or top jamb
• P1460 closer includes PA shoe, 1460-62PA required for parallel arm mounting
• 1460-3077L: Long Arm (LONG)
• Non-handed
• Includes long rod and shoe, 1460-79LR for top jamb mount with deep reveals
• Optional
• 1460-3077HD: Heavy Duty Arm (HD)
• Non-handed
• Mounts hinge side, top jamb or parallel arm
• Optional
• 1460-3077HDL: Heavy Duty Long Arm (HDLONG)
• Non-handed
• Includes long rod and shoe, 1460-79LR for top jamb mounts with deep reveals
• Optional
• 1460-3049: Hold Open Arm (H)
• Non-handed
• Mounts hinge side, top jamb or parallel arm (62PA required)
• Hold-open adjustable at shoe
• Optional
• 1460-3049L: Hold Open Long Arm (HLONG)
• Non-handed
• Includes long head and tube, 1460- 3048L for top jamb mount with deep reveals
• Optional
• 1460-3077EDA: Extra Duty Arm (EDA)
• Non-handed
• Features solid forged steel main and forearm for potentially abusive installations
• Optional 1460-3077EDA/62G for blade stop clearance
• 1460-3077EDA/62G: Extra Duty Arm with 62G Thick Hub Shoe (EDAW62G)
• Non-handed
• Features solid forged steel main and forearm for potentially abusive installations
• 1460-3049EDA: Hold Open Extra Duty Arm (HEDA)
• Handed
• Provides hold open function adjustable at shoe
• Optional
• 1460-3077CNS: Cush-n-Stop Arm (CUSH)
• Non-handed
• Features solid forged steel main arm and forearm with stop in soffit shoe
• Optional
• 1460-3049CNS: Hold Cush-n-Stop Arm (HCUSH)
• Non-handed
• Provides hold open function with templated stop/hold open points
• Handle controls hold open function
• Optional
• 1460-3077SCNS: Spring Cush-n-Stop Arm (SCUSH)
• Non-handed
• For abusive applications features solid forged steel main arm and forearm with spring loaded stop in the soffit shoe
• Optional
• 1460-3049SHCNS: Spring Hold Open Cush-n-Stop Arm (SHCUSH)
• Non-handed
• For abusive applications features solid forged steel main arm and forearm with spring loaded stop in the soffit shoe
• Handle controls hold open function
• Optional

Finishes:

• 689 - Aluminum
• 690 - Statuary bronze
• 691 - Light bronze
• 693 - Black
• 695 - Dark bronze
• 696 - Brass
