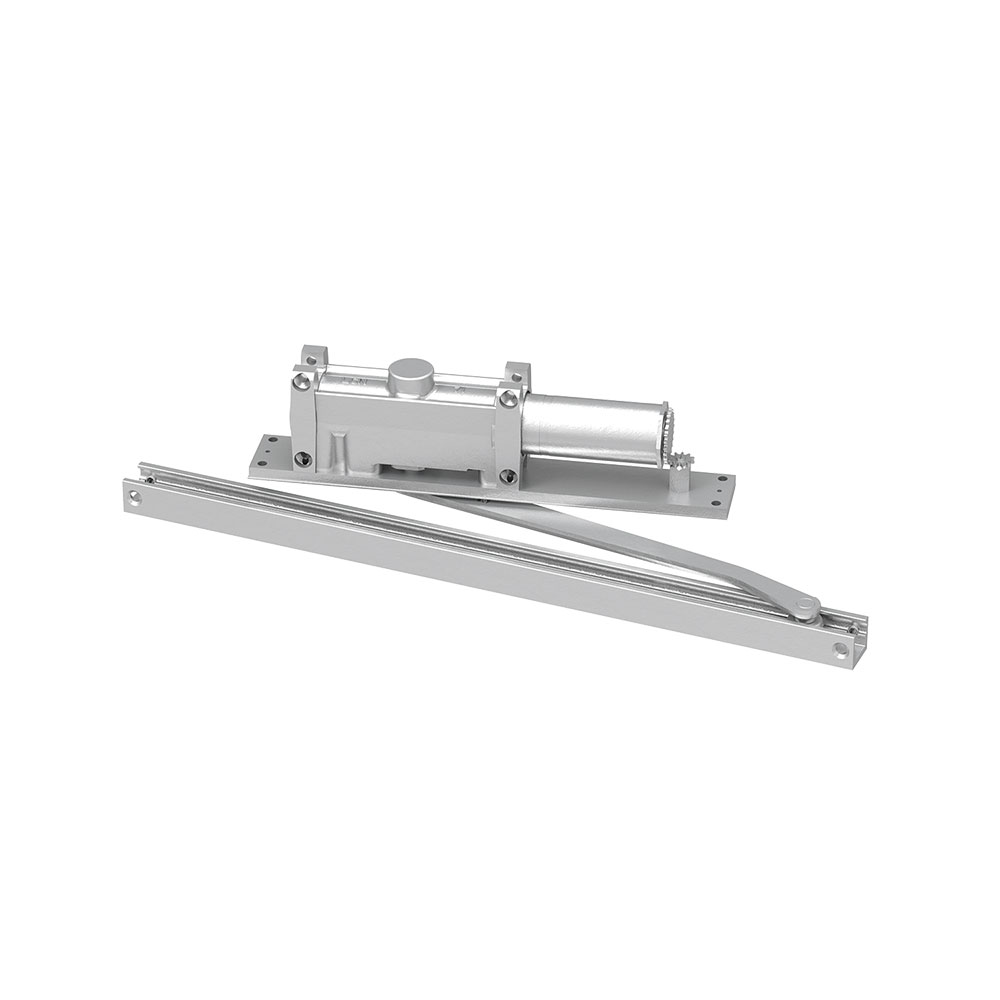

LCN 2015-3071 LH 689 STD Cylinder Assembly AL

LCN 2015-3071 LH 689 STD Cylinder Assembly AL is a premium standard cylinder assembly designed for left-handed applications, boasting a robust aluminum construction. This assembly is an integral part of the renowned 2010 Series by LCN, known for its concealed heavy-duty closers that seamlessly blend into a variety of door styles. Engineered for smooth and quiet door control, the single lever arm and roller assembly ensure reliable performance in both commercial and residential settings. The 2015-3071 is suited for interior doors up to 5’0" and exterior doors up to 4’0", making it versatile for different configurations. Its adaptability extends to aluminum, hollow metal, and wood doors, with a minimum requirement of a 4" x 4" tube for aluminum frames. This cylinder assembly meets ADA requirements, ensuring accessibility in commercial spaces. It ships with a standard arm, track, and a complete hardware pack, and offers optional features such as custom powder coat finishes and a plated finish for fasteners. Designed for header mounting, it comes with a 15-year limited warranty, underscoring LCN’s commitment to quality and durability. Upgrade your door hardware with LCN’s reliable and stylish solution.

STD Cylinder Assembly AL

Standard Cylinder Assembly, Left Hand, Aluminum

The 2010 Series by LCN is a concealed heavy duty closer.

The 2010 Series is designed to provide complete concealment. The single lever arm and roller assembly provide smooth, quiet door control and the choice of finishes and track functions meet virtually all architectural requirements.

• Standard 2010 series closer shipped with standard arm, standard track, metal finish plate and wood and machine screw pack
• Sized cylinders for interior doors to 5’0” and exterior doors to 4’0”
• Handed for right or left swinging doors
• For aluminum, hollow metal, or wood, doors and frames
• Aluminum frame requires minimum 4” x 4” (102 mm) tube
• Closers to meet ADA requirements
• Standard or optional custom powder coat finish
• Optional plated finish on arm, fasteners and finish plate
• Optional SRI primer for installations in corrosive conditions
