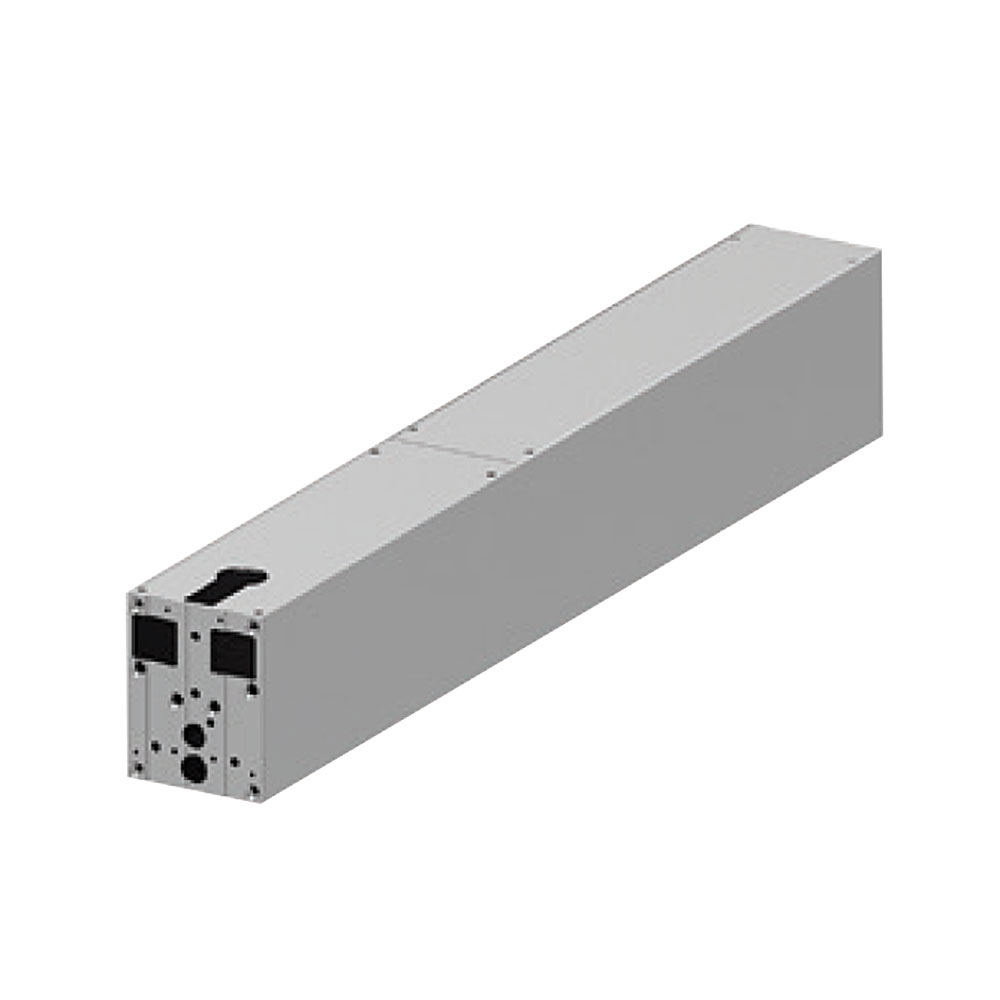

LCN 2810-3572HL/S 36 628 Header Assembly with Stop Preparation, ANCLR

LCN 2810-3572HL/S 36 628 Header Assembly with Stop Prep ANCLR is designed to enhance accessibility and convenience in commercial spaces. This 36-inch header assembly features an aluminum anodized finish, ensuring durability and a sleek aesthetic. As part of the 2810 Series, this two-in-one swing door operator meets ADA compliance requirements and is ideal for facilities requiring both manual and automatic door operation. When activated, the 2810 SENIOR SWING opens doors automatically for wheelchair access, while still allowing for manual operation for pedestrian traffic. The assembly is shipped complete with a motor gearbox, control box, arm, bottom pivot, header, and necessary mounting hardware, making installation straightforward. It accommodates single doors and offers adjustable hold open periods ranging from 1 to 32 seconds in both automatic and manual modes. This product is handed and features options for fixed or breakaway stops with a center pivot arm. The 2810 Series is a Grade 1 unit, certified under ANSI A156.19, and comes with a limited 2-year warranty. Whether you're upgrading an existing door or installing new hardware, the LCN 2810-3572HL/S provides a reliable, accessible solution for modern commercial environments.

Header Assem w/Stop Prep ANCLR

2810 Series Header Assembly with Stop Prep, 36", Aluminum Anodized Finish

The 2810 SENIOR SWING by LCN is an ADA Door Operator That is a Two-in-One Swing Door Operator. SENIOR SWING Operator When Activated, Opens Doors Automatically for Wheelchair Access, Yet Allows for Manual Operation for Regular Pedestrian Traffic.

The 2810 Series is a senior swing and ADA compliant operator from LCN.

The 2810 Series is a two-in-one swing door operator that when activated, opens doors automatically for wheelchair access, yet allows for manual operation for regular pedestrian traffic.

• 2810 series operator is shipped with motor gearbox, control box, arm, bottom pivot, header, and mounting hardware. Actuators available separately.
• Single door, overhead concealed.
• Meets ADA, requirements (power mode only).
• Handed product.
• 36” header length is standard. Specify length 33” to 49” max.
• Double door header available up to 98”, specify length 49” to 98” max. Consult factory regarding this option.
• Fixed or breakaway stop available with center pivot arm.
• Adjustable hold open period of 1 to 32 seconds in automatic or manual mode.
