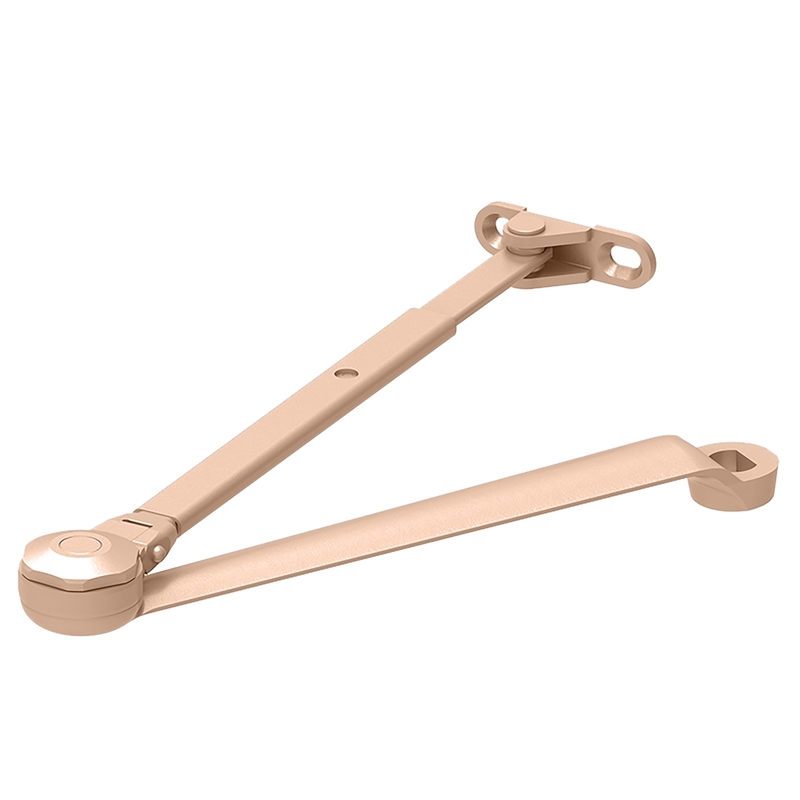

LCN 4010-3049 LH 691 Hold Open Arm - Light Bronze

LCN 4010-3049 LH 691 Hold Open Arm LIGHT BZ is a robust solution designed for high-traffic institutional environments. This left-handed hold open arm features a sleek light bronze finish, making it an excellent choice for both functionality and aesthetics. Engineered specifically for demanding applications, the 4010 Series closers are surface-mounted and offer a modern design that ensures easy installation and superior performance. The standard model comes equipped with a regular arm, standard plastic cover, and self-reaming tapping screws for added convenience. It is suitable for interior doors up to 5'0" and exterior doors up to 4'0", with a non-sized adjustable option for more flexibility. The closer is UL and cUL listed, certified under ANSI Standard A156.4, Grade 1, and meets ADA requirements, making it a reliable choice for commercial settings. It can be installed on hinge sides and is available with optional corner brackets. With the option for custom powder coat finishes and plated metal covers, the 4010 Series can be tailored to fit any door aesthetic. Choose the LCN 4010-3049 for a durable, efficient, and stylish door closing solution that stands up to the rigors of everyday use.

Hold Open Arm LIGHT BZ

Hold Open Arm, Left Hand, Light Bronze

The 4010 is the best performing heavy duty closer designed specifically for institutional and other rugged high traffic applications.

The Surface mounted 4000 Series LCN closers feature a very modern design engineered for each application, easy installation, and superior performance and are designed for high traffic settings.

• Standard 4010 series closer is shipped with regular arm, standard plastic cover, and self reaming and tapping screws. See Options tab for options.
• Sized cylinders for interior doors to 5’0” and exterior doors to 4’0”.
• Non-sized cylinder (4011) adjustable for interior doors to 4’6” and exterior doors to 3’6”.
• Closer mounts hinge side, specify right or left swinging door.
• Corner brackets available. See Options tab for options.
• 4011 cylinder meets ADA requirements.
• Standard or optional custom powder coat finish.
• Optional plated finish on metal cover, arm and fasteners.
• Optional SRI primer for installations in corrosive conditions is available with powder coat only.
• The 4010 Series is UL and cUL listed with regular or fusible link arms for self-closing doors.
• Tested and certified under ANSI Standard A156.4, Grade 1.

Resources

• 4010 Series Surface Mounted Closers Cut Sheet
• LCN 4000 Series Catalog
• LCN 4010 Series Cut Sheet
• LCN 4010 Series Installation Instructions
• LCN 4010, 4010T, 4510, 4510T Drop Plate Installation Instructions
• LCN 4010, 4020 & 4110 Door Closer w/ Fusible Link Arm Installation Guide
• LCN 4011 Closer Installation Video
• LCN Closers & Auto Operators Installation Guide
• LCN Closers & Automatic Operators Parts Manual
• Von Duprin Finishes Chart
