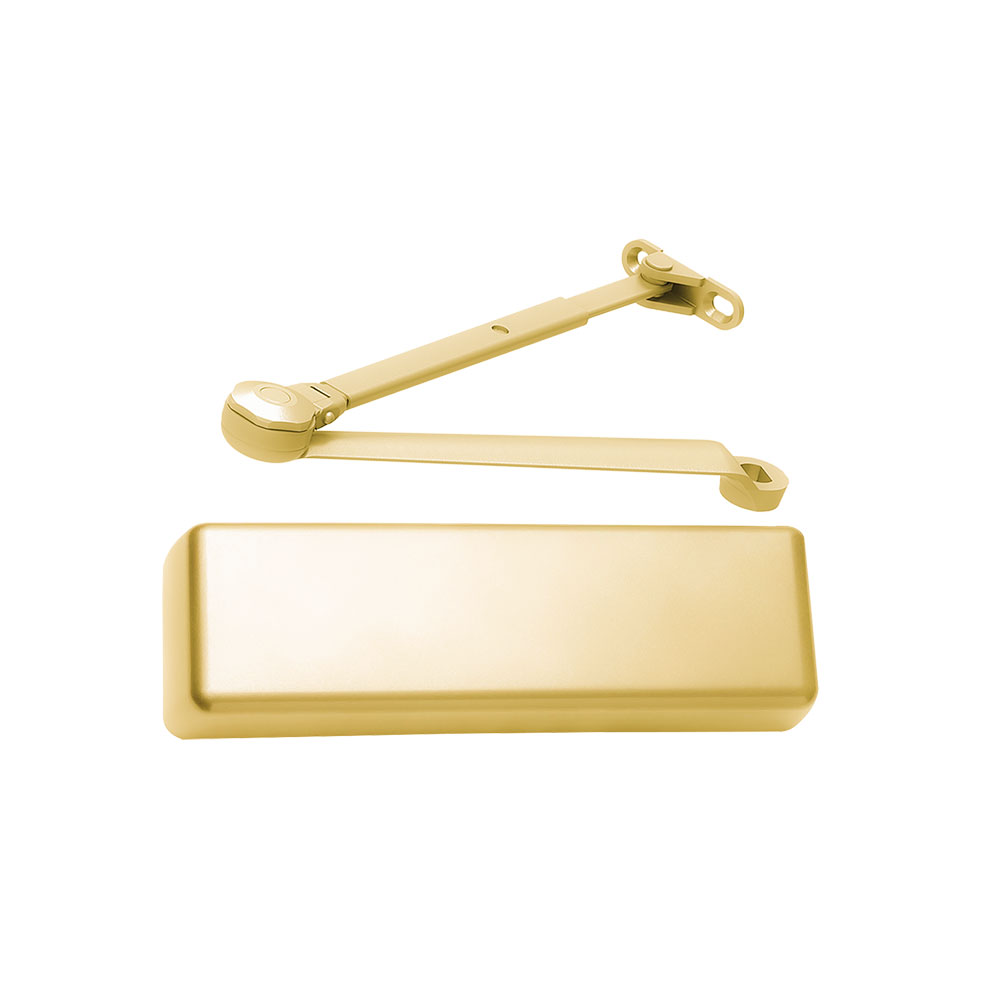

LCN 4011-FL LH 696 Heavy-Duty Brass Surface Closer

LCN 4011-FL LH 696 Heavy Duty Surface Closer in Brass offers unparalleled performance for institutional and high-traffic environments. This fusible link arm door closer is expertly designed for left-handed installations, ensuring accessibility and compliance with ADA requirements. Built to withstand the rigors of daily use, the 4010 Series is ideal for both interior doors up to 4'6" and exterior doors up to 3'6". Featuring a modern surface-mounted design, this closer not only enhances aesthetics but also simplifies installation. The standard model comes equipped with a regular arm, a durable full plastic cover, and includes self-reaming and tapping screws for a hassle-free setup. It is available in a stylish matte brass finish (696/US4), which can be complemented by optional plated finishes for added elegance. The 4011 is UL and cUL listed, ensuring it meets rigorous safety standards. With a 140-degree hold-open capability, it provides flexibility in high-traffic areas. A limited warranty of 30 years underscores the durability and reliability of this product. Designed for commercial applications, the LCN 4011-FL is a robust choice for those seeking quality and performance in door hardware.

HeavyDuty Surface Closer BRASS

Fusible Link Arm Door Closer, Left Hand, Brass

The 4010 is LCN's best performing heavy duty surface door closer designed for institutional and other high traffic applications.

The 4010 is the best performing heavy duty closer designed specifically for institutional and other rugged high traffic applications.

The Surface mounted 4000 Series LCN closers feature a very modern design engineered for each application, easy installation, and superior performance and are designed for high traffic settings.

• Standard 4010 series closer is shipped with regular arm, standard plastic cover, and self reaming and tapping screws. See Options tab for options.
• Sized cylinders for interior doors to 5’0” and exterior doors to 4’0”.
• Non-sized cylinder (4011) adjustable for interior doors to 4’6” and exterior doors to 3’6”.
• Closer mounts hinge side, specify right or left swinging door.
• Corner brackets available. See Options tab for options.
• 4011 cylinder meets ADA requirements.
• Standard or optional custom powder coat finish.
• Optional plated finish on metal cover, arm and fasteners.
• Optional SRI primer for installations in corrosive conditions is available with powder coat only.
• The 4010 Series is UL and cUL listed with regular or fusible link arms for self-closing doors.
• Tested and certified under ANSI Standard A156.4, Grade 1.

Resources

• 4010 Series Surface Mounted Closers Cut Sheet
• LCN 4000 Series Catalog
• LCN 4010 Series Cut Sheet
• LCN 4010 Series Installation Instructions
• LCN 4010, 4010T, 4510, 4510T Drop Plate Installation Instructions
• LCN 4010, 4020 & 4110 Door Closer w/ Fusible Link Arm Installation Guide
• LCN 4011 Closer Installation Video
• LCN Closers & Auto Operators Installation Guide
• LCN Closers & Automatic Operators Parts Manual
• Von Duprin Finishes Chart
