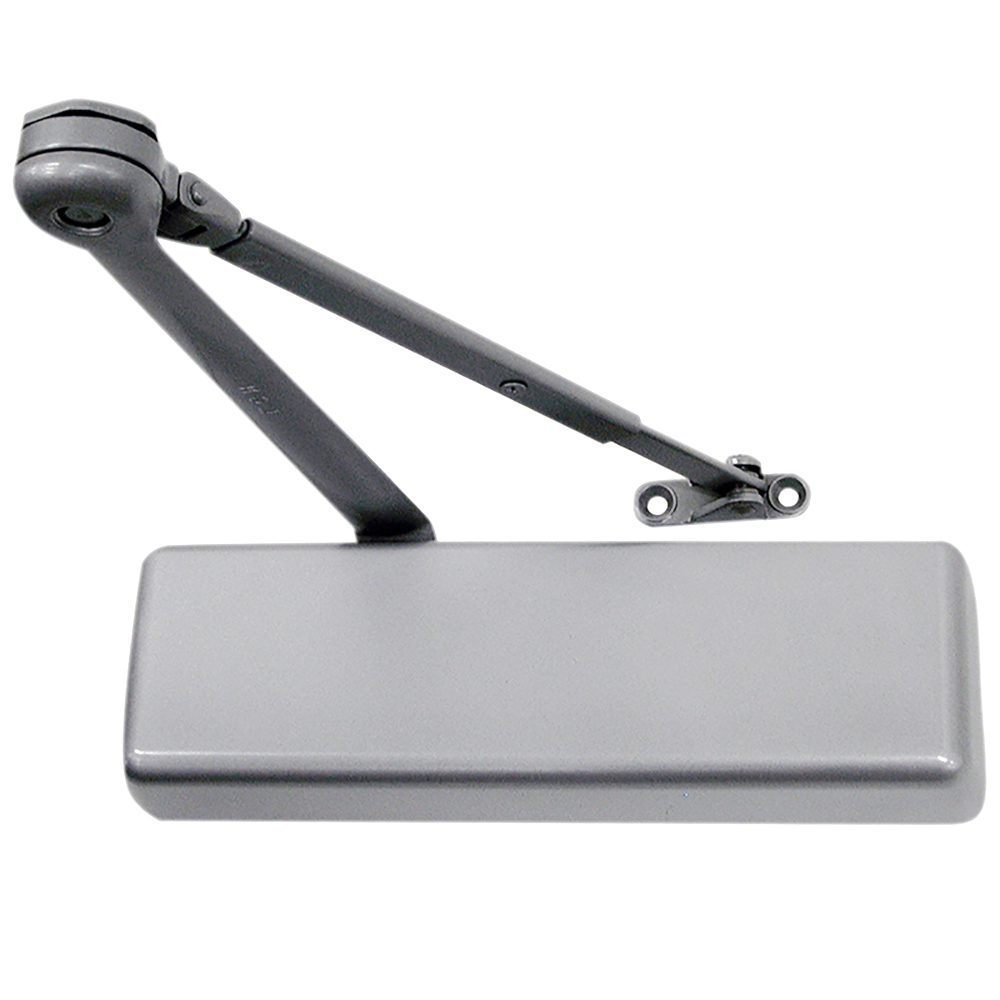

LCN 4011-H RH 689 MC Heavy Duty Surface Door Closer AL

LCN 4011-H RH 689 MC Heavy Duty Surface Closer AL is designed for high-traffic environments, making it an ideal choice for institutional settings. This hold-open arm door closer features a robust metal cover and is specifically configured for right-handed doors, ensuring seamless integration into your space. Engineered for superior performance, the 4011 model boasts a sleek design that complements any architectural style while providing reliability you can trust. This surface-mounted closer is adjustable for interior doors up to 4’6" and exterior doors up to 3’6", catering to various door sizes. It meets ADA requirements, ensuring accessibility for all users. With a degree hold open of 140 degrees, it offers flexibility in door operation, while the full metal cover provides durability and an attractive matte silver finish (689/US28). The LCN 4011 is UL and cUL listed and tested to ANSI Standard A156.4, Grade 1, assuring you of its quality and safety. It also comes with a 30-year limited warranty, reflecting LCN's commitment to longevity and performance. Optional finishes and specialized primers for corrosive environments are available, making it a versatile choice for any commercial installation. Trust LCN to deliver reliability and style in your door hardware solutions.

Heavy Duty Surface Closer AL

Hold Open Arm Door Closer, Metal Cover, Right Hand, Aluminum

The 4010 is LCN's best performing heavy duty surface door closer designed for institutional and other high traffic applications.

The 4010 is the best performing heavy duty closer designed specifically for institutional and other rugged high traffic applications.

The Surface mounted 4000 Series LCN closers feature a very modern design engineered for each application, easy installation, and superior performance and are designed for high traffic settings.

• Standard 4010 series closer is shipped with regular arm, standard plastic cover, and self reaming and tapping screws. See Options tab for options.
• Sized cylinders for interior doors to 5’0” and exterior doors to 4’0”.
• Non-sized cylinder (4011) adjustable for interior doors to 4’6” and exterior doors to 3’6”.
• Closer mounts hinge side, specify right or left swinging door.
• Corner brackets available. See Options tab for options.
• 4011 cylinder meets ADA requirements.
• Standard or optional custom powder coat finish.
• Optional plated finish on metal cover, arm and fasteners.
• Optional SRI primer for installations in corrosive conditions is available with powder coat only.
• The 4010 Series is UL and cUL listed with regular or fusible link arms for self-closing doors.
• Tested and certified under ANSI Standard A156.4, Grade 1.

Resources

• 4010 Series Surface Mounted Closers Cut Sheet
• LCN 4000 Series Catalog
• LCN 4010 Series Cut Sheet
• LCN 4010 Series Installation Instructions
• LCN 4010, 4010T, 4510, 4510T Drop Plate Installation Instructions
• LCN 4010, 4020 & 4110 Door Closer w/ Fusible Link Arm Installation Guide
• LCN 4011 Closer Installation Video
• LCN Closers & Auto Operators Installation Guide
• LCN Closers & Automatic Operators Parts Manual
• Von Duprin Finishes Chart
