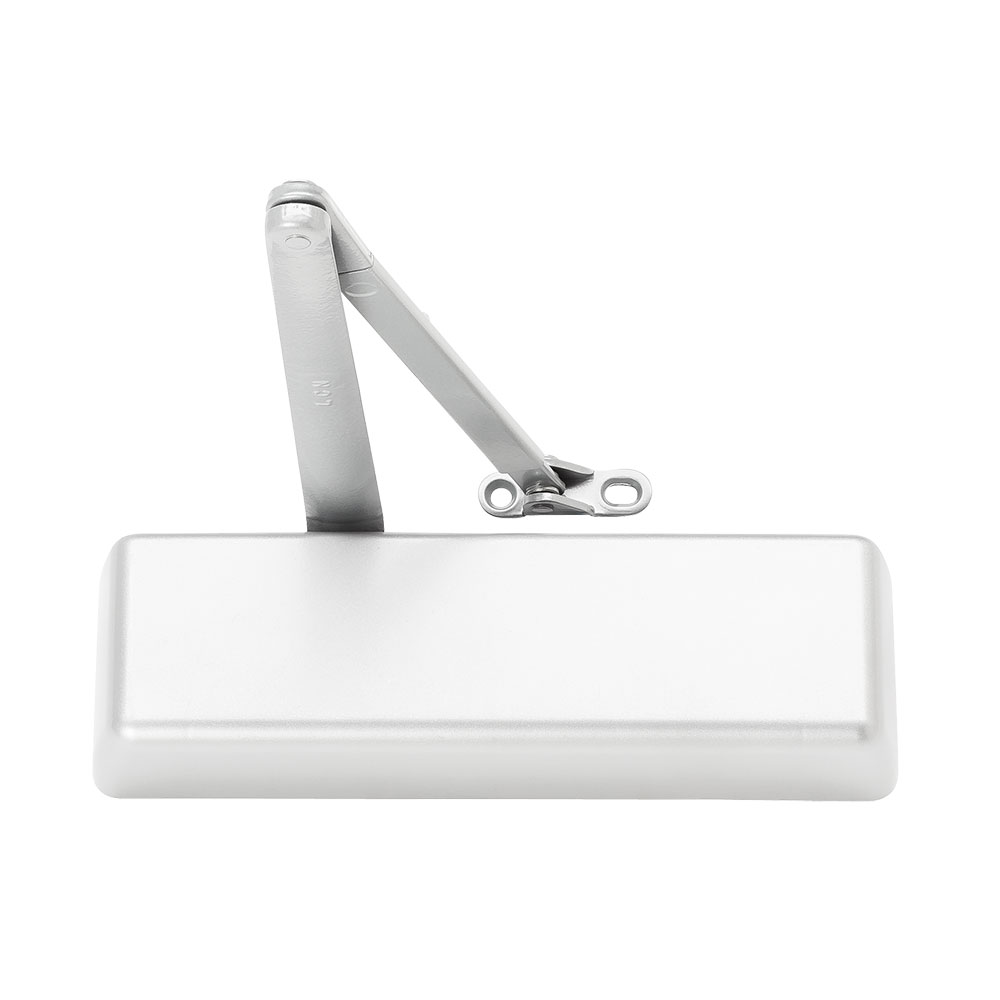

LCN 4011-REG LH 651 Heavy Duty Surface Closer US26

LCN 4011-REG LH 651 Heavy Duty Surface Closer US26 offers exceptional performance for institutional and high-traffic environments. Designed specifically for robust applications, this surface-mounted closer enhances both functionality and aesthetics with its sleek metal cover in bright chrome. The regular arm design is suitable for left-handed doors and comes equipped with a standard plastic cover, ensuring ease of installation. This closer is adjustable for interior doors up to 4’6" and exterior doors up to 3’6", accommodating various entryways. Notably, the 4011 cylinder meets ADA requirements, making it a reliable choice for accessible spaces. Constructed to withstand heavy usage, the LCN 4010 Series is UL and cUL listed, meeting the rigorous ANSI Standard A156.4, Grade 1 certification. The closer features a degree swing of 140 degrees, providing ample clearance for seamless passage. Optional custom powder coat finishes and plated options allow for additional customization to match building aesthetics. With a limited 30-year warranty and cold weather fluid compatibility, the LCN 4011 is built to last. Corner brackets and various installation options are available, ensuring this closer meets the specific needs of your project while delivering superior performance and durability.

Heavy Duty Surface Closer US26

Regular Arm Door Closer, Metal Cover, Left Hand, Bright Chrome

The 4010 is LCN's best performing heavy duty surface door closer designed for institutional and other high traffic applications.

The 4010 is the best performing heavy duty closer designed specifically for institutional and other rugged high traffic applications.

The Surface mounted 4000 Series LCN closers feature a very modern design engineered for each application, easy installation, and superior performance and are designed for high traffic settings.

• Standard 4010 series closer is shipped with regular arm, standard plastic cover, and self reaming and tapping screws. See Options tab for options.
• Sized cylinders for interior doors to 5’0” and exterior doors to 4’0”.
• Non-sized cylinder (4011) adjustable for interior doors to 4’6” and exterior doors to 3’6”.
• Closer mounts hinge side, specify right or left swinging door.
• Corner brackets available. See Options tab for options.
• 4011 cylinder meets ADA requirements.
• Standard or optional custom powder coat finish.
• Optional plated finish on metal cover, arm and fasteners.
• Optional SRI primer for installations in corrosive conditions is available with powder coat only.
• The 4010 Series is UL and cUL listed with regular or fusible link arms for self-closing doors.
• Tested and certified under ANSI Standard A156.4, Grade 1.
