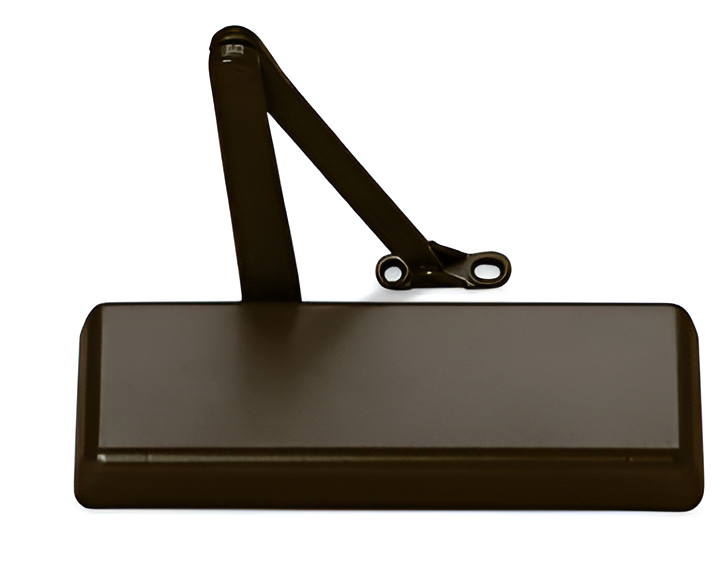

LCN 4011-REGARM-DKBRZ-LH Heavy Duty Cast Iron Door Closer, Left Hand, ADA Adjustable, Dark Bronze

LCN Closers 4011-REGARM-DKBRZ-LH Heavy Duty Door Closer combines durability and functionality, making it an ideal choice for high-traffic installations. Constructed from cast iron, this surface-mounted closer is designed for left-handed doors and features a regular arm for pull side mounting. Its adjustable spring size ranges from 1 to 5, allowing for precise control and compliance with ADA requirements. Meeting ANSI/BHMA Grade 1 standards and UL listed, this closer is built to withstand rigorous use, backed by a substantial 30-year warranty. The all-weather fluid ensures reliable operation in various conditions, while the LCN patented Green Dial spring power indicator simplifies adjustments, eliminating guesswork. The 4011-REGARM model includes a plastic cover as standard, with optional metal finishes available for enhanced aesthetics. Installation is straightforward, thanks to peel-and-stick templates that accommodate a 2-1/2" x 6" mounting hole pattern, and it comes with self-reaming and tapping screws for secure attachment. With its robust construction, extensive certifications, and user-friendly features, the LCN Closers 4011-REGARM-DKBRZ-LH is a dependable solution for commercial and residential applications alike, ensuring safety and convenience without compromising on style.

Heavy Duty Door Closer, Cast Iron, Surface Mount, Left Hand, Regular Arm for Pull Side Mount, ADA Adjustable Size 1-5, Grade 1, TBSRT Screw Pack, 695/DKBRZ Dark Bronze Powder Coat

The 4010, 4020 and 4110 series are heavy-duty closers that meet demands for high-traffic installations, and each are designed specifically for unique mounting applications. They are UL and cUL listed, meet ANSI/BHMA grade 1 standards and boast 30-year warranties. They feature a standard plastic cover, with optional plated finishes for the cover, arm and fasteners. They also feature the LCN Green Dial spring power indicator, which takes the guesswork out of adjustment.

Features:

• Cast iron cylinder with full-complement bearing
• 1-1/2" diameter piston
• Double heat-treated steel pinion journal
• All-weather fluid
• LCN patented Green Dial spring power indicator
• 30-year warranty
• Application specific handed
• Standard plastic cover
• Adjustable spring sizes 1-5 or 6 only

Specifications:

• Certifications: Grade 1 - ANSI A156.4, UL 10C, ADA, 100 hour salt spray, meets BAA - buy American Act
• Body Construction:
• Cast iron body
• Full complement bearing
• 1-1⁄2" diameter piston
• 11⁄16" diameter double heat treated pinion journal
• Fluid: All weather fluid
• Handing: Handed
• Templating: Peel-n-Stick templates - 2-1⁄2" x 6" mounting hole pattern
• Size: Adjustable 1-5 or sized 6
• Cover: Plastic cover (PC), standard, metal cover (MC), optional
• Fasteners: Self reaming and tapping screws (SRT)
• Mounting: Hinge (Pull side)

Optional Arms:

• 4010-3077: Regular Arm (REGARM)
• Non-handed
• 4010-3049: Hold Open Arm (H)
• Handed
• Provides hold open function, adjustable at elbow
• Optional
• 4010-3049FL: Fusible Link Arm (FL)
• Handed
• Releases hold-open function when exposed to temperatures above 165° F; 1/8" (3 mm) maximum reveal
• Optional
• Note: Check local codes before specifying FL arms. Not A life safety product!

Finishes:

• 622 - Matte black
• 689 - Aluminum
• 690 - Statuary bronze
• 691 - Light bronze
• 693 - Gloss black
• 695 - Dark bronze
• 696 - Brass
