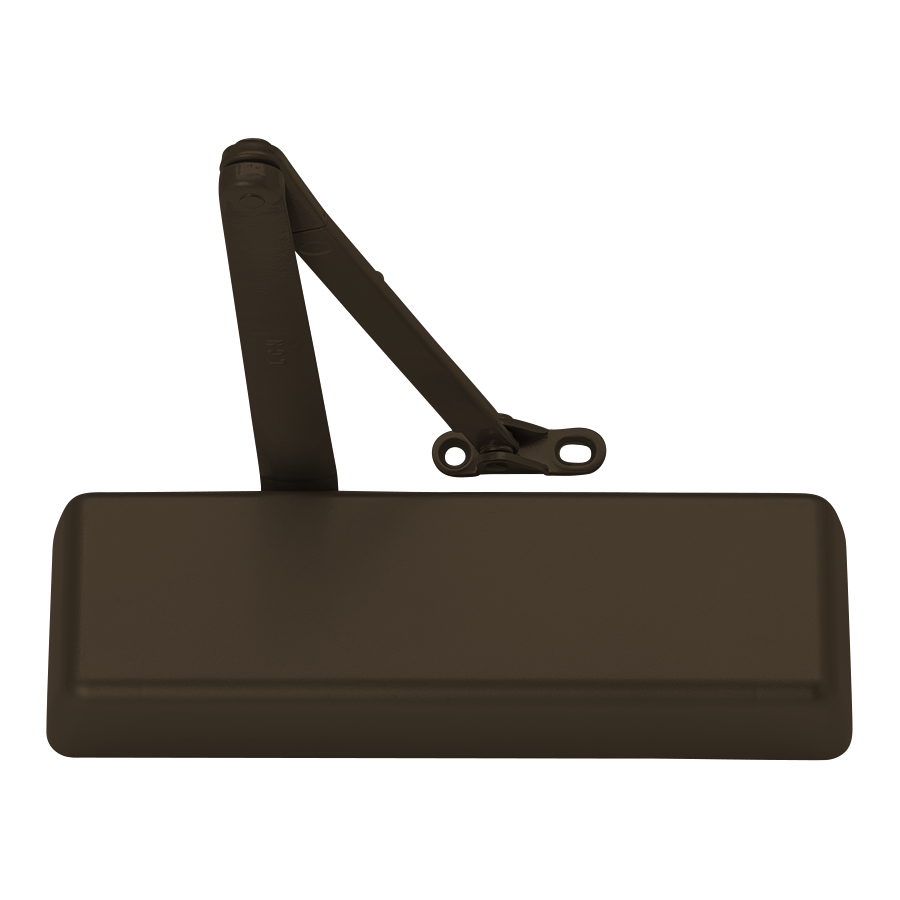

LCN 4011H-DKBRZ-LH Heavy Duty Cast Iron Door Closer, Left Hand, ADA Adjustable, Dark Bronze

LCN Closers 4011H-DKBRZ-LH Heavy Duty Door Closer is engineered for high-traffic environments, ensuring reliability and durability with its cast iron construction. This surface-mounted door closer features a left-hand hold open arm designed for regular pull side mounting, making it an ideal choice for various applications. With an adjustable size range of 1-5, it complies with ADA standards, ensuring accessibility for all users. Built to last, the 4011H-DKBRZ-LH is UL and cUL listed and meets ANSI/BHMA grade 1 standards, backed by a robust 30-year warranty. Its advanced design includes a full-complement bearing and a 1-1/2" diameter piston for smooth operation. The double heat-treated steel pinion journal enhances performance, while all-weather fluid guarantees reliable functionality in diverse conditions. The patented LCN Green Dial spring power indicator simplifies adjustments, eliminating guesswork. Installation is effortless with peel-n-stick templates and self-reaming screws included in the TBSRT screw pack. Available in an attractive dark bronze powder coat finish, the 4011H-DKBRZ-LH adds a touch of sophistication to any door. Choose LCN for dependable door control that meets the demands of your high-traffic space with confidence.

Heavy Duty Door Closer, Cast Iron, Surface Mount, Left Hand, Hold Open Arm for Regular Pull Side Mount, ADA Adjustable Size 1-5, Grade 1, TBSRT Screw Pack, 695/DKBRZ Dark Bronze Powder Coat

The 4010, 4020 and 4110 series are heavy-duty closers that meet demands for high-traffic installations, and each are designed specifically for unique mounting applications. They are UL and cUL listed, meet ANSI/BHMA grade 1 standards and boast 30-year warranties. They feature a standard plastic cover, with optional plated finishes for the cover, arm and fasteners. They also feature the LCN Green Dial spring power indicator, which takes the guesswork out of adjustment.

Features:

• Cast iron cylinder with full-complement bearing
• 1-1/2" diameter piston
• Double heat-treated steel pinion journal
• All-weather fluid
• LCN patented Green Dial spring power indicator
• 30-year warranty
• Application specific handed
• Standard plastic cover
• Adjustable spring sizes 1-5 or 6 only

Specifications:

• Certifications: Grade 1 - ANSI A156.4, UL 10C, ADA, 100 hour salt spray, meets BAA - buy American Act
• Body Construction:
• Cast iron body
• Full complement bearing
• 1-1⁄2" diameter piston
• 11⁄16" diameter double heat treated pinion journal
• Fluid: All weather fluid
• Handing: Handed
• Templating: Peel-n-Stick templates - 2-1⁄2" x 6" mounting hole pattern
• Size: Adjustable 1-5 or sized 6
• Cover: Plastic cover (PC), standard, metal cover (MC), optional
• Fasteners: Self reaming and tapping screws (SRT)
• Mounting: Hinge (Pull side)

Optional Arms:

• 4010-3077: Regular Arm (REGARM)
• Non-handed
• 4010-3049: Hold Open Arm (H)
• Handed
• Provides hold open function, adjustable at elbow
• Optional
• 4010-3049FL: Fusible Link Arm (FL)
• Handed
• Releases hold-open function when exposed to temperatures above 165° F; 1/8" (3 mm) maximum reveal
• Optional
• Note: Check local codes before specifying FL arms. Not A life safety product!

Finishes:

• 622 - Matte black
• 689 - Aluminum
• 690 - Statuary bronze
• 691 - Light bronze
• 693 - Gloss black
• 695 - Dark bronze
• 696 - Brass
