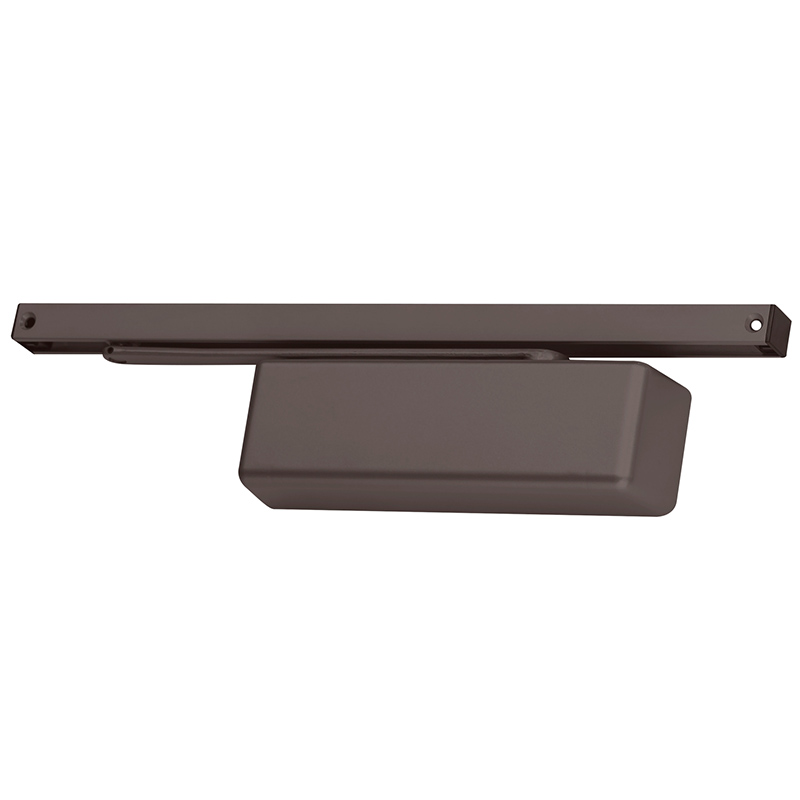

LCN 4011T-STD LH 695 Heavy Duty DKBRZ Track Closer

LCN 4011T-STD LH 695 Heavy Duty Track Closer DKBRZ is engineered for high-performance in institutional and high-traffic applications. This left-handed door closer offers durability and reliability, ensuring smooth operation for both interior and exterior doors. With its robust design, the 4010T series meets ANSI/BHMA Grade 1 standards and is UL and cUL listed, providing peace of mind in demanding environments. The 4011 model features a non-sized cylinder adjustable for interior doors up to 4’6" and exterior doors up to 3’6", making it a versatile choice for various installations. It mounts on the hinge side and includes options for corner brackets to accommodate unique door configurations. The standard plastic cover can be complemented with optional plated finishes, enhancing the closer's aesthetic appeal in any setting. Additionally, the LCN Green Dial spring force indicator simplifies adjustments, ensuring optimal performance without guesswork. Designed with cold-weather fluid capabilities, this closer can withstand harsh conditions, making it suitable for diverse climates. With a 30-year limited warranty, the LCN 4011T-STD LH offers long-lasting value and reliability for commercial applications.

Heavy Duty Track Closer DKBRZ

Standard Track Door Closer, Left Hand, Dark Bronze

The 4010T is LCN's best performing heavy duty surface track door closer designed for institutional and other high traffic applications.

The 4010T is LCN’s best performing heavy duty closer designed specifically for institutional and other rugged high traffic applications.

The 4010, 4020 and 4110 Series are heavy-duty closers that meet demands for high-traffic installations and each are designed specifically for unique mounting applications. They are UL and cUL listed, meet ANSI/BHMA Grade 1 standards and boast 30-year warranties. They feature a standard plastic cover, with optional plated finishes for the cover, arm and fasteners. They also feature the LCN Green Dial spring force indicator, which takes the guesswork out of adjustment.

• The 4010 Series mounts hinge pull side.
• Sized cylinders for interior doors to 5’0” and exterior doors to 4’0”.
• Non-sized cylinder (4011) adjustable for interior doors to 4’6” and exterior doors to 3’6”.
• Closer mounts hinge side, specify right or left swinging door.
• Corner brackets available. See Options tab for options.
• 4011 cylinder meets ADA requirements.
• Standard or optional custom powder coat finish.
• Optional plated finish on metal cover, arm and fasteners.
• Optional SRI primer for installations in corrosive conditions is available with powder coat only.
• The 4010 Series is UL and cUL listed with regular or fusible link arms for self-closing doors.
• Tested and certified under ANSI Standard A156.4, Grade 1.

Resources

• 4010T Series Surface Mounted Closers Cut Sheet
• LCN 4000 Series Catalog
• LCN 4010 Series Cut Sheet
• LCN 4010, 4010T, 4510, 4510T Drop Plate Installation Instructions
• LCN 4010T Installation Instructions
• LCN Closers & Auto Operators Installation Guide
• LCN Closers & Automatic Operators Parts Manual
• Von Duprin Finishes Chart
