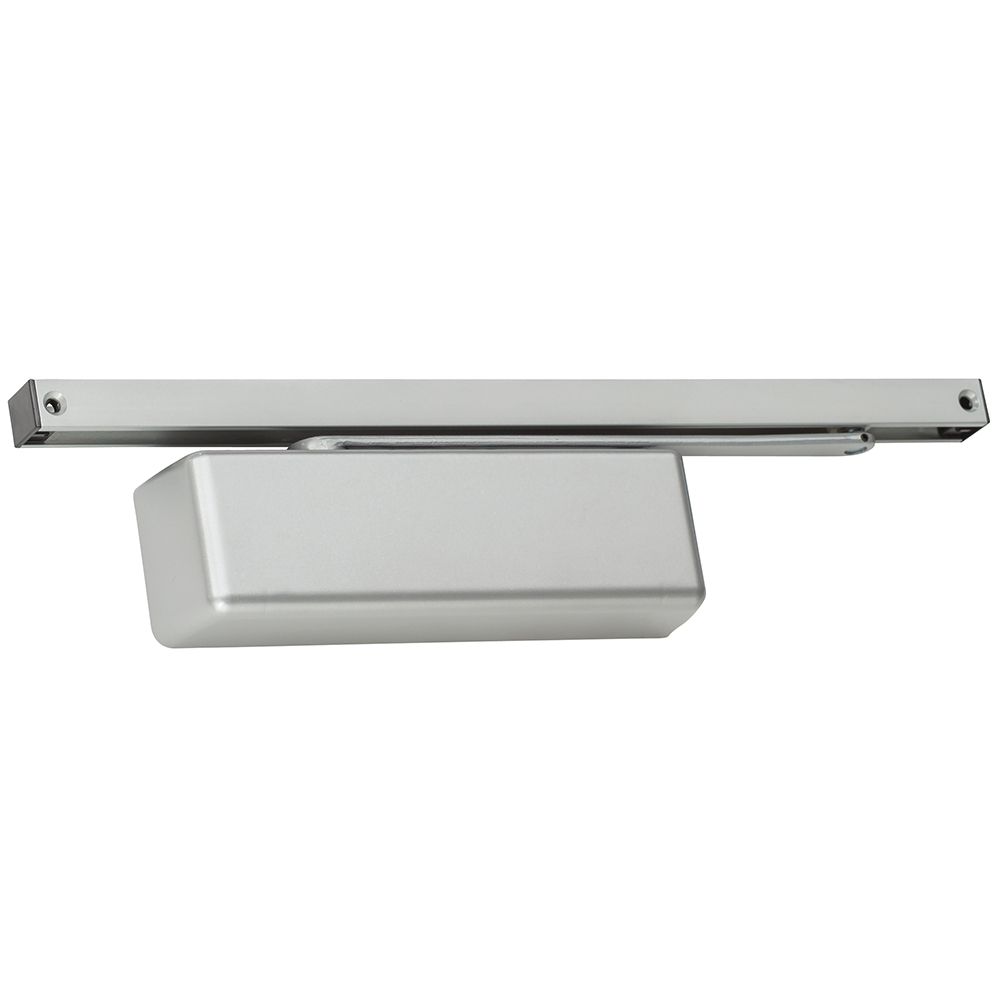

LCN 4014T-H RH 689 Heavy-Duty Track Closer AL

LCN 4014T-H RH 689 Heavy Duty Track Closer AL offers robust performance tailored for institutional and high-traffic environments. Designed specifically for demanding applications, this hold-open track door closer is engineered to handle the rigors of daily use with ease. With its right-hand configuration and durable aluminum construction, it ensures long-lasting reliability. The 4010T Series features a standard plastic cover, with options for plated finishes on the cover, arm, and fasteners, allowing you to customize the aesthetic to fit your needs. It mounts on the hinge pull side and is UL and cUL listed, meeting ANSI/BHMA Grade 1 standards. Additionally, its 30-year warranty reflects the manufacturer’s confidence in its quality and durability. The closer accommodates interior doors up to 5’0" and exterior doors up to 4’0". Its adjustable non-sized cylinder variant (4011) is suitable for interior doors up to 4’6" and exterior doors up to 3’6". With a degree hold open of 120 degrees and the LCN Green Dial spring force indicator for easy adjustments, this closer is as user-friendly as it is functional. Whether for commercial installations or rigorous daily use, the LCN 4014T-H is an invaluable choice for your door hardware needs.

Heavy Duty Track Closer AL

Hold Open Track Door Closer, Right Hand, Aluminum

The 4010T is LCN's best performing heavy duty surface track door closer designed for institutional and other high traffic applications.

The 4010T is LCN’s best performing heavy duty closer designed specifically for institutional and other rugged high traffic applications.

The 4010, 4020 and 4110 Series are heavy-duty closers that meet demands for high-traffic installations and each are designed specifically for unique mounting applications. They are UL and cUL listed, meet ANSI/BHMA Grade 1 standards and boast 30-year warranties. They feature a standard plastic cover, with optional plated finishes for the cover, arm and fasteners. They also feature the LCN Green Dial spring force indicator, which takes the guesswork out of adjustment.

• The 4010 Series mounts hinge pull side.
• Sized cylinders for interior doors to 5’0” and exterior doors to 4’0”.
• Non-sized cylinder (4011) adjustable for interior doors to 4’6” and exterior doors to 3’6”.
• Closer mounts hinge side, specify right or left swinging door.
• Corner brackets available. See Options tab for options.
• 4011 cylinder meets ADA requirements.
• Standard or optional custom powder coat finish.
• Optional plated finish on metal cover, arm and fasteners.
• Optional SRI primer for installations in corrosive conditions is available with powder coat only.
• The 4010 Series is UL and cUL listed with regular or fusible link arms for self-closing doors.
• Tested and certified under ANSI Standard A156.4, Grade 1.

Resources

• 4010T Series Surface Mounted Closers Cut Sheet
• LCN 4000 Series Catalog
• LCN 4010 Series Cut Sheet
• LCN 4010, 4010T, 4510, 4510T Drop Plate Installation Instructions
• LCN 4010T Installation Instructions
• LCN Closers & Auto Operators Installation Guide
• LCN Closers & Automatic Operators Parts Manual
• Von Duprin Finishes Chart
