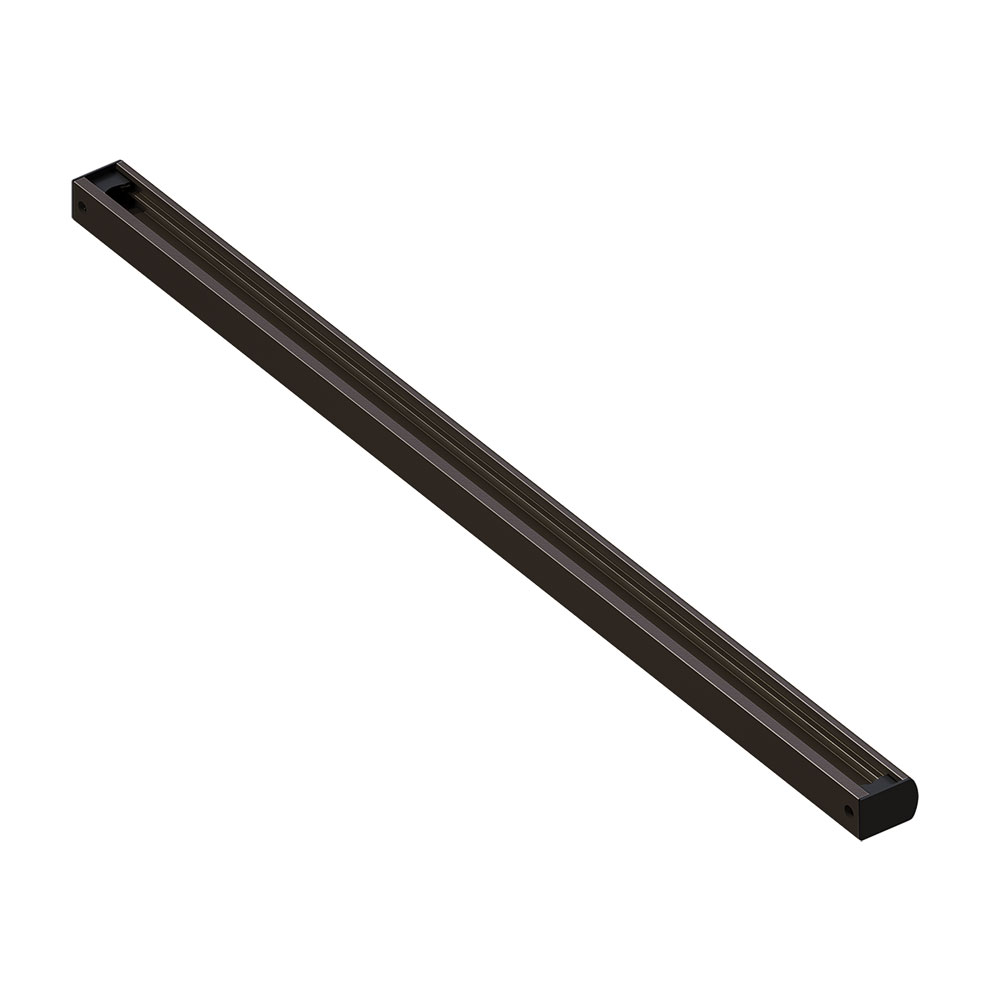

LCN 4030T-3038 695 Standard Track DKBRZ Hardware

LCN 4030T-3038 695 Standard Track DKBRZ is a robust non-handed track arm closer that excels in providing reliable door control for interior applications. Designed specifically for narrow head frames and top rails, this surface-mounted closer offers remarkable versatility with three mounting options, accommodating both right and left swinging doors. The LCN 4030T series features a non-sized 4031 cylinder, suitable for exterior doors up to 36" and interior doors reaching 48", making it an excellent choice for a variety of door sizes. It meets ADA requirements, ensuring accessibility for all users. Additionally, the closer is UL and cUL listed for self-closing doors without hold-open, adhering to the highest safety standards. Available in a standard dark bronze finish, the closer can also be customized with an optional powder coat or plated finish on the metal cover, arm, and fasteners. For installations in corrosive environments, an optional SRI primer is offered with the powder coat option. Each unit is tested and certified under ANSI Standard A156.4, Grade One, making the LCN 4030T-3038 a dependable solution for commercial settings. With its ease of installation and robust construction, this door closer integrates seamlessly into various environments, ensuring durability and performance.

Standard Track DKBRZ

Standard Track, Dark Bronze

The LCN 4030T series is a non-handed track arm, surface mounted closer designed for interior use on narrow head frames and top rails.

The 4030T series offers a choice of 3 mounting option and ease of installation for a versatile solution to door control.

• Non-sized (1-4) 4031 cylinder for exterior doors to 36” (914 mm) and interior doors to 48” (1219 mm)
• Closer mounts hinge side, top jamb, and parallel arm, on either right or left swinging doors
• Closer meets ADA requirements
• Standard or optional custom powder coat finish
• Optional plated finish on metal cover, arm and fasteners
• Optional SRI primer for installations in corrosive conditions is available with powder coat only
• The 4030 Series is UL and cUL listed for Self-closing doors without hold-open
• Tested and certified under ANSI Standard A156.4, grade one

Resources

• 4030T Series Surface Mounted Closers Cut Sheet
• LCN 4030 Series Cut Sheet
• LCN 4030T Installation Instructions
• LCN Closers & Auto Operators Installation Guide
• Von Duprin Finishes Chart
