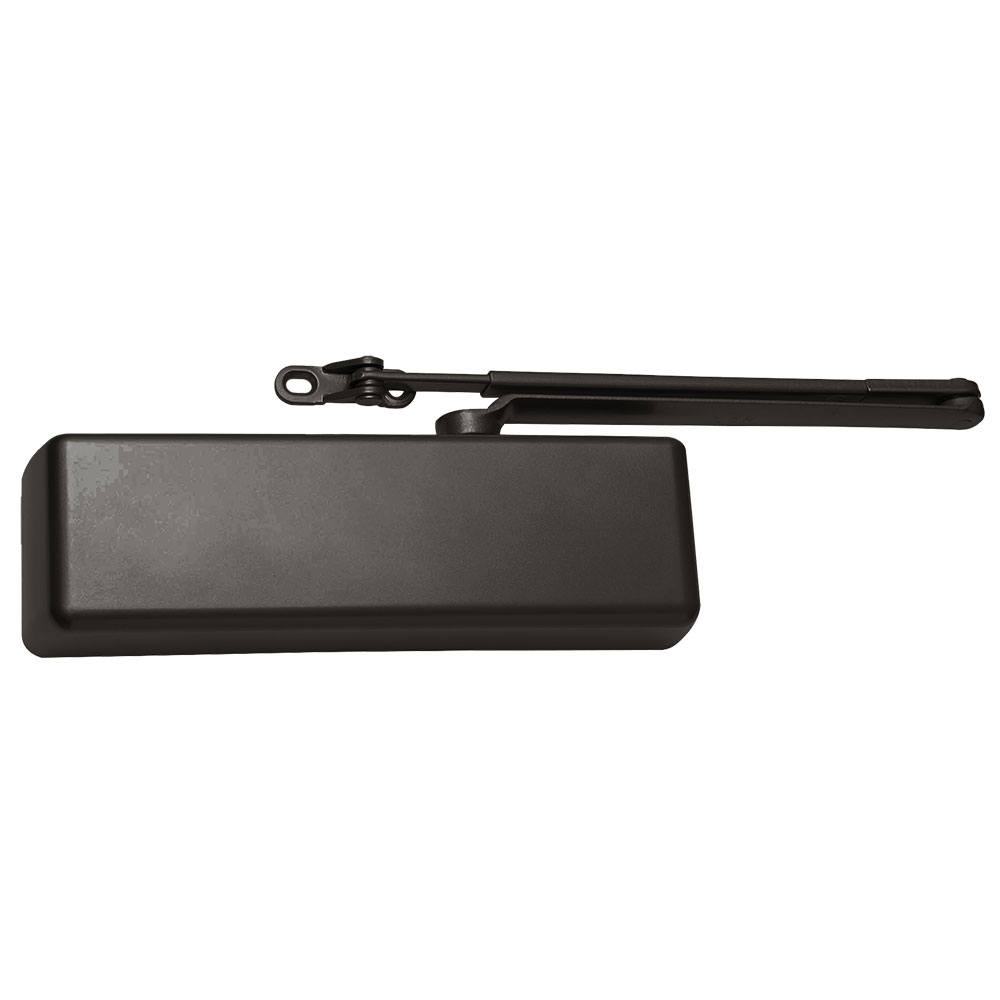

LCN 4031-REG 693 Universal HD Door Closer - GLBLK

LCN 4031-REG 693 Universal HD Closer GLBLK is a Grade 1 door closer designed for durability and reliability in moderate traffic conditions. This versatile product features a regular arm and pull side mounting, accommodating a 180-degree swing to enhance accessibility in various environments. Engineered from cast iron with a forged steel main arm, the 4031 is built to last. It offers adjustable sizing from 1 to 4 (default set to 3), making it suitable for exterior doors up to 36 inches and interior doors up to 48 inches. The non-handed design allows for easy installation on right or left swinging doors, further simplifying the selection process. This door closer meets ADA requirements and is UL and cUL listed for self-closing doors without hold-open capabilities, ensuring compliance with safety standards. The plastic cover provides a sleek appearance in a black painted finish. Included with the closer is a metal cover and a pack of wood/self-tapping machine screws for quick installation. With a limited 30-year warranty, the LCN 4031-REG 693 Universal HD Closer GLBLK represents a dependable choice for commercial applications, promising performance and longevity in demanding settings.

Universal HD Closer GLBLK

Grade 1 Door Closer, Regular Arm, Pull Side Mounting, 180 Degree Swing, Adjustable Size 1 to 4 (Set to 3), Plastic Cover, Non-Handed, Black Painted Finish

The 4030 is a cast iron, universal closer designed specifically for doors in moderate traffic conditions. This versatile closer compliments the rest of the heavy duty 4000 Series and offers the choice of three mountings and multiple arm options.

The LCN 4030 Series is a cast iron universal closer that has a forged steel main arm.

The LCN 4030 Series is designed specifically for doors in moderate traffic conditions. This versatile closer compliments the rest of the heavy duty 4000 Series and offers the choice of three mountings and multiple arm options.

• Standard new 4030 series closer is shipped with forged regular arm, metal cover and wood/self-tapping machine screw pack. See the Options tab for more information.
• Non-sized (1-4) 4031 cylinder for exterior doors to 36” (914 mm) and interior doors to 48” (1219 mm)
• Closer mounts hinge side, top jamb, and parallel arm, on either right or left swinging doors
• Closer meets ADA requirements
• Standard or optional custom powder coat finish
• Optional plated finish on metal cover, arm and fasteners
• Optional SRI primer for installations in corrosive conditions is available with powder coat only
• The 4030 Series is UL and cUL listed for Self-closing doors without hold-open
• Tested and certified under ANSI Standard A156.4, grade one

Resources

• 4030 Series Surface Mounted Closers Cut Sheet
• LCN 4000 Series Catalog
• LCN 4030 CUSH Series Installation Instructions
• LCN 4030 Peel-N-Stick Series Installation Instructions
• LCN 4030 Series Cut Sheet
• LCN 4030 Series Installation Instructions
• LCN Closers & Auto Operators Installation Guide
• LCN Closers & Automatic Operators Parts Manual
• Von Duprin Finishes Chart
