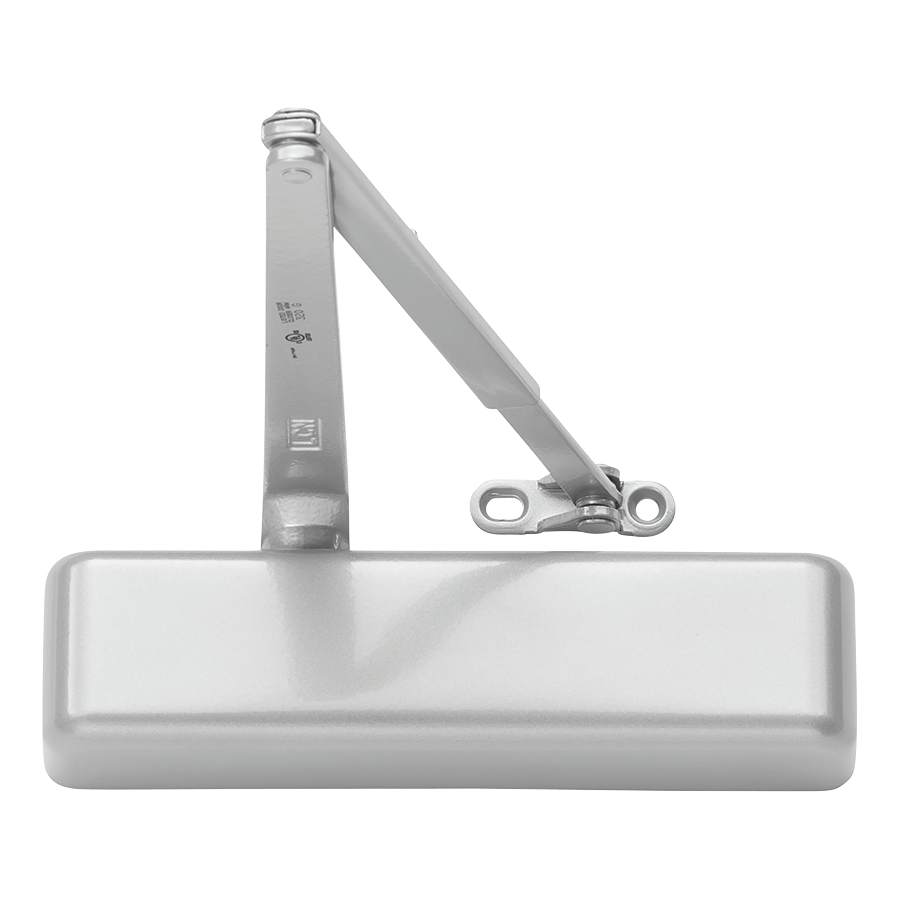

LCN 4031-RW/PA-AL WMS Low Profile Cast Iron Door Closer, Adjustable Spring Size 1-4, Grade 1

LCN Closers 4031-RW/PA-AL WMS Low Profile Door Closer is designed for durability and reliable performance in moderate traffic environments. This cast iron surface mount closer features a regular arm with a parallel shoe, ensuring it meets ANSI/BHMA A156.4 grade 1 standards and ADA requirements for reduced opening force. With adjustable spring sizes ranging from 1 to 4, this closer provides versatility for various door applications. Crafted from high-strength materials, including a cast iron cylinder and forged steel arm, the 4031 is built to withstand the rigors of daily use. It is UL and cUL listed for self-closing doors without hold-open functionality, making it an ideal choice for both commercial and residential settings. The all-weather fluid ensures smooth operation in varying climates, while the metal cover adds an extra layer of durability and aesthetic appeal. Installation is a breeze, thanks to the peel-n-stick template, and the closer is non-handed, allowing for easy mounting on hinge, top jamb, or parallel arm configurations. Backed by a 30-year limited warranty, the LCN 4031-RW/PA-AL WMS is a dependable choice that combines functionality with long-lasting performance, making it a preferred option for building professionals and homeowners alike.

Low Profile Door Closer, Cast Iron Surface Mount, Regular Arm with Parallel Shoe, Moderate Traffic, Adjustable Spring Size 1-4, Grade 1, WMS Wood and Machine Screw Pack, MC Metal Cover, 689/AL Aluminum Powder Coat

The heavy-duty 4030 series is a universal closer designed for moderate traffic conditions, meeting ANSI/BHMA A156.4 grade 1 standards and ADA reduced opening force requirements. It complements the heavy-duty 4000 series, and offers a choice of three mountings and multiple arm options. The 4030 series is UL and cUL listed for self-closing doors without hold-open and boasts a 30-year limited warranty. The 4030 series features a metal cover, with optional plated finish available for cover, arm and fasteners. It mounts hinge side, top jamb and parallel arm, on left- or right-swinging doors. Materials include a high-strength cast iron cylinder and forged steel main arm.

Features:

• Cast iron cylinder with full-complement bearing
• 1-1/8" diameter piston
• Single heat treated pinion journal
• All-weather fluid
• Forged steel arm
• 30-year warranty
• Universal non-handed
• Peel-n-stick template and standard metal cover
• Adjustable spring sizes 1-4

Specifications:

• Certifications: Grade 1 - ANSI A156.4, UL 10C, ADA, 100 hour salt spray, meets BAA - buy American Act
• Body construction:
• Cast iron body
• Full complement bearing
• 1-1⁄8" diameter piston
• 1⁄2" diameter single heat treated pinion journal
• Fluid: All weather
• Templating: Peel-n-stick templates - 1-23⁄32" x 6-17⁄64" mounting hole pattern
• Size: Adjustable spring size 1-4
• Cover: Metal cover (MC), standard
• Fasteners: Self reaming and tapping screws (SRT)
• Mounting: Hinge (pull side), top jamb (push side), parallel arm (push side)

Optional Arms:

• 4030-3077: Regular Arm (REGARM)
• Non-handed
• Mounts hinge side or top jamb
• P4031 closer includes PA shoe, 4030-62PA is required for parallel arm mounting
• 4030-3077LD: Light Duty Arm (LD)
• Non-handed
• Mounts hinge side, top jamb or parallel arm (62PA required)
• Optional
• 4030-3077L: Long Arm (LONG)
• Non-handed
• Includes long rod and shoe, 4030-79LR for top jamb mount with deep reveals
• Optional
• 4030-3049: Hold Open Arm (H)
• Non-handed
• Mounts hinge side, top jamb or parallel arm (62PA required)
• Hold open adjustable at shoe
• Optional
• 4030-3049L: Hold Open Long Arm (HLONG)
• Non-handed
• Mounts hinge side, top jamb or parallel arm (62PA required)
• Hold-open adjustable at shoe
• Optional
• 4030-3077EDA: Extra Duty Arm (EDA)
• Non-handed
• Extra duty arm features solid forged steel main and forearm for potentially abusive installations
• Optional
• 4030-3049EDA: Hold Open Extra Duty Arm (HEDA)
• Non-handed
• Arm, provides hold open function adjustable at shoe
• Optional
• 4030-3077CNS: Cush-n-Stop Arm (CUSH)
• Non-handed
• Solid forged steel main arm and forearm with stop in soffit shoe
• Optional
• 4030-3049CNS: Hold Open Cush-n-Stop Arm (HCUSH)
• Non-handed
• Provides hold open function with templated stop/hold open points
• Handle controls hold open function
• Optional
• 4030-3077SCNS: Spring Cush-n-Stop Arm (SCUSH)
• Non-handed
• For abusive applications
• Features solid forged steel main arm and forearm with spring loaded stop in the soffit shoe
• Optional
• 4030-3049SCNS: Spring Hold Open Cush-n-Stop Arm (SHCUSH)
• Non-handed
• Features solid forged steel main arm and forearm with spring loaded stop in the soffit shoe
• Handle controls hold open function
• Optional

Finishes:

• 622 - Matte black
• 689 - Aluminum
• 690 - Statuary bronze
• 691 - Light bronze
• 693 - Black
• 695 - Dark bronze
• 696 - Brass
