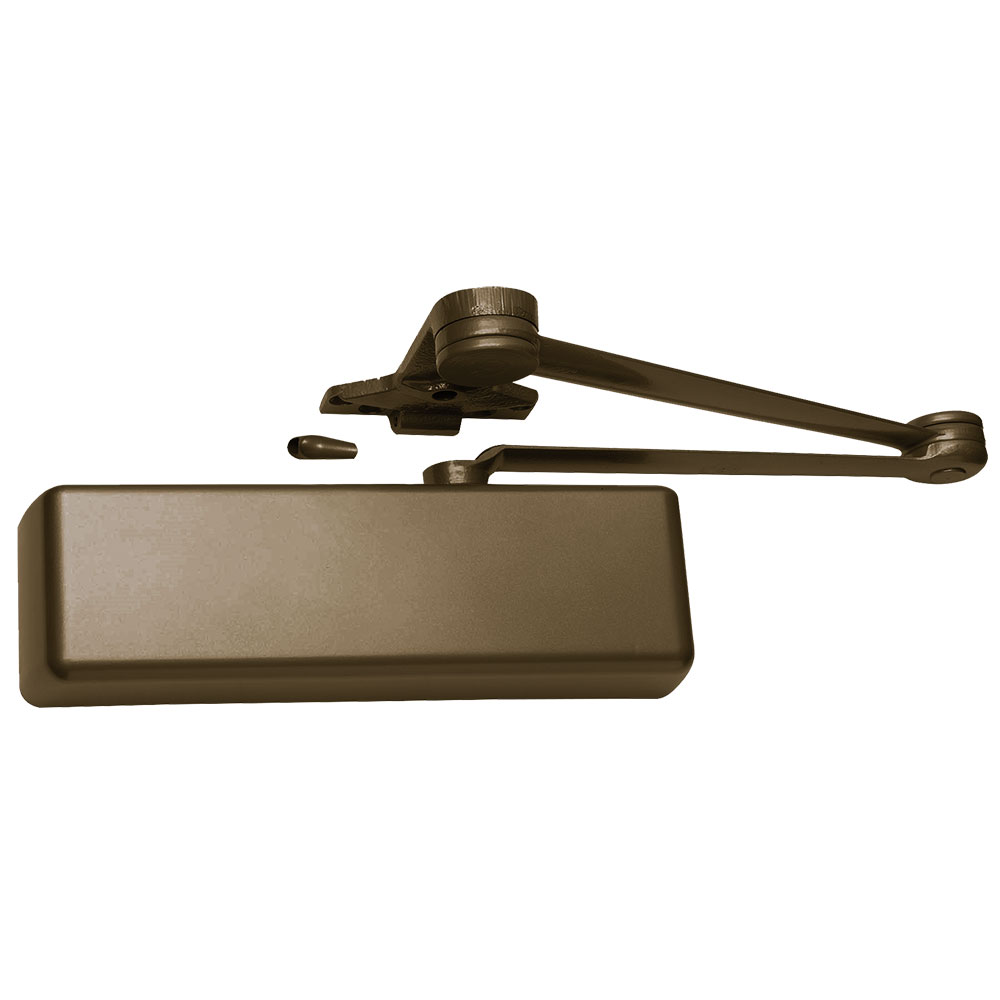

LCN 4031-SCUSH 695 Universal HD Door Closer - DKBRZ

LCN 4031-SCUSH 695 Universal HD Closer DKBRZ offers a robust solution for managing door operations in moderate traffic environments. This cast iron universal door closer features a forged steel main arm, ensuring durability and reliability for both commercial and residential applications. The 4031 model is designed to accommodate exterior doors up to 36 inches and interior doors up to 48 inches, providing versatility for various installations. With three mounting options-hinge side, top jamb, and parallel arm-this closer is suitable for right or left swinging doors, making it a flexible choice for any project. The full metal cover not only enhances its aesthetic appeal but also contributes to its sturdy construction. Meeting ADA requirements, the 4031-SCUSH ensures accessibility in compliance with regulations. Tested under ANSI Standard A156.4, grade one, this closer guarantees exceptional performance and durability. It is UL and cUL listed for self-closing doors without hold-open functionality, making it ideal for high-traffic areas. Additionally, it is available in a standard dark bronze finish, with options for custom powder coating and a plated finish for enhanced protection against corrosion. Backed by a 30-year limited warranty, the LCN 4031-SCUSH is a reliable choice for those seeking a high-performance door closer.

Universal HD Closer DKBRZ

Spring Cush Arm Door Closer, Dark Bronze

The 4030 is a cast iron universal door closer designed for doors with moderate traffic.

The LCN 4030 Series is a cast iron universal closer that has a forged steel main arm.

The LCN 4030 Series is designed specifically for doors in moderate traffic conditions. This versatile closer compliments the rest of the heavy duty 4000 Series and offers the choice of three mountings and multiple arm options.

• Standard new 4030 series closer is shipped with forged regular arm, metal cover and wood/self-tapping machine screw pack. See the Options tab for more information.
• Non-sized (1-4) 4031 cylinder for exterior doors to 36” (914 mm) and interior doors to 48” (1219 mm)
• Closer mounts hinge side, top jamb, and parallel arm, on either right or left swinging doors
• Closer meets ADA requirements
• Standard or optional custom powder coat finish
• Optional plated finish on metal cover, arm and fasteners
• Optional SRI primer for installations in corrosive conditions is available with powder coat only
• The 4030 Series is UL and cUL listed for Self-closing doors without hold-open
• Tested and certified under ANSI Standard A156.4, grade one

Resources

• 4030 Series Surface Mounted Closers Cut Sheet
• LCN 4000 Series Catalog
• LCN 4030 CUSH Series Installation Instructions
• LCN 4030 Peel-N-Stick Series Installation Instructions
• LCN 4030 Series Cut Sheet
• LCN 4030 Series Installation Instructions
• LCN Closers & Auto Operators Installation Guide
• LCN Closers & Automatic Operators Parts Manual
• Von Duprin Finishes Chart
