LCN 4040XP-3049 652 Hold Open Arm US26D

LCN 4040XP-3049 652 Hold Open Arm US26D is a robust and versatile solution designed for high-traffic environments. This heavy-duty closer excels in institutional settings, ensuring reliability and performance even under demanding conditions. With a hold open adjustable shoe, it can be mounted on the pull side or top jamb, making it adaptable to various installation needs. The LCN 4040XP boasts a durable, non-handed design, featuring a 44% increased bearing load capacity and the strongest pinion ever, with a 3/4" journal diameter. Its innovative construction incorporates a wider bearing and stronger pinion teeth, ensuring enhanced longevity and durability. The new V-shield™ seal extends the lifespan of the closer by 20%, providing extra protection in real-world applications. Engineered for convenience, this closer includes LCN® Fast™ Power Adjust, facilitating quick and accurate installation. It meets ADA requirements and is UL and cUL listed, making it suitable for self-closing doors without hold-open features. The 4040XP can accommodate doors up to 5'0" for interiors and 4'0" for exteriors, while offering a range of finishes to match any aesthetic. With a 30-year limited warranty, this door closer is a smart investment for commercial applications.

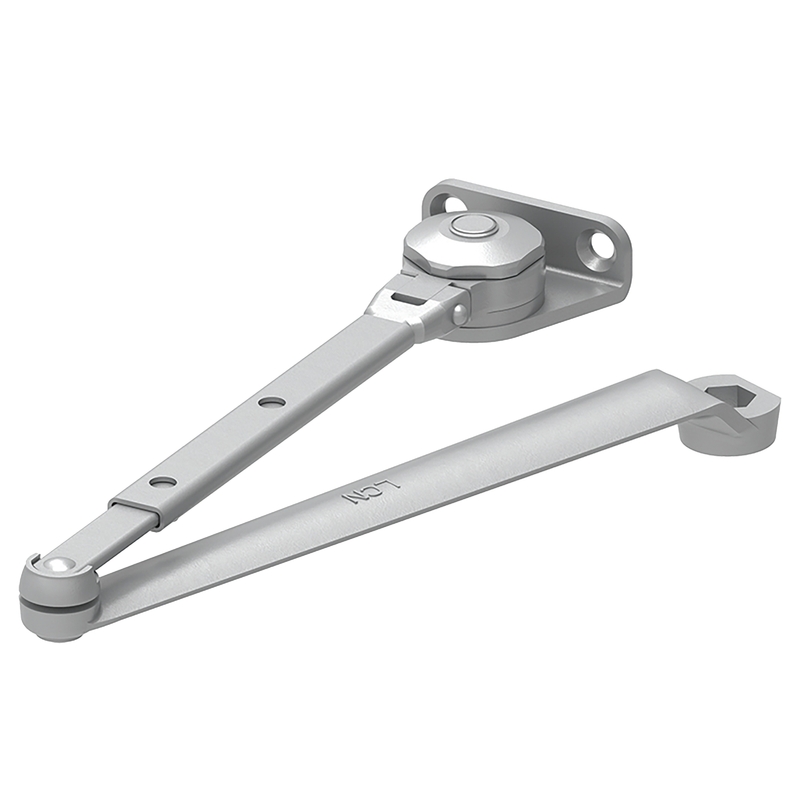

Hold Open Arm US26D

Hold Open Arm, Mounts Pull Side or Top Jamb with Shallow Reveal, Hold Open Adjustable Shoe, Satin Chrome Finish, Non-Handed

LCN's most durable and flexible heavy duty closer designed for institutional and other demanding high traffic applications.

Durable, non-handed, heavy duty closer designed for the most demanding, high-use and abuse applications.

The LCN 4040XP sets a new standard for reliability, longevity and value with a beefier design and extraordinary performance testing that goes far beyond industry requirements. LCN built the 4040XP from the inside out, combining tougher, bolder construction with proven LCN technology. The result is a closer that’s stronger, smarter and delivers remarkable value in a variety of applications.

• 44% increased bearing load capacity
• Strongest pinion ever, at 3/4" journal diameter
• Widest bearing ever, at 5/8"
• Stronger pinion teeth
• New V-shield™ seal with 20% longer life
• XP = eXtra Protection in real world applications
• Cast Iron
• Forged Steel Arm
• Double Heat Treated Steel Pinion
• All Weather Fluid
• Non-Handed
• LCN® Fast™ Power Adjust
• Fast & Accurate Installation
• UL & cUL Listed
• Tested and certified under ANSI Standard A156.4, grade one
• Non-sized cylinder is adjustable for interior doors to 5’0” and exterior doors to 4'0"
• Closer can mount hinge side, top jamb, or parallel arm (with PA bracket) on either right or left swinging doors
• Closers to meet ADA requirements
• Standard or optional custom powder coat finish
• Optional plated finish on metal cover, arm and fasteners
• Optional SRI primer for installations in corrosive conditions is available with powder coat only
• UL and cUL listed for self-closing doors without hold-open
• 4040XP can be used with all 4040 accessories
