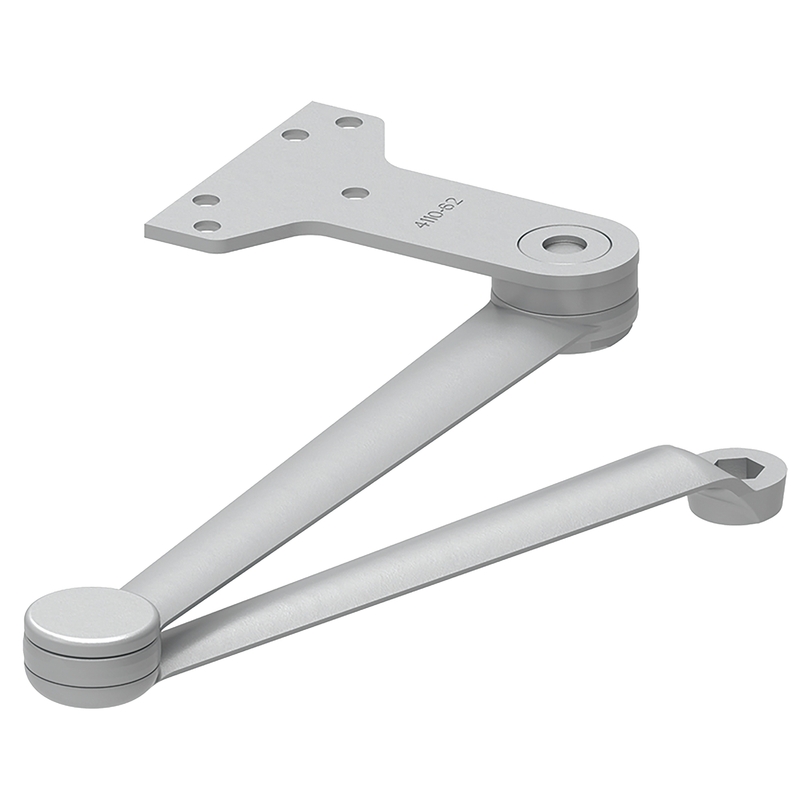

LCN 4040XP-3049EDA RH 652 Extra Duty Hold Open Arm US26D

LCN 4040XP-3049EDA RH 652 Hold Open Extra Duty Arm US26D is engineered for demanding high-traffic environments. This heavy-duty closer is designed with a forged solid steel main and forearm, making it ideal for potentially abusive installations. The hold open function can be adjusted at the shoe, offering flexibility and ease of use. Finished in satin chrome, this right-handed model combines durability with functional elegance. With an impressive 44% increased bearing load capacity and the strongest pinion ever at a 3/4" journal diameter, the LCN 4040XP sets a new benchmark for reliability and performance. Its robust design includes a wider bearing for enhanced stability and stronger pinion teeth for reduced wear. The innovative V-shield™ seal extends the product's lifespan by 20%, ensuring lasting performance in real-world applications. This non-handed closer meets ADA requirements and can be installed hinge side, top jamb, or parallel arm on both right and left swinging doors. UL and cUL listed, it guarantees compliance for self-closing doors without hold-open functionality. Each unit comes with a remarkable 30-year limited warranty, showcasing LCN's commitment to quality and customer satisfaction. The 4040XP is a versatile solution that delivers exceptional value in any commercial setting.

Hold Open Extra Duty Arm US26D

Hold Open Extra Duty Arm, Parallel Arm Features Forged Solid Steel Main and Forearm for Potentially Abusive Installations, Hold Open Function is Adjusted at the Shoe, Satin Chrome Finish, Right-Handed

LCN's most durable and flexible heavy duty closer designed for institutional and other demanding high traffic applications.

Durable, non-handed, heavy duty closer designed for the most demanding, high-use and abuse applications.

The LCN 4040XP sets a new standard for reliability, longevity and value with a beefier design and extraordinary performance testing that goes far beyond industry requirements. LCN built the 4040XP from the inside out, combining tougher, bolder construction with proven LCN technology. The result is a closer that’s stronger, smarter and delivers remarkable value in a variety of applications.

• 44% increased bearing load capacity
• Strongest pinion ever, at 3/4" journal diameter
• Widest bearing ever, at 5/8"
• Stronger pinion teeth
• New V-shield™ seal with 20% longer life
• XP = eXtra Protection in real world applications
• Cast Iron
• Forged Steel Arm
• Double Heat Treated Steel Pinion
• All Weather Fluid
• Non-Handed
• LCN® Fast™ Power Adjust
• Fast & Accurate Installation
• UL & cUL Listed
• Tested and certified under ANSI Standard A156.4, grade one
• Non-sized cylinder is adjustable for interior doors to 5’0” and exterior doors to 4'0"
• Closer can mount hinge side, top jamb, or parallel arm (with PA bracket) on either right or left swinging doors
• Closers to meet ADA requirements
• Standard or optional custom powder coat finish
• Optional plated finish on metal cover, arm and fasteners
• Optional SRI primer for installations in corrosive conditions is available with powder coat only
• UL and cUL listed for self-closing doors without hold-open
• 4040XP can be used with all 4040 accessories
