LCN 4040XP-3077/62A 696 Regular Arm BRASS offers a robust solution for high-traffic environments, making it an ideal choice for institutional and commercial applications. With its durable, non-handed design, this heavy-duty closer is built to withstand the rigors of frequent use and abuse, ensuring reliability and longevity. This model features a satin brass painted finish and includes a 62A shoe for enhanced performance. The LCN 4040XP sets a new benchmark in door closer technology, boasting a 44% increased bearing load capacity and the strongest pinion ever created, with a 3/4" journal diameter. The wider 5/8" bearing and reinforced pinion teeth further enhance its durability. The innovative V-shield™ seal extends the closer's lifespan by 20%, while the all-weather fluid ensures optimal performance in diverse conditions. It can be mounted on hinge side, top jamb, or parallel arm configurations, accommodating both right and left swinging doors. With a 30-year limited warranty and certification under ANSI Standard A156.4, grade one, the LCN 4040XP is not only reliable but also meets ADA requirements. Available in a standard or custom powder coat finish, it blends seamlessly into any architectural style while providing exceptional value.
Regular Arm BRASS

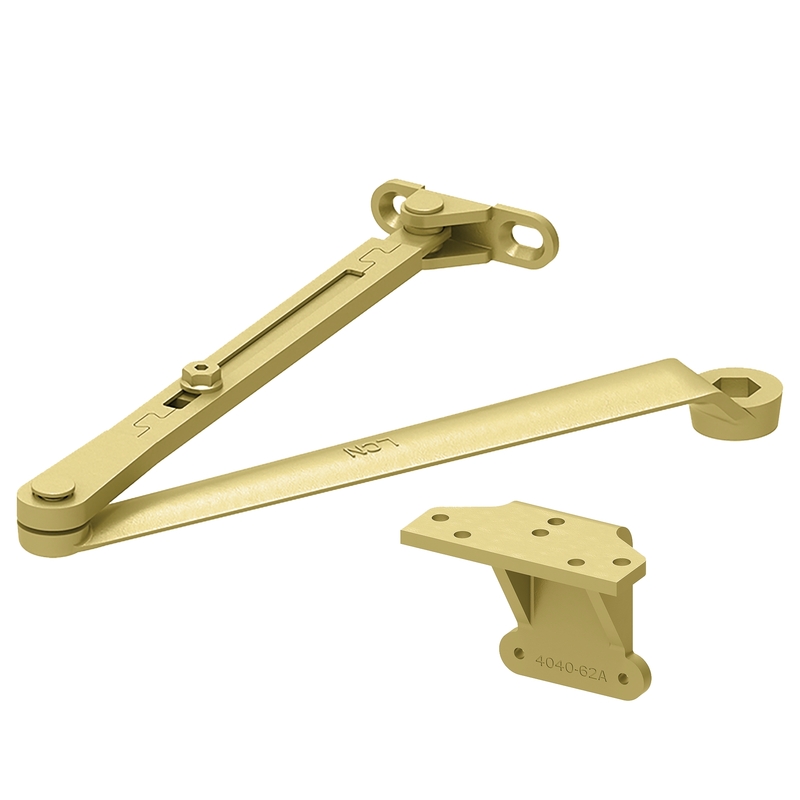

Regular Arm with 62A Shoe, Satin Brass Painted Finish
LCN's most durable and flexible heavy duty closer designed for institutional and other demanding high traffic applications.
Durable, non-handed, heavy duty closer designed for the most demanding, high-use and abuse applications.
The LCN 4040XP sets a new standard for reliability, longevity and value with a beefier design and extraordinary performance testing that goes far beyond industry requirements. LCN built the 4040XP from the inside out, combining tougher, bolder construction with proven LCN technology. The result is a closer that’s stronger, smarter and delivers remarkable value in a variety of applications.
Application: For 4040XP Series Door Closers
Baa Qualified: Yes
Base Material: Varies
Commercial Residential: Commercial
Country of origin: USA
Finish: 696
Finish Family: Matte Brass
Grade: Grade 1
Handing: Non-Handed
Hold Open: No
Installation: Commercial
Limited Warranty: 30 Years
Mounting Style: Parallel Arm
Origin: USA
Pack Qty: 1
Series: 4040XP Series Surface Mounted Closers
Subtype: Door Closer Arms
Type: Door Closers and Operators
Unit of Measure: Each
