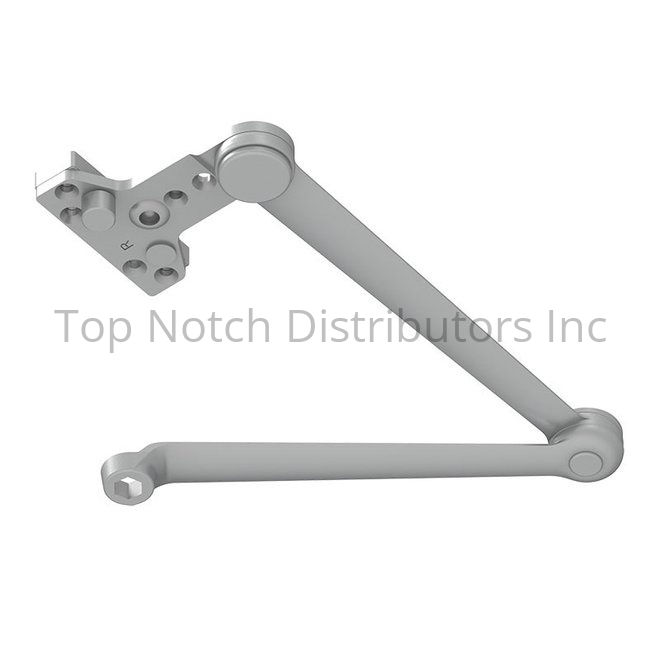

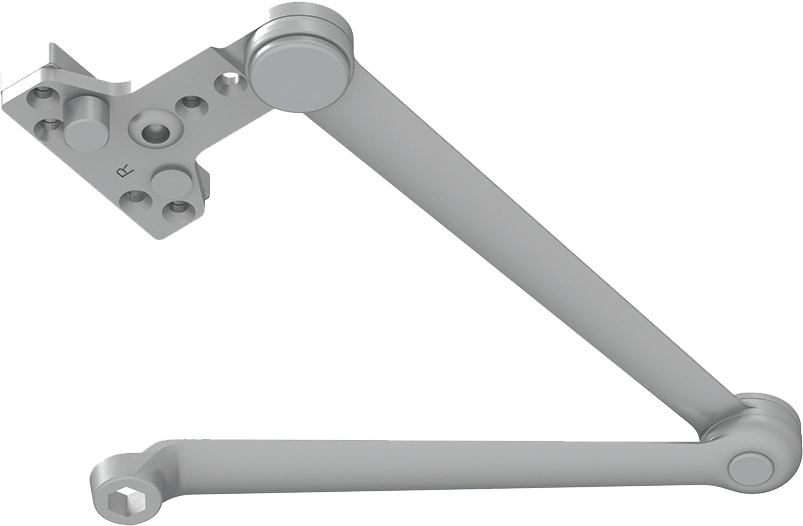

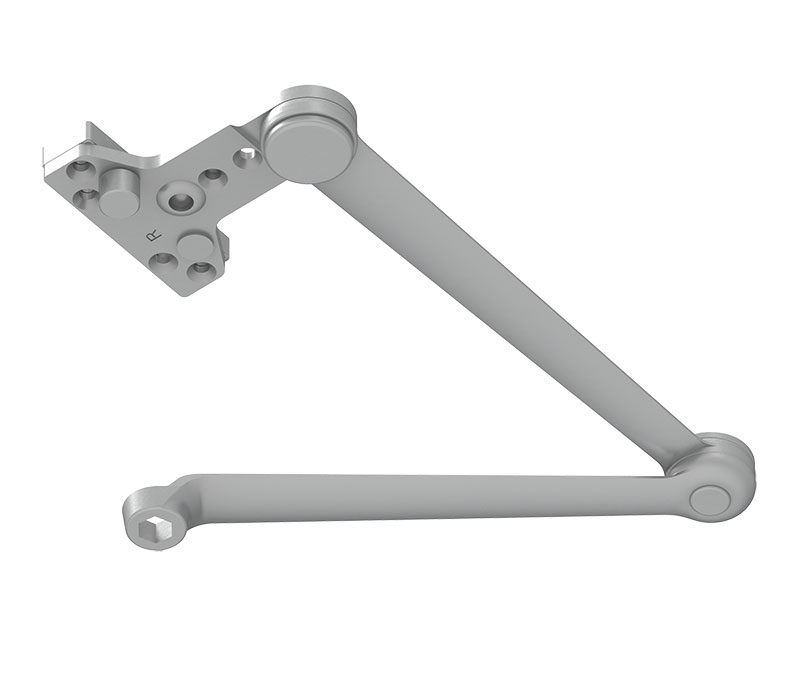

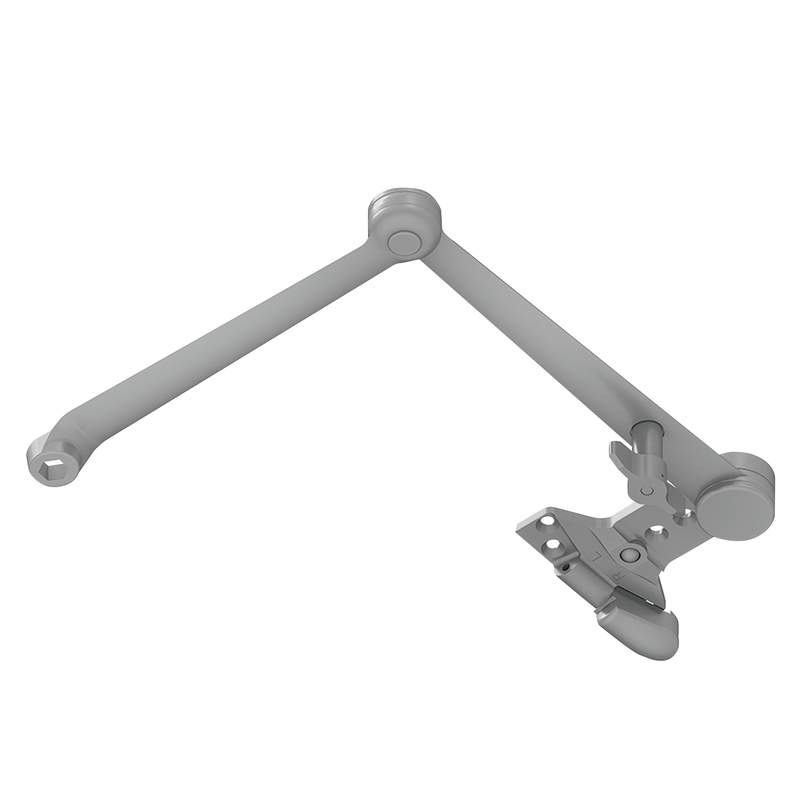

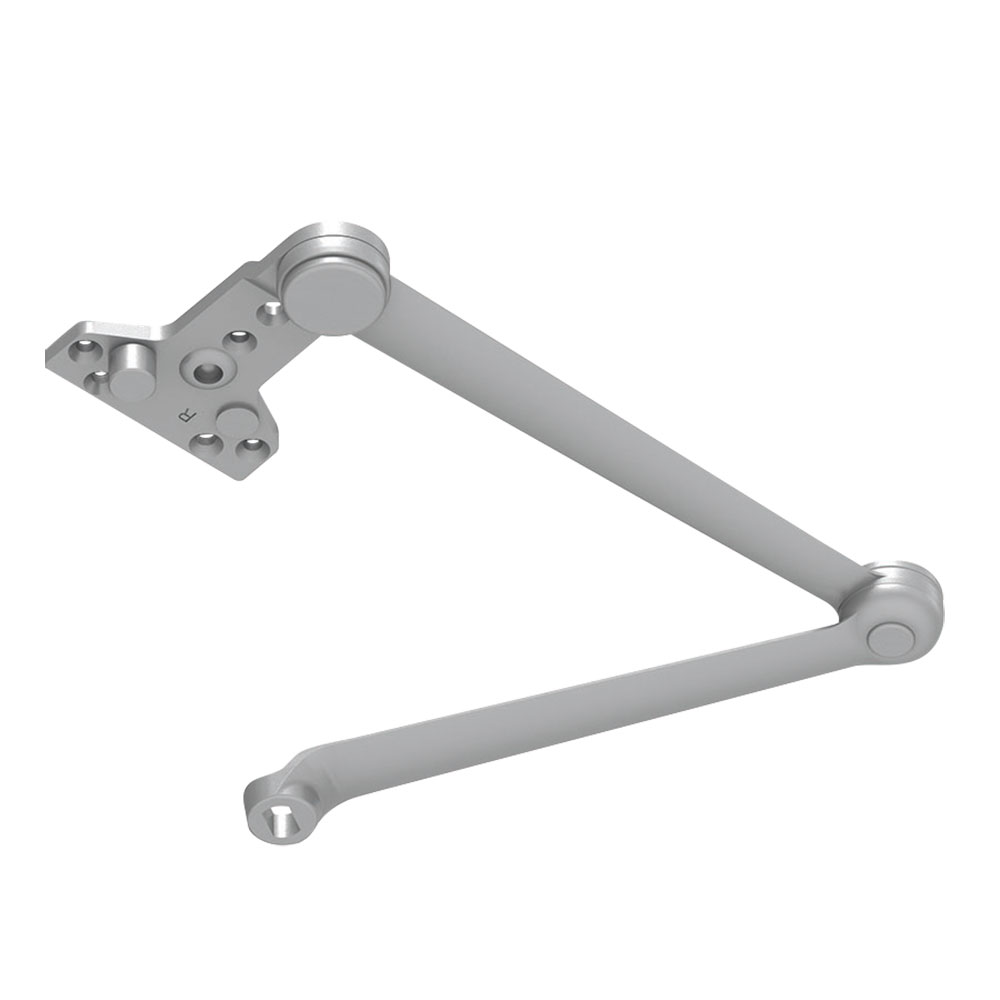

LCN 4040XP-3077CNS-AL Cush Arm for 4040XP - Aluminum Finish

LCN 4040XP3077CNSAL Cush Arm for 4040XP features a robust design specifically engineered for the 4040XP Series, ensuring optimal performance in high-traffic environments such as schools, hospitals, and government facilities. Crafted from durable cast iron and finished in a sleek aluminum (Finish Code 689), this arm not only enhances the aesthetic appeal of your doors but also guarantees longevity and reliability. Designed with specific functions in mind, the LCN 4040XP3077CNSAL provides seamless operation, allowing doors to close smoothly and securely. Its UL 10C rating signifies compliance with rigorous safety standards, giving users confidence in its reliability. The arm is tailored to work exclusively with the 4040XP Series, ensuring compatibility and ease of installation. With a limited 30-year warranty, LCN stands behind the quality of its products, promising exceptional value and peace of mind. Notably, this arm does not feature a hold open function, making it ideal for spaces where controlled access is necessary. Choose the LCN 4040XP3077CNSAL Cush Arm for your door closure needs, and experience the unmatched expertise and performance LCN is renowned for in safety and security solutions.

Cush Arm for 4040XP 689 Aluminum Finish

LCN products can be found in many high-traffic facilities such as schools, hospitals, government buildings, and correctional facilities. With innovative door closure solutions, LCN products are trusted to work seamlessly during critical moments. With our high standards of performance, customers have peace of mind knowing their facilities are protected. We have 35 different series of closers and door hardware to choose from and 15 to 20 years of operating life on our products. LCN has unmatched expertise to meet all safety and security challenges.

• Each closer (except 4040, 4040T, 4030, 4030T) is designed for a specific mounting; hinge side, top jamb, or parallel arm. 4040 closer with regular or hold-open arm mounts hinge side or top jamb. P4030 & P4040 closers include 62PA shoe required to parallel arm mount either regular or hold-open arm.
• Handed for right or left swinging doors, except 4000T, 4030, 4030T, 4040, and 4040T
• Closers to meet ADA reduced opening force requirements except 4000T
• Adjustable hydraulic backcheck cushions opening swing prior to 90°
• Separate regulation of general closing speed and latching speed
• Joints in regular arm and shoe adapt to uneven trim
• Reversible shoe to boost latching power or double lever arms
• Available in a wide range of standard or optional custom powder coat finishes to blend with door and frame
• Plated finishes available to accent door and frame
• Not designed for exterior mounting or exposed to elements
• Arms Have Specific Functions
• Many LCN Parts or Components Have Casting or Forging Numbers Stamped or Raised on the Surface
• For Use with 4040XP Series
• Many Parts are Series Specific, Specify When Ordering
• Many Parts are Finished, Specify When Ordering

Features

• Optional
• Non-handed
• Features solid forged steel main arm and forearm with stop in soffit shoe

Resources

• 2022 LCN Price Book
• 4040XP Brochure
• 4040XP Feature Enhancements
• 4040XP Series Cut Sheet
• 4040XP/4041DA Installation Instructions
• LCN 4000 Series Catalog
• LCN 4000 Series Metal Templates Sell Sheet
• LCN 4040XP Closer Installation Video
• LCN 4040XP Series Infographic
• LCN 4040XP/4041 DA 120 Degree Top Jamb Push Side Mount Installation Guide
• LCN 4040XP/4041 DA CUSH 85-90-100-110 Degree Push Side Mount Installation Guide
• LCN 4040XP/4041DA 120 Degree & 180 Degree Pull Side Installation Guide
• LCN 4040XP/4041DA Drop Plate Installation Guide
• LCN 4040XP/4041DA EDA 110-180 Degree Installation Guide
• LCN Closers & Auto Operators Installation Guide
• LCN Closers & Automatic Operators Parts Manual
• LCN Finishes Chart
