LCN 4040XP-3077L 695 Long Arm DKBRZ Door Hardware

LCN 4040XP-3077L 695 Long Arm DKBRZ is engineered for the most demanding high-traffic environments, making it an ideal choice for institutional applications. This heavy-duty closer combines strength and versatility with a durable dark bronze finish that enhances both aesthetic and functional qualities. Its non-handed design allows for flexible installation on either right or left swinging doors, ensuring compatibility with various configurations. The LCN 4040XP boasts a 44% increase in bearing load capacity, with the strongest pinion ever at a ¾" journal diameter. The wider bearing at 5/8" and reinforced pinion teeth provide superior durability, while the innovative V-shield™ seal extends service life by 20%. Designed with commercial use in mind, this closer meets ANSI Standard A156.4, grade one requirements, and is UL and cUL listed for self-closing doors. Installation is straightforward with LCN® Fast™ Power Adjust technology, allowing for quick and accurate adjustments. The closer is suitable for interior doors up to 5'0" and exterior doors up to 4'0". With a remarkable 30-year limited warranty, the LCN 4040XP-3077L delivers exceptional reliability and performance for any heavy-use application.

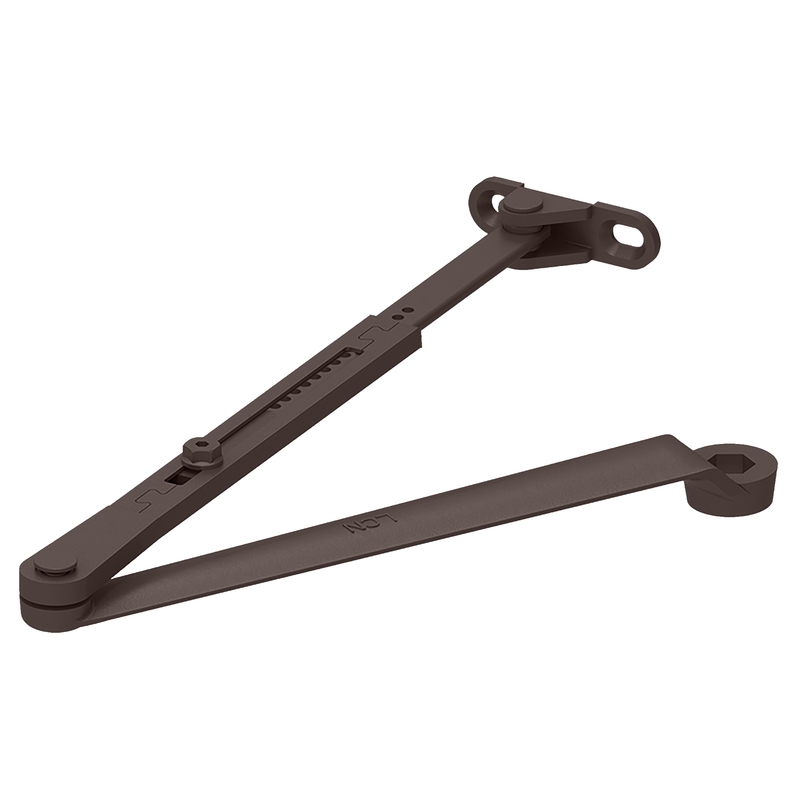

Long Arm DKBRZ

Long Arm, Dark Bronze Painted Finish, Non-Handed

LCN's most durable and flexible heavy duty closer designed for institutional and other demanding high traffic applications.

Durable, non-handed, heavy duty closer designed for the most demanding, high-use and abuse applications.

The LCN 4040XP sets a new standard for reliability, longevity and value with a beefier design and extraordinary performance testing that goes far beyond industry requirements. LCN built the 4040XP from the inside out, combining tougher, bolder construction with proven LCN technology. The result is a closer that’s stronger, smarter and delivers remarkable value in a variety of applications.

• 44% increased bearing load capacity
• Strongest pinion ever, at 3/4" journal diameter
• Widest bearing ever, at 5/8"
• Stronger pinion teeth
• New V-shield™ seal with 20% longer life
• XP = eXtra Protection in real world applications
• Cast Iron
• Forged Steel Arm
• Double Heat Treated Steel Pinion
• All Weather Fluid
• Non-Handed
• LCN® Fast™ Power Adjust
• Fast & Accurate Installation
• UL & cUL Listed
• Tested and certified under ANSI Standard A156.4, grade one
• Non-sized cylinder is adjustable for interior doors to 5’0” and exterior doors to 4'0"
• Closer can mount hinge side, top jamb, or parallel arm (with PA bracket) on either right or left swinging doors
• Closers to meet ADA requirements
• Standard or optional custom powder coat finish
• Optional plated finish on metal cover, arm and fasteners
• Optional SRI primer for installations in corrosive conditions is available with powder coat only
• UL and cUL listed for self-closing doors without hold-open
• 4040XP can be used with all 4040 accessories
