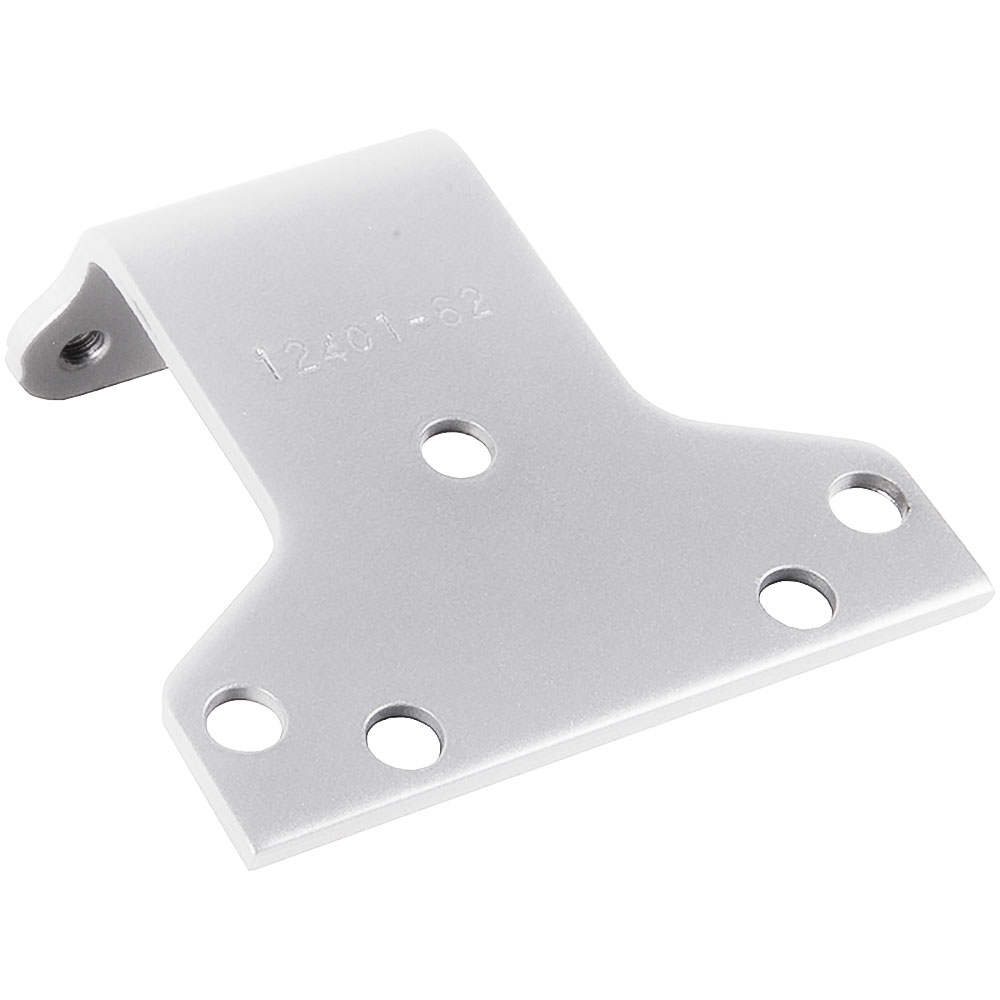

LCN 4040XP-62PA 651 Parallel Arm Shoe - US26

LCN 4040XP-62PA 651 Parallel Arm Shoe US26 offers a robust solution for high-traffic environments, featuring a bright chrome finish that enhances its sleek appearance. Designed for institutional and demanding applications, this heavy-duty closer is non-handed and built to withstand extensive use and abuse. The LCN 4040XP sets a benchmark for durability and performance, boasting a 44% increased bearing load capacity and the strongest pinion ever, with a 3/4" journal diameter. The wider 5/8" bearing and reinforced pinion teeth ensure reliable operation in a variety of settings. The innovative V-shield™ seal extends the closer's life by 20%, contributing to its eXtra Protection (XP) designation. Installation is made easy with LCN® Fast™ Power Adjust technology, allowing for fast and accurate setup. This versatile closer can be mounted on hinge side, top jamb, or parallel arm configurations for both right and left swinging doors. It meets ADA requirements and is UL & cUL listed for self-closing doors without a hold-open feature. With a limited 30-year warranty and the option for a custom powder coat finish, the LCN 4040XP-62PA 651 Parallel Arm Shoe is an ideal choice for commercial applications that demand strength, reliability, and aesthetics.

Parallel Arm Shoe US26

Parallel Arm Shoe, Bright Chrome Finish

LCN's most durable and flexible heavy duty closer designed for institutional and other demanding high traffic applications.

Durable, non-handed, heavy duty closer designed for the most demanding, high-use and abuse applications.

The LCN 4040XP sets a new standard for reliability, longevity and value with a beefier design and extraordinary performance testing that goes far beyond industry requirements. LCN built the 4040XP from the inside out, combining tougher, bolder construction with proven LCN technology. The result is a closer that’s stronger, smarter and delivers remarkable value in a variety of applications.

• 44% increased bearing load capacity
• Strongest pinion ever, at 3/4" journal diameter
• Widest bearing ever, at 5/8"
• Stronger pinion teeth
• New V-shield™ seal with 20% longer life
• XP = eXtra Protection in real world applications
• Cast Iron
• Forged Steel Arm
• Double Heat Treated Steel Pinion
• All Weather Fluid
• Non-Handed
• LCN® Fast™ Power Adjust
• Fast & Accurate Installation
• UL & cUL Listed
• Tested and certified under ANSI Standard A156.4, grade one
• Non-sized cylinder is adjustable for interior doors to 5’0” and exterior doors to 4'0"
• Closer can mount hinge side, top jamb, or parallel arm (with PA bracket) on either right or left swinging doors
• Closers to meet ADA requirements
• Standard or optional custom powder coat finish
• Optional plated finish on metal cover, arm and fasteners
• Optional SRI primer for installations in corrosive conditions is available with powder coat only
• UL and cUL listed for self-closing doors without hold-open
• 4040XP can be used with all 4040 accessories
