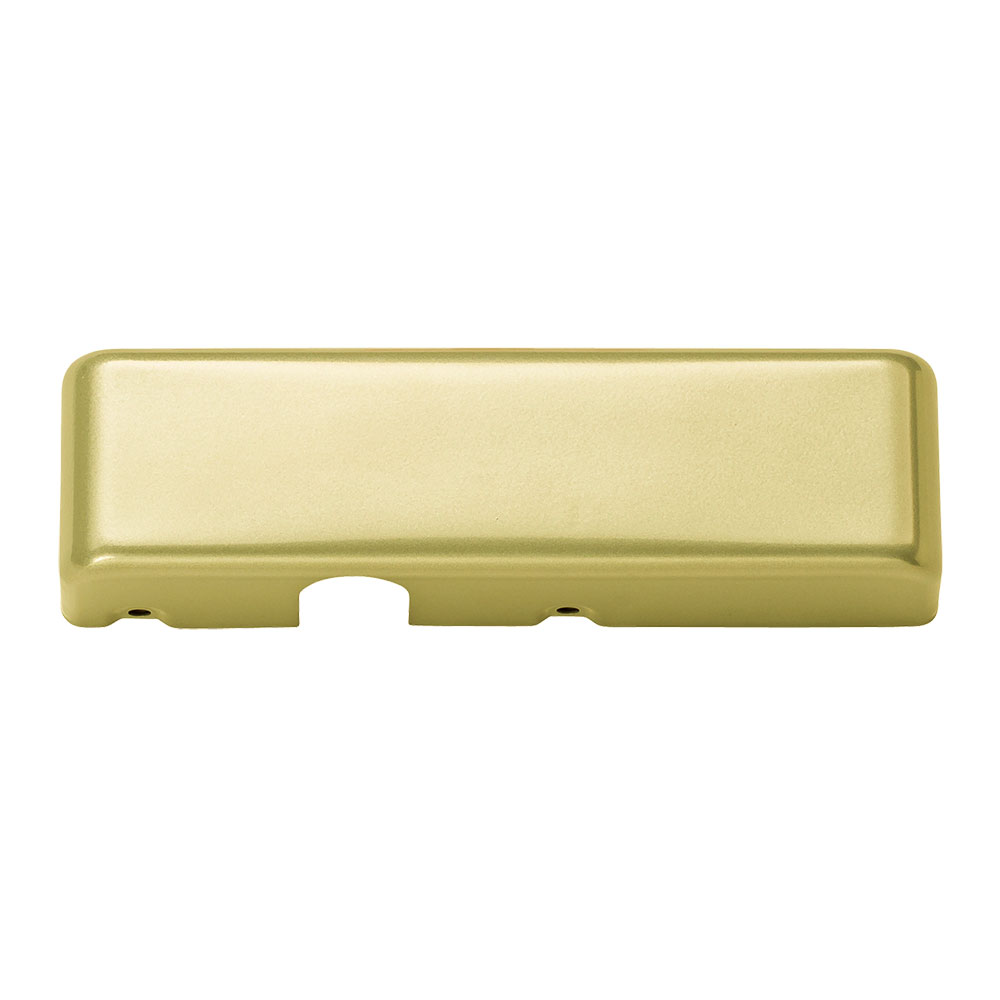

LCN 4040XP-72MC LH 633 US4 Metal Cover

LCN 4040XP-72MC LH 633 Metal Cover US4 combines durability and flexibility, making it the ideal choice for high-traffic institutional settings. This left-handed closer features a satin brass metal cover, essential for both plated and custom powder coat finishes, ensuring a seamless aesthetic for any door. Designed to withstand demanding conditions, the LCN 4040XP stands out with a robust construction that includes a 3/4" journal diameter pinion and the widest bearing ever at 5/8". With an impressive 44% increased bearing load capacity and stronger pinion teeth, this closer excels in performance. The innovative V-shield™ seal provides a 20% longer lifespan, adding to its reliability. This non-handed closer is versatile, mountable on hinge side, top jamb, or parallel arm for both right and left swinging doors, accommodating interior doors up to 5'0" and exterior doors up to 4'0". The LCN 4040XP meets ADA requirements and is UL & cUL listed for self-closing doors without hold-open. With a limited 30-year warranty, this Grade 1 closer is as tough as it is sophisticated, ensuring exceptional value for your commercial applications while enhancing security and accessibility.

Metal Cover US4

Metal Cover, Required for Plated Finishes and Custom Powder Coat Finishes, Satin Brass Finish, Left-Handed

LCN's most durable and flexible heavy duty closer designed for institutional and other demanding high traffic applications.

Durable, non-handed, heavy duty closer designed for the most demanding, high-use and abuse applications.

The LCN 4040XP sets a new standard for reliability, longevity and value with a beefier design and extraordinary performance testing that goes far beyond industry requirements. LCN built the 4040XP from the inside out, combining tougher, bolder construction with proven LCN technology. The result is a closer that’s stronger, smarter and delivers remarkable value in a variety of applications.

• 44% increased bearing load capacity
• Strongest pinion ever, at 3/4" journal diameter
• Widest bearing ever, at 5/8"
• Stronger pinion teeth
• New V-shield™ seal with 20% longer life
• XP = eXtra Protection in real world applications
• Cast Iron
• Forged Steel Arm
• Double Heat Treated Steel Pinion
• All Weather Fluid
• Non-Handed
• LCN® Fast™ Power Adjust
• Fast & Accurate Installation
• UL & cUL Listed
• Tested and certified under ANSI Standard A156.4, grade one
• Non-sized cylinder is adjustable for interior doors to 5’0” and exterior doors to 4'0"
• Closer can mount hinge side, top jamb, or parallel arm (with PA bracket) on either right or left swinging doors
• Closers to meet ADA requirements
• Standard or optional custom powder coat finish
• Optional plated finish on metal cover, arm and fasteners
• Optional SRI primer for installations in corrosive conditions is available with powder coat only
• UL and cUL listed for self-closing doors without hold-open
• 4040XP can be used with all 4040 accessories
