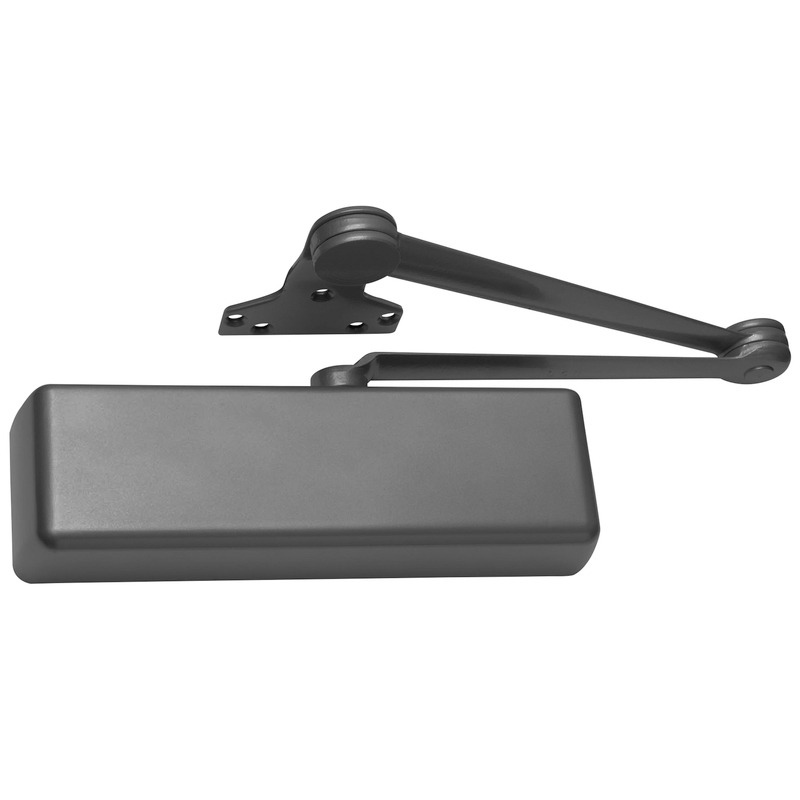

LCN 4040XP-EDAw/62G 693 Heavy Duty Surface Closer GLBLK is engineered for high-traffic environments where durability and flexibility are paramount. This Grade 1 surface door closer features an extra duty arm and a 62G shoe, designed for push side mounting with a remarkable 180-degree swing. Its adjustable size range from 1 to 6 accommodates various door specifications, making it a versatile choice for both commercial and institutional settings. Built from tough materials, including cast iron and forged steel, this closer boasts an impressive bearing load capacity that is 44% higher than previous models. The 3/4" journal diameter pinion and 5/8" wide bearing ensure outstanding performance and longevity. The innovative V-shield™ seal offers a 20% longer lifespan, while the all-weather fluid guarantees reliable operation in diverse conditions. Installation is fast and accurate, with non-handed design allowing for easy mounting on hinge side, top jamb, or parallel arm configurations. Additionally, the LCN 4040XP meets ADA requirements and is UL and cUL listed for self-closing doors without hold-open features. With a 30-year limited warranty, this heavy-duty closer provides exceptional value and peace of mind for demanding applications.
HeavyDuty Surface Closer GLBLK
Grade 1 Surface Door Closer, Extra Duty Arm, 62G Shoe, Push Side Mounting, 180 Degree Swing, Adjustable Size 1-6, Plastic Cover, Black Painted Finish, Non-Handed
LCN's most durable and flexible heavy duty closer designed for institutional and other demanding high traffic applications.
Durable, non-handed, heavy duty closer designed for the most demanding, high-use and abuse applications.
The LCN 4040XP sets a new standard for reliability, longevity and value with a beefier design and extraordinary performance testing that goes far beyond industry requirements. LCN built the 4040XP from the inside out, combining tougher, bolder construction with proven LCN technology. The result is a closer that’s stronger, smarter and delivers remarkable value in a variety of applications.
Manufacturer surcharge: $ 17.93
Accessible: Yes
Ada Compliance: Yes
Ansi: A156.4
Arm Type: Parallel Arm, Heavy Duty
Baa Qualified: Yes
Back Check: Adjustable
Base Material: Varies
Closer Size: 1 to 6
Cold Weather Fluid: Yes
Commercial Residential: Commercial
Country of origin: USA
Cover: Plastic
Degree Swing: 180 Deg.
Delay: No
Finish: 693
Finish Family: Black
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Grade: Grade 1
Handing: Non-Handed
Hold Open: No
Installation: Commercial
Limited Warranty: 30 Years
Mounting Group: Hydraulic
Mounting Location: Push Side
Mounting Style: Parallel Arm
Origin: USA
Pack Height: 5.75"
Pack Height 2: 9.25"
Pack Length: 16"
Pack Length 2: 16.5"
Pack Qty: 1
Pack Volume: 391 in³
Pack Volume 2: 1907.81 in³
Pack Width: 4.25"
Pack Width 2: 12.5"
Product Height: 3.75"
Product Length: 12"
Product Width: 2.25"
Screw Type: Self-Tapping
Series: 4040XP Series Surface Mounted Closers
Ship Weight: 12.6 lbs.
Subtype: Surface Closers
Through Bolts: No
Type: Surface
Ul Listing: UL 10C
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 4
