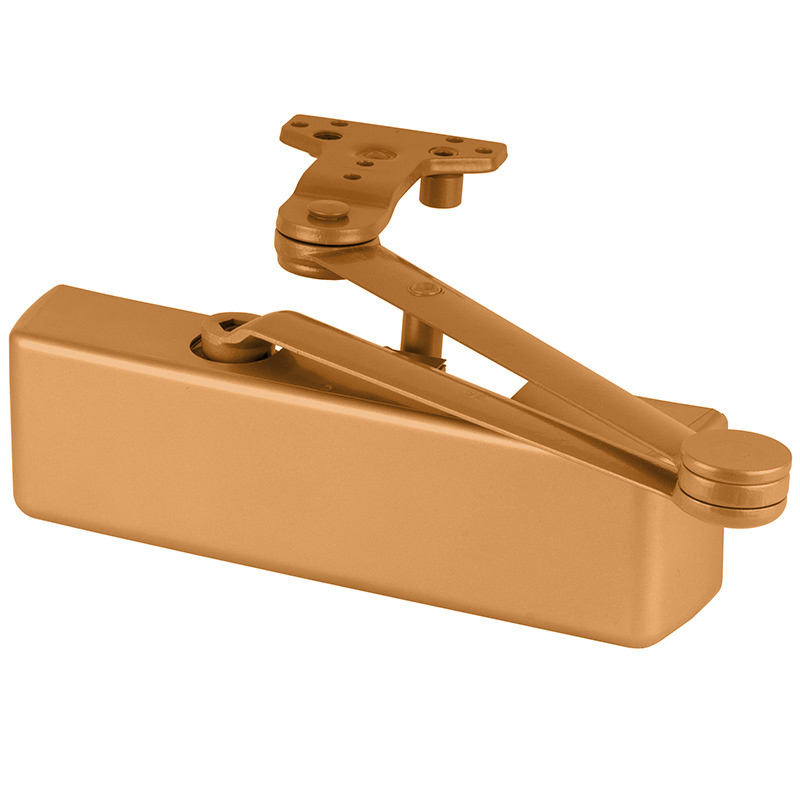

LCN 4040XP-HCUSH 691 Heavy-Duty Surface Closer LTBRZLCN 4040XP-HCUSH 691 Heavy Duty Surface Closer LTBRZ is engineered for demanding high-traffic environments, combining durability and versatility. This Grade 1 surface door closer features a hold open cush arm, allowing for a 110-degree swing and adjustable size settings from 1 to 6, making it ideal for various applications. Constructed with a robust design, the LCN 4040XP enhances reliability and longevity. It boasts a 44% increased bearing load capacity and the strongest pinion ever, featuring a 3/4" journal diameter. The wider bearing, at 5/8", and stronger pinion teeth further contribute to its exceptional performance. The new V-shield™ seal provides 20% longer life, ensuring sustained operation even under heavy use. This non-handed closer can be mounted on the hinge side, top jamb, or as a parallel arm, accommodating both left and right swinging doors. It meets ADA requirements and is UL and cUL listed, ensuring safety and compliance. Additionally, the LCN 4040XP is designed for easy installation, featuring LCN® Fast™ Power Adjust technology. Ideal for commercial settings, this closer combines a matte bronze finish with a plastic cover, providing both aesthetic appeal and functionality. Choose the LCN 4040XP for reliable performance that stands the test of time.
HeavyDuty Surface Closer LTBRZ
Grade 1 Surface Door Closer, Hold Open Cush Arm, Push Side Mounting, 110 Degree Swing, Adjustable Size 1-6, Plastic Cover, Light Bronze Painted Finish, Non-Handed
LCN's most durable and flexible heavy duty closer designed for institutional and other demanding high traffic applications.
Durable, non-handed, heavy duty closer designed for the most demanding, high-use and abuse applications.
The LCN 4040XP sets a new standard for reliability, longevity and value with a beefier design and extraordinary performance testing that goes far beyond industry requirements. LCN built the 4040XP from the inside out, combining tougher, bolder construction with proven LCN technology. The result is a closer that’s stronger, smarter and delivers remarkable value in a variety of applications.
- 44% increased bearing load capacity
- Strongest pinion ever, at 3/4" journal diameter
- Widest bearing ever, at 5/8"
- Stronger pinion teeth
- New V-shield™ seal with 20% longer life
- XP = eXtra Protection in real world applications
- Cast Iron
- Forged Steel Arm
- Double Heat Treated Steel Pinion
- All Weather Fluid
- Non-Handed
- LCN® Fast™ Power Adjust
- Fast & Accurate Installation
- UL & cUL Listed
- Tested and certified under ANSI Standard A156.4, grade one
- Non-sized cylinder is adjustable for interior doors to 5’0” and exterior doors to 4'0"
- Closer can mount hinge side, top jamb, or parallel arm (with PA bracket) on either right or left swinging doors
- Closers to meet ADA requirements
- Standard or optional custom powder coat finish
- Optional plated finish on metal cover, arm and fasteners
- Optional SRI primer for installations in corrosive conditions is available with powder coat only
- UL and cUL listed for self-closing doors without hold-open
- 4040XP can be used with all 4040 accessories
Attributes
Accessible: Yes
Ada Compliance: Yes
Ansi: A156.4
Arm Type: Parallel Arm, Heavy Duty Turn Hold
Baa Qualified: Yes
Back Check: Adjustable
Base Material: Varies
Closer Size: 1 to 6
Cold Weather Fluid: Yes
Commercial Residential: Commercial
Country of origin: USA
Cover: Plastic
Degree Hold Open: Adjustable
Degree Swing: 110 Deg.
Delay: No
Finish: 691
Finish Family: Matte Bronze
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Grade: Grade 1
Handing: Non-Handed
Hold Open: Yes
Hold Open Type: Knob
Installation: Commercial
Limited Warranty: 30 Years
Mounting Group: Hydraulic
Mounting Location: Push Side
Mounting Style: Parallel Arm
Origin: USA
Pack Height: 5.75"
Pack Height 2: 9.25"
Pack Length: 16"
Pack Length 2: 16.5"
Pack Qty: 1
Pack Volume: 391 in³
Pack Volume 2: 1907.81 in³
Pack Width: 4.25"
Pack Width 2: 12.5"
Product Height: 3.75"
Product Length: 12"
Product Width: 2.25"
Screw Type: Self-Tapping
Series: 4040XP Series Surface Mounted Closers
Ship Weight: 13.4 lbs.
Stop: Dead Stop
Subtype: Surface Closers
Through Bolts: No
Type: Surface
Ul Listing: UL 10C
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 4
