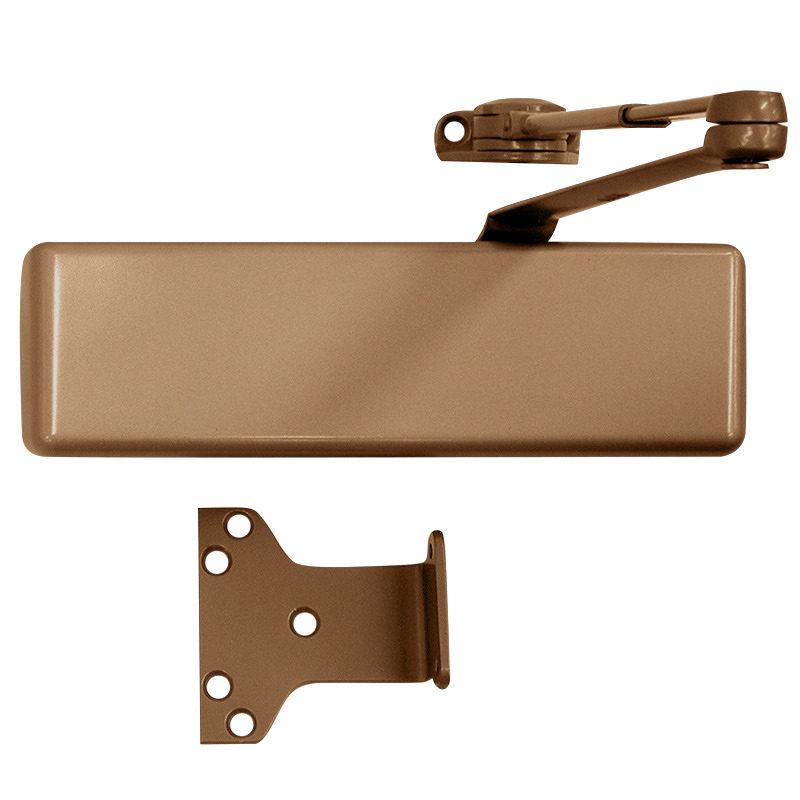

LCN 4040XP-Hw/PA 691 Heavy Duty Surface Closer LTBRZ offers unparalleled durability and flexibility, making it an ideal choice for institutional and high-traffic environments. This Grade 1 surface door closer features a hold open arm and a PA shoe, allowing for push or pull side mounting with a 120-degree swing. Its adjustable size ranges from 1 to 6, accommodating various door specifications. Constructed from robust materials, the LCN 4040XP boasts a heavy-duty design that surpasses industry testing standards. Key features include a 44% increased bearing load capacity, a 3/4" journal diameter pinion, and a 5/8" wide bearing for enhanced strength and longevity. The innovative V-shield™ seal offers a 20% longer life, ensuring reliable performance in diverse applications. Designed for convenience, this closer is non-handed, allowing for versatile installation options on either right or left swinging doors. It meets ADA requirements and is UL & cUL listed, guaranteeing compliance and safety. With a matte bronze finish and optional custom powder coat, the LCN 4040XP not only excels in functionality but also adds an aesthetic touch to any commercial setting. Choose this closer for exceptional reliability and value in demanding environments.
HeavyDuty Surface Closer LTBRZ
Grade 1 Surface Door Closer, Hold Open Arm, PA Shoe, Push or Pull Side Mounting, 120 Degree Swing, Adjustable Size 1-6, Plastic Cover, Light Bronze Painted Finish, Non-Handed
LCN's most durable and flexible heavy duty closer designed for institutional and other demanding high traffic applications.
Durable, non-handed, heavy duty closer designed for the most demanding, high-use and abuse applications.
The LCN 4040XP sets a new standard for reliability, longevity and value with a beefier design and extraordinary performance testing that goes far beyond industry requirements. LCN built the 4040XP from the inside out, combining tougher, bolder construction with proven LCN technology. The result is a closer that’s stronger, smarter and delivers remarkable value in a variety of applications.
Manufacturer surcharge: $ 18.58
Accessible: Yes
Ada Compliance: Yes
Ansi: A156.4
Arm Type: Regular Hold Open Arm
Baa Qualified: Yes
Back Check: Adjustable
Base Material: Varies
Closer Size: 1 to 6
Cold Weather Fluid: Yes
Commercial Residential: Commercial
Country of origin: USA
Cover: Plastic
Degree Hold Open: Adjustable
Degree Swing: 120 Deg.
Delay: No
Finish: 691
Finish Family: Matte Bronze
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Grade: Grade 1
Handing: Non-Handed
Hold Open: Yes
Hold Open Type: Friction
Installation: Commercial
Limited Warranty: 30 Years
Mounting Group: Hydraulic
Mounting Location: Push or Pull Side
Mounting Style: Tri Mount
Origin: USA
Pack Height: 5.75"
Pack Height 2: 9.25"
Pack Length: 16"
Pack Length 2: 16.5"
Pack Qty: 1
Pack Volume: 391 in³
Pack Volume 2: 1907.81 in³
Pack Width: 4.25"
Pack Width 2: 12.5"
Product Height: 3.75"
Product Length: 12"
Product Width: 2.25"
Screw Type: Self-Tapping
Series: 4040XP Series Surface Mounted Closers
Ship Weight: 12 lbs.
Subtype: Surface Closers
Through Bolts: No
Type: Surface
Ul Listing: UL 10C
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 4
