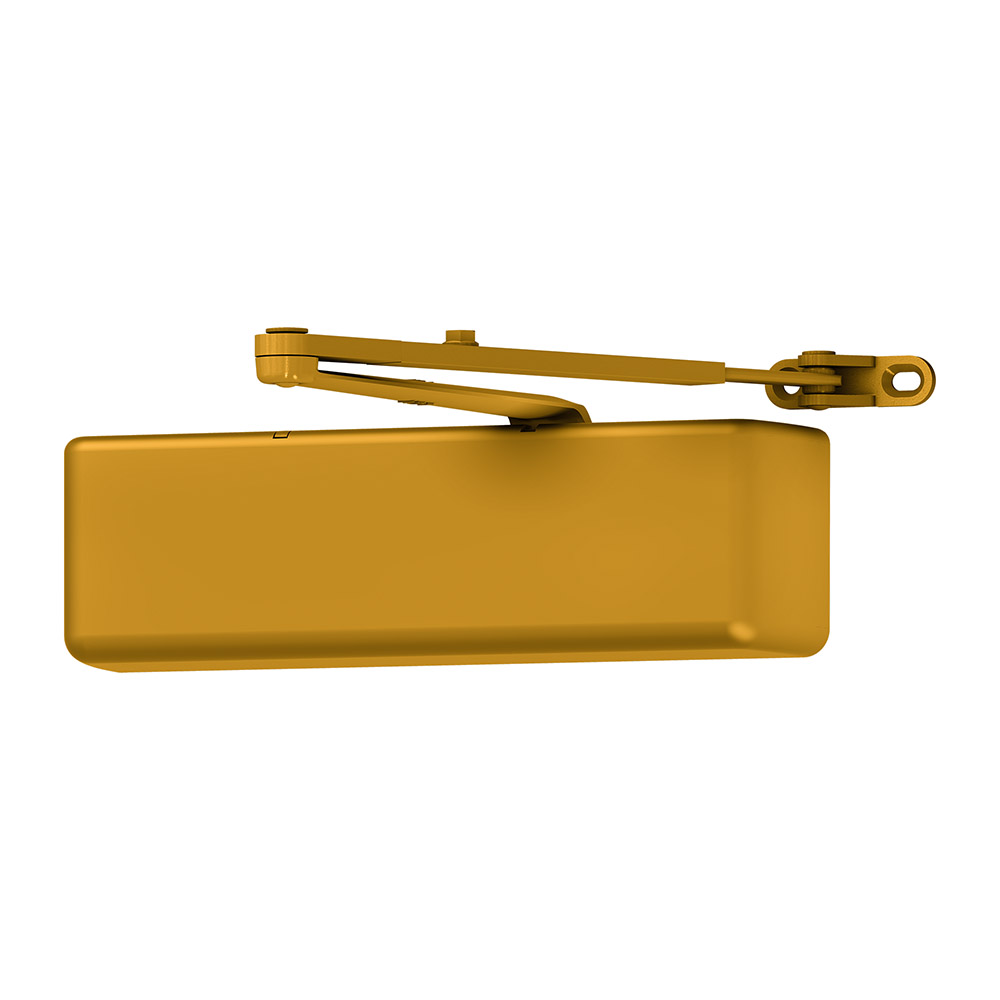

LCN 4040XP-REG 691 Heavy Duty Surface Closer LTBRZ is engineered for demanding high-traffic environments, making it the go-to choice for institutions and commercial settings. This Grade 1 surface door closer features a regular arm design compatible with both push and pull side mounting, accommodating a 120-degree swing. The adjustable size ranges from 1 to 6, allowing for customized installation based on specific door requirements. Built with durability in mind, the LCN 4040XP boasts a robust construction, including a 3/4" journal diameter pinion and the widest bearing ever at 5/8". The innovative V-shield™ seal extends the product's lifespan by 20%, ensuring reliable performance under heavy use. This non-handed closer is versatile, mountable on hinge side, top jamb, or parallel arm, and complies with ADA requirements. Installation is fast and efficient, thanks to the LCN® Fast™ Power Adjust feature, making it a preferred choice for contractors and building professionals. With a light bronze painted finish and optional custom powder coat, this closer combines functionality with aesthetic appeal. UL and cUL listed for self-closing doors without hold-open, the LCN 4040XP is designed to exceed industry standards, delivering exceptional value and longevity.
HeavyDuty Surface Closer LTBRZ
Grade 1 Surface Door Closer, Regular Arm, Push or Pull Side Mounting, 120 Degree Swing, Adjustable Size 1-6, Plastic Cover, Light Bronze Painted Finish, Non-Handed
LCN's most durable and flexible heavy duty closer designed for institutional and other demanding high traffic applications.
Durable, non-handed, heavy duty closer designed for the most demanding, high-use and abuse applications.
The LCN 4040XP sets a new standard for reliability, longevity and value with a beefier design and extraordinary performance testing that goes far beyond industry requirements. LCN built the 4040XP from the inside out, combining tougher, bolder construction with proven LCN technology. The result is a closer that’s stronger, smarter and delivers remarkable value in a variety of applications.
Accessible: Yes
Ada Compliance: Yes
Ansi: A156.4
Arm Type: Regular Arm
Baa Qualified: Yes
Back Check: Adjustable
Base Material: Varies
Closer Size: 1 to 6
Cold Weather Fluid: Yes
Commercial Residential: Commercial
Country of origin: USA
Cover: Plastic
Degree Swing: 120 Deg.
Delay: No
Finish: 691
Finish Family: Matte Bronze
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Grade: Grade 1
Handing: Non-Handed
Hold Open: No
Installation: Commercial
Limited Warranty: 30 Years
Mounting Group: Hydraulic
Mounting Location: Push or Pull Side
Mounting Style: Regular
Origin: USA
Pack Height: 5.75"
Pack Height 2: 9.25"
Pack Length: 16"
Pack Length 2: 16.5"
Pack Qty: 1
Pack Volume: 391 in³
Pack Volume 2: 1907.81 in³
Pack Width: 4.25"
Pack Width 2: 12.5"
Product Height: 3.75"
Product Length: 12"
Product Width: 2.25"
Screw Type: Self-Tapping
Series: 4040XP Series Surface Mounted Closers
Ship Weight: 13 lbs.
Subtype: Surface Closers
Through Bolts: No
Type: Surface
Ul Listing: UL 10C
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 4
