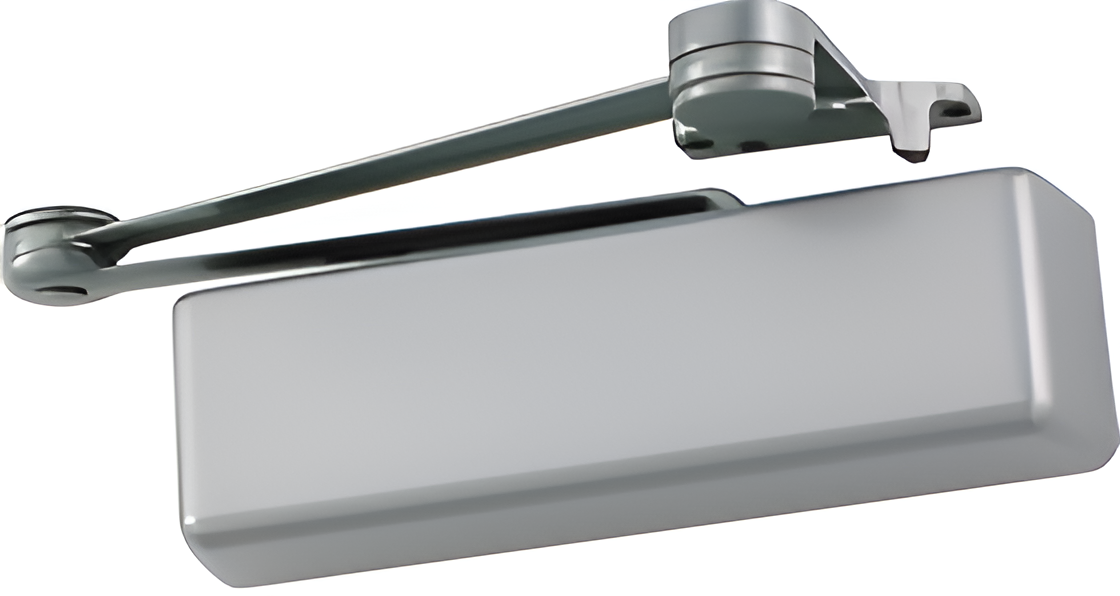

LCN 4041DEL-CUSH-AL Super Smoothee Adjustable Delay Door Closer, Aluminum FinishLCN 4041DELCUSHAL Super Smoothee Adjustable Surface Mounted Delay Door Closer with Cush N Stop Arm and Thru Bolts in a sleek Aluminum finish is engineered for rugged, high-traffic environments. Ideal for schools, hospitals, government buildings, and correctional facilities, this door closer ensures reliable operation during critical moments. With a remarkable lifespan of 15 to 20 years, LCN products are synonymous with durability and performance, providing peace of mind for facility managers. Featuring the LCN Green Dial, the 4041DELCUSHAL simplifies spring power adjustments, eliminating guesswork for users. Its solid forged steel main arm and forearm are designed to withstand the rigors of frequent use, while the spring-loaded stop in the soffit shoe ensures safe and smooth door operation. This model is adjustable up to 5 feet for interior doors and 4 feet for exterior applications, accommodating a variety of door sizes. The door closer's dimensions are 12-1/4" x 2-1/4" x 3-1/2", and it follows a diagonal mounting pattern with 2-1/4" spacing. UL 10C rated, it delivers reliable safety and performance. Backed by a limited 30-year warranty, the LCN 4041DELCUSHAL is your go-to solution for effective door control in demanding settings.
Super Smoothee Adjustable Surface Mounted Delay Door Closer with Cush N Stop Arm and Thru Bolts 689 Aluminum Finish
LCN products can be found in many high-traffic facilities such as schools, hospitals, government buildings, and correctional facilities. With innovative door closure solutions, LCN products are trusted to work seamlessly during critical moments. With our high standards of performance, customers have peace of mind knowing their facilities are protected. We have 35 different series of closers and door hardware to choose from and 15 to 20 years of operating life on our products. LCN has unmatched expertise to meet all safety and security challenges.
- Stop in the Soffit Shoe
- Solid Forged Steel Main Arm and Forearm with Spring Loaded Stop in Soffit Shoe
- For Rugged, High Traffic Applications
- LCN Green Dial to take the guesswork out of spring power adjustments
- Adjustable to 5' for Interior Doors and to 4' for Exterior Doors
Attributes
Alternate Codes: 4041DEL-CUSH-AL, 4041DELCUSHAL, LCN4041DELCUSHAL
Arm Function: Compression Stop
Arm Type: Cush-n-Stop Arm
Category: Door Closers and Accessories
Certifications: A156.4, ANSI, Buy American Act, UL 10C
Closer Type: Surface Mounted Closer
Cover: Plastic
Cylinder Type: Delayed Action Cylinder
Dimension: 12-1/4" x 2-1/4" x 3-1/2"
Door Application: Door Closers, Surface Mount Closers
Fasteners: TB Self Reaming & Tapping Screws
Finish: Aluminum
Finish Code: 689 (AL)
Finish Color: Aluminum Powder Coated, EN, Sprayed Aluminum
Grade: Grade 1
Hazardous Material: NO
Hold Open: No
Manufacturer: LCN Closers
Manufacturer Warranty: Limited 30 Year Warranty
Material: Cast Iron
Mounting: Hinge (Pull Side), Parallel Arm (Push Side), Top jamb (Push Side)
Mounting Hole Pattern: 1" Diagonal Mounting with 2-1/4" Spacing
Mounting Style: Surface Mounting
No Of Inners: 1
Order_ Qty: 1
PO date: 2024-09-23
Series: 4040XP Series
Spring Size: Adjustable 1-6 Size
Subcategory: Surface Mount Closers
Type: DOOR CLOSERS
Ul Listing Type: UL 10C Rated
