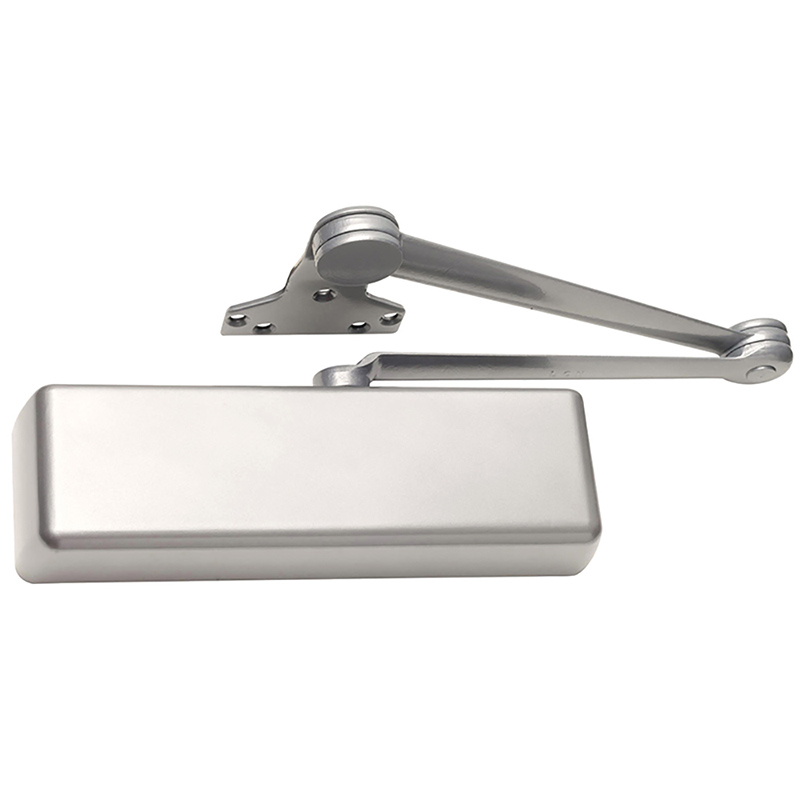

LCN 4041DEL-EDA 689 Heavy-Duty Surface Door Closer ALLCN 4041DEL-EDA 689 Heavy Duty Surface Closer AL is a Grade 1 surface door closer engineered for exceptional performance in demanding, high-traffic environments. Designed with an extra-duty arm and push side mounting, this closer accommodates a 180-degree swing and offers adjustable sizes from 1 to 6, making it versatile for various door applications. Constructed for durability, the LCN 4041 features a robust aluminum painted finish and a plastic cover, ensuring longevity even in the most challenging conditions. Its delayed action function enhances user convenience while meeting ADA requirements, making it accessible for all users. The closer is non-handed, allowing for easy installation on either right or left swinging doors. This model boasts a range of impressive specifications, including adjustable back check and the ability to mount in hinge side, top jamb, or parallel arm configurations. The upgraded design incorporates a stronger pinion, wider bearing, and enhanced seal for durability, providing a reliable solution that exceeds industry standards. UL and cUL listed for self-closing doors, the LCN 4041DEL-EDA is the ideal choice for institutional applications, combining strength, reliability, and ease of installation to meet your needs.
Heavy Duty Surface Closer AL
Grade 1 Surface Door Closer, Extra Duty Arm, Push Side Mounting, 180 Degree Swing, Adjustable Size 1-6, Plastic Cover, Delayed Action, Aluminum Painted Finish, Non-Handed
LCN's most durable and flexible heavy duty closer designed for institutional and other demanding high traffic applications.
Durable, non-handed, heavy duty closer designed for the most demanding, high-use and abuse applications.
The LCN 4040XP sets a new standard for reliability, longevity and value with a beefier design and extraordinary performance testing that goes far beyond industry requirements. LCN built the 4040XP from the inside out, combining tougher, bolder construction with proven LCN technology. The result is a closer that’s stronger, smarter and delivers remarkable value in a variety of applications.
- 44% increased bearing load capacity
- Strongest pinion ever, at 3/4" journal diameter
- Widest bearing ever, at 5/8"
- Stronger pinion teeth
- New V-shield™ seal with 20% longer life
- XP = eXtra Protection in real world applications
- Cast Iron
- Forged Steel Arm
- Double Heat Treated Steel Pinion
- All Weather Fluid
- Non-Handed
- LCN® Fast™ Power Adjust
- Fast & Accurate Installation
- UL & cUL Listed
- Tested and certified under ANSI Standard A156.4, grade one
- Non-sized cylinder is adjustable for interior doors to 5’0” and exterior doors to 4'0"
- Closer can mount hinge side, top jamb, or parallel arm (with PA bracket) on either right or left swinging doors
- Closers to meet ADA requirements
- Standard or optional custom powder coat finish
- Optional plated finish on metal cover, arm and fasteners
- Optional SRI primer for installations in corrosive conditions is available with powder coat only
- UL and cUL listed for self-closing doors without hold-open
- 4040XP can be used with all 4040 accessories
Attributes
Manufacturer surcharge: $ 0.0
Accessible: Yes
Ada Compliance: Yes
Ansi: A156.4
Arm Type: Parallel Arm, Heavy Duty
Baa Qualified: Yes
Back Check: Adjustable
Base Material: Varies
Closer Size: 1 to 6
Cold Weather Fluid: Yes
Commercial Residential: Commercial
Country of origin: USA
Cover: Plastic
Degree Swing: 180 Deg.
Delay: Yes
Finish: 689
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Grade: Grade 1
Handing: Non-Handed
Hold Open: No
Installation: Commercial
Limited Warranty: 30 Years
Mounting Group: Hydraulic
Mounting Location: Push Side
Mounting Style: Parallel Arm
Origin: USA
Pack Height: 5.75"
Pack Height 2: 9.25"
Pack Length: 16"
Pack Length 2: 16.5"
Pack Qty: 1
Pack Volume: 391 in³
Pack Volume 2: 1907.81 in³
Pack Width: 4.25"
Pack Width 2: 12.5"
Product Height: 3.75"
Product Length: 12"
Product Width: 2.25"
Screw Type: Self-Tapping
Series: 4040XP Series Surface Mounted Closers
Ship Weight: 12.6 lbs.
Subtype: Surface Closers
Through Bolts: No
Type: Surface
Ul Listing: UL 10C
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 4
Upc: 144568
