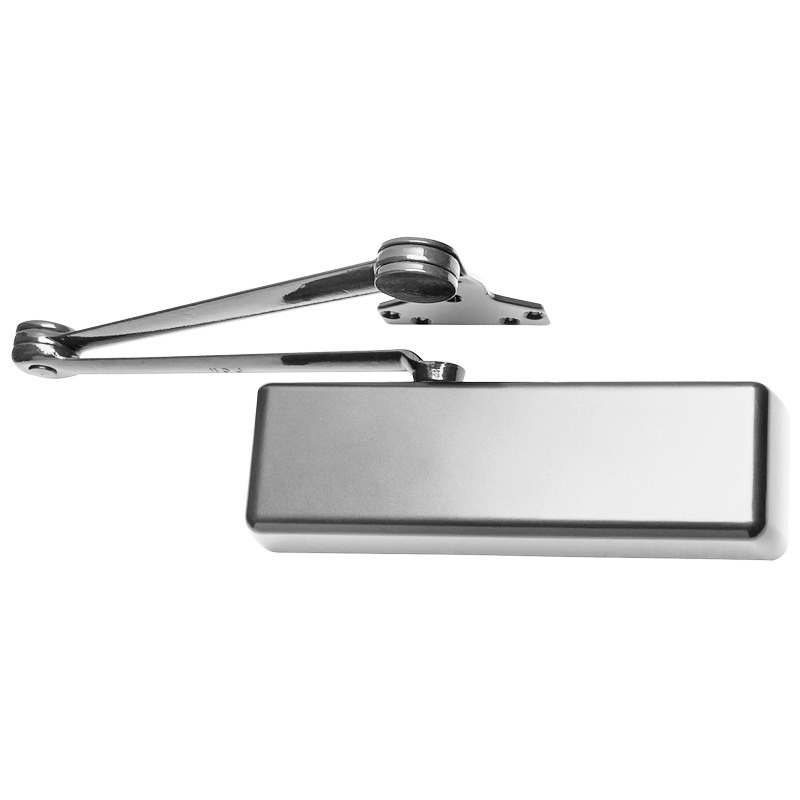

LCN 4041DEL-HEDA RH 689 Heavy Duty Surface Closer AL is engineered for demanding environments, making it an ideal choice for institutional and high-traffic applications. This Grade 1 surface door closer features a hold-open extra duty arm, allowing for convenient access while ensuring the door remains securely closed when needed. With an adjustable size range of 1-6, this closer accommodates various door dimensions, offering flexibility in installation. Designed for durability, the LCN 4041DEL-HEDA is non-handed and mounts on the push side, supporting a full 180-degree swing. Its aluminum painted finish not only enhances aesthetics but also provides resilience against wear. The delayed action feature aids in safety, ensuring smooth operation even in busy settings. This closer boasts impressive specifications, including a robust construction with a strong pinion and widened bearing for enhanced load capacity. The adjustable back check and all-weather fluid further ensure reliability across conditions. UL and cUL listed, it meets ADA requirements, making it suitable for a range of commercial spaces. With a limited warranty of 30 years, the LCN 4041DEL-HEDA Heavy Duty Surface Closer stands as a trusted solution for those seeking both performance and longevity in their door hardware.
Heavy Duty Surface Closer AL
Grade 1 Surface Door Closer, Hold Open Extra Duty Arm, Push Side Mounting, 180 Degree Swing, Adjustable Size 1-6, Plastic Cover, Delayed Action, Aluminum Painted Finish, Right-Handed
LCN's most durable and flexible heavy duty closer designed for institutional and other demanding high traffic applications.
Durable, non-handed, heavy duty closer designed for the most demanding, high-use and abuse applications.
The LCN 4040XP sets a new standard for reliability, longevity and value with a beefier design and extraordinary performance testing that goes far beyond industry requirements. LCN built the 4040XP from the inside out, combining tougher, bolder construction with proven LCN technology. The result is a closer that’s stronger, smarter and delivers remarkable value in a variety of applications.
Accessible: Yes
Ada Compliance: Yes
Ansi: A156.4
Arm Type: Parallel Arm, Heavy Duty Friction Hold
Baa Qualified: Yes
Back Check: Adjustable
Base Material: Varies
Closer Size: 1 to 6
Cold Weather Fluid: Yes
Commercial Residential: Commercial
Country of origin: USA
Cover: Plastic
Degree Hold Open: Adjustable
Degree Swing: 180 Deg.
Delay: Yes
Finish: 689
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Grade: Grade 1
Handing: Right-Handed
Hold Open: Yes
Hold Open Type: Friction
Installation: Commercial
Limited Warranty: 30 Years
Mounting Group: Hydraulic
Mounting Location: Push Side
Mounting Style: Parallel Arm
Origin: USA
Pack Height: 5.75"
Pack Height 2: 9.25"
Pack Length: 16"
Pack Length 2: 16.5"
Pack Qty: 1
Pack Volume: 391 in³
Pack Volume 2: 1907.81 in³
Pack Width: 4.25"
Pack Width 2: 12.5"
Product Height: 3.75"
Product Length: 12"
Product Width: 2.25"
Screw Type: Self-Tapping
Series: 4040XP Series Surface Mounted Closers
Ship Weight: 14 lbs.
Subtype: Surface Closers
Through Bolts: No
Type: Surface
Ul Listing: UL 10C
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 4
