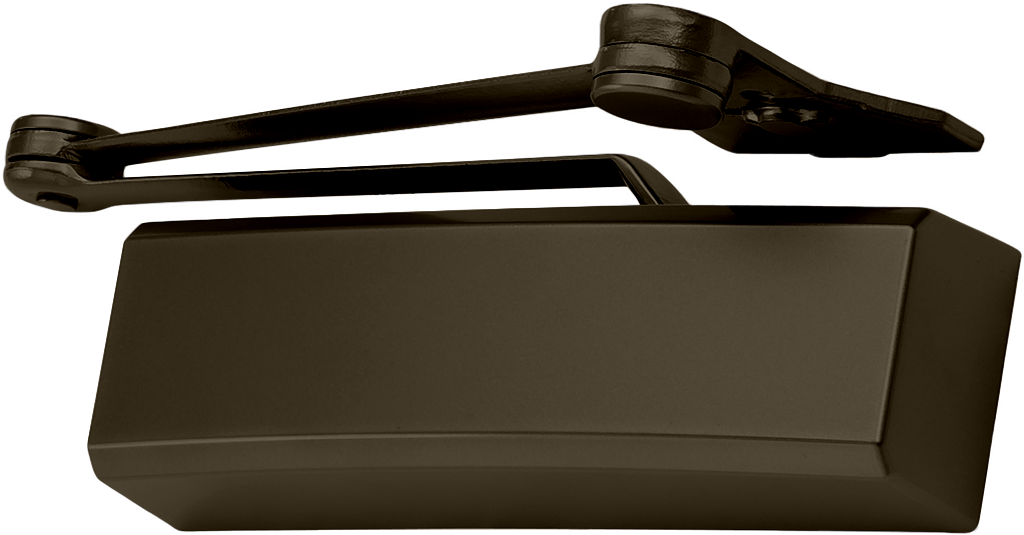

LCN 4050A-EDA-DKBRZ Heavy Duty Door Closer, Cast Aluminum, ADA Adjustable, Dark Bronze Finish

LCN Closers 4050A-EDA-DKBRZ Heavy Duty Door Closer is expertly designed for high-traffic environments, delivering exceptional durability and performance. Constructed from cast aluminum, this surface-mounted closer features an extra duty arm and a plastic cover, ensuring it withstands the rigors of daily use. With an ADA adjustable spring size range of 1-6, it accommodates various door conditions while meeting Grade 1 standards for reliability. This model boasts a full-complement bearing and a 1-1/2" diameter piston, paired with a double heat-treated steel pinion journal for enhanced longevity. It utilizes All-Weather Liquid X fluid, ensuring consistent operation in diverse climates. The 4050A series is not just robust but also versatile, featuring a universal non-handed design and a standard plastic cover, with an option for a full metal cover. Installation is straightforward with a templating pattern of 2-3/8" x 6-3/4" and the ability to mount on the hinge side, top jamb, or parallel arm. The closer also comes with a TBSRT screw pack for quick setup. With a 25-year warranty, the LCN 4050A-EDA-DKBRZ is an excellent investment for any commercial application, providing peace of mind and quality assurance.

Heavy Duty Door Closer, Cast Aluminum, Surface Mount, Extra Duty Arm, Plastic Cover, ADA Adjustable Spring Size 1-6, Grade 1, TBSRT Screw Pack, 695/DKBRZ Dark Bronze Powder Coat

The 4050A series cast aluminum closer is engineered for durability, and built tough to excel in the harsh environments of high-frequency and highly abusive traffic areas. Featuring the most common commercial footprint, it is ideal for commercial building applications that demand a combination of quality, reliability and value. This cast aluminum door closer offers premium features like powder coating, a full-complement bearing, all-weather fluid and a 25-year warranty. With a standard full plastic cover and optional full metal cover, 6 standard colors and unlimited custom colors, the 4050A series is the right choice for a wide range of heavy-duty applications.

Features:

• Cast aluminum cylinder with full-complement bearing
• 1-1/2" diameter piston
• Double heat-treated steel pinion journal
• All-weather Liquid X fluid
• Patent-pending design
• 25-year warranty
• Universal non-handed
• Standard plastic cover
• Adjustable spring sizes 1-6

Specifications:

• Certifications: Grade 1 - ANSI A156.4, UL 10C, ADA, 100 hour salt spray, meets BAA - buy American Act
• Body Construction:
• Cast aluminum body
• Full complement bearing
• 1-1⁄2" diameter piston
• 11⁄16" diameter double heat treated pinion journal
• Fluid: All weather liquid X fluid
• Handing: Non-handed
• Templating: 2-3⁄8" x 6-3⁄4" mounting hole pattern
• Size: Adjustable spring size 1-6
• Cover:
• Plastic cover (PC), standard
• Metal cover (MC), optional
• Fasteners: Self reaming and tapping screws (SRT)
• Mounting: Hinge (pull side), top jamb (push side), parallel arm (push side)

Optional Arms:

• 4050A-3077: Regular Arm (REGARM)
• Non-handed
• Mounts pull side or top jamb with shallow reveal
• Includes PA shoe, 4050A-62PA required for parallel arm mounting
• 4050A-3077L: Long Arm (LONG)
• Non-handed
• Includes long rod and shoe, 4050A-79LR for top jamb mount
• Optional
• 4050A-3049: Hold Open Arm (H)
• Non-handed
• Mounts pull side or top jamb with shallow reveal
• Hold open adjustable shoe
• 4050A closer includes 4050A-62PA shoe required for parallel arm mounting
• Optional
• 4050A-3049L: Hold Open Long Arm (HLONG)
• Non-handed
• Hold open adjustable shoe
• Includes long head and tube, 4050A-3048L for top jamb mount
• Optional
• 4050A-3077EDA: Extra Duty Arm (EDA)
• Non-handed
• Features forged, solid steel main and forearm for potentially abusive installations
• 4050A-3049EDA: Hold Open Extra Duty Arm (HEDA)
• Handed
• Features forged, solid steel main and forearm for potentially abusive installations
• Hold open function is adjusted at the shoe
• 4050A-3077EDA/62G: Extra Duty Arm with 62G Thick Hub Shoe (EDAW62G)
• Non-handed
• Features forged, solid steel main and forearm for potentially abusive installations
• 62G shoe provides additional blade stop clearance for use with additional door hardware such as an overhead holder
• 4050A-3049EDA/62G: Hold Open Extra Duty Arm with 62G Thick Hub Shoe (HEDA62G)
• Handed
• Features forged, solid steel main and forearm for potentially abusive installations
• 62G shoe provides additional blade stop clearance for use with additional door hardware such as an overhead holder
• Hold open function is adjusted at the shoe
• 4050A-3077CNS: Cush-n-Stop Arm (CUSH)
• Non-handed
• Features solid forged steel main arm and forearm with stop in soffit shoe
• Optional
• 4050A-3049CNS: Hold Open Cush-n-Stop Arm (HCUSH)
• Provides hold open function with templated stop/hold open points
• Handle controls hold open function
• 4050A-3077SCNS: Spring Cush-n-Stop Arm (SCUSH)
• Non-handed
• For potentially abusive applications features solid forged steel main arm and forearm with spring loaded stop in the soffit shoe
• Optional
• 4050A-3049SCNS: Spring Hold Open Cush-n-Stop Arm (SHCUSH)
• Non-handed
• For potentially abusive applications features solid forged steel main arm and forearm with spring loaded stop in the soffit shoe
• Handle controls hold open function
• Optional

Finishes:

• 622 - Matte black
• 689 - Aluminum
• 690 - Statuary bronze
• 691 - Light bronze
• 693 - Gloss black
• 695 - Dark bronze
• 696 - Brass
