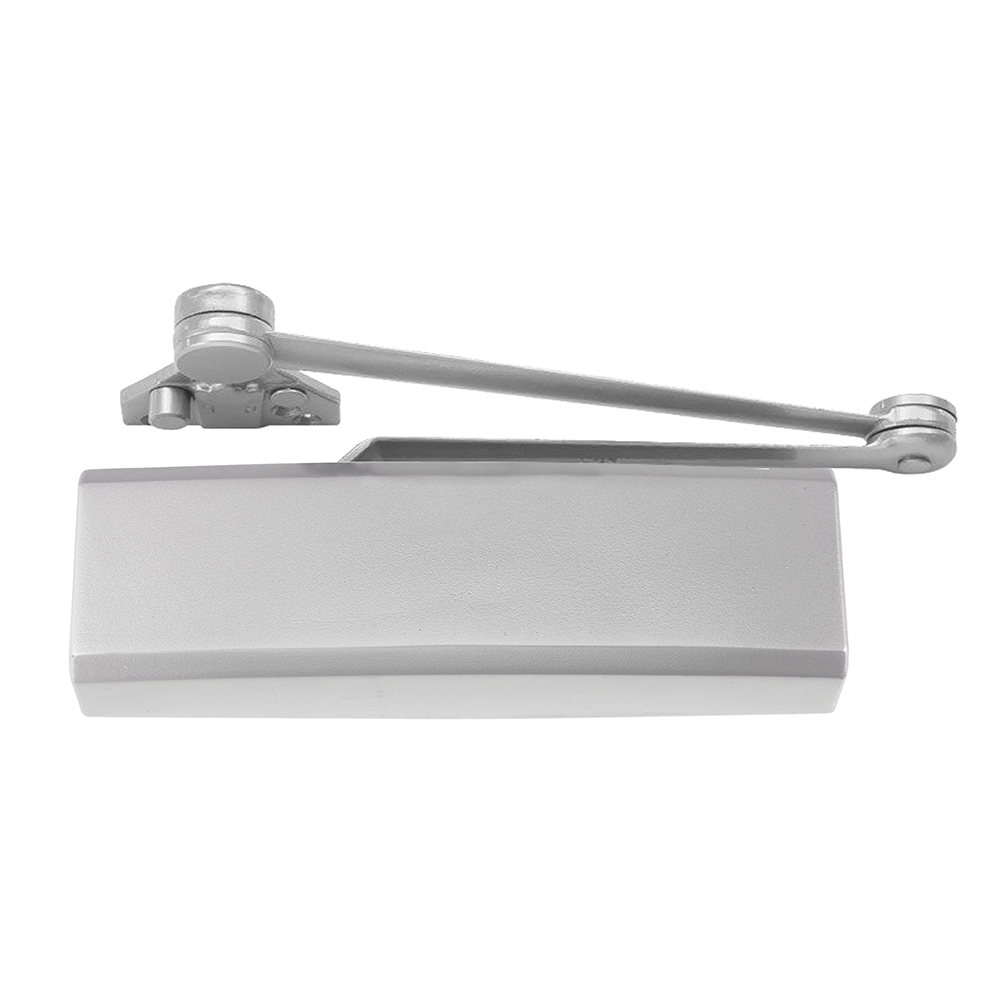

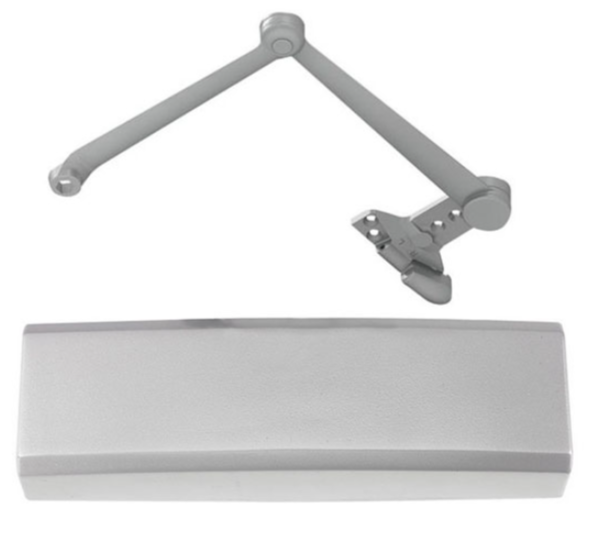

LCN 4050ASHCUSHAL Surface Mount Adjustable 1-6 Door Closer with Spring Hold Open Cush Arm features a robust design that enhances both functionality and aesthetics for various door applications. This surface-mounted closer is engineered to provide reliable performance, making it an ideal choice for commercial and institutional settings. With dimensions of 12-7/8" x 3-7/8" x 2-13/16", this closer boasts an aluminum finish (689) that not only adds a sleek look but also ensures durability. The adjustable spring size (1-6) allows for customization to accommodate different door weights and usage patterns, ensuring optimal closing speed and force. The integrated spring hold open feature offers added convenience, allowing doors to remain open at desired angles, which is particularly beneficial in high-traffic areas. The UL 10C rating ensures compliance with safety standards, giving you peace of mind in your selection. Installation is straightforward with a rectangular mounting hole pattern of 2-3/8" x 6-3/4", making it adaptable to various door types. Backed by a limited 1-year warranty, the LCN 4050ASHCUSHAL is a reliable choice for professionals seeking quality door hardware solutions.
Attributes
Alternate Codes: 4050A-SHCUSH-AL, 4050ASHCUSHAL
Arm Function: Compression Stop, Hold Open
Arm Type: Spring Hold Open Cush-n-Stop Arm
Baa Qualified: Yes
Category: Door Closers and Accessories
Certifications: A156.4, ANSI, UL 10C
Closer Type: Surface Mounted Closer
Country of Origin: Usa
Cover: Plastic
Cylinder Type: Standard
Dimension: 12-7/8" x 3-7/8" x 2-13/16"
Door Application: Door Closers, Surface Mount Closers
Fasteners: Self Reaming & Tapping Screws
Finish: Aluminum
Finish Code: 689 (AL)
Finish Color: Aluminum Powder Coated, EN, Sprayed Aluminum
Finish Description: Aluminum Painted
Grade: Grade 1
Hazardous Material: NO
Hold Open: Yes
Limited Warranty: 25 Years
Manufacturer: LCN Closers
Manufacturer Warranty: Limited 1 Year Warranty
Material: Cast Aluminum
Mounting: Hinge (Pull Side), Parallel Arm (Push Side), Top jamb (Push Side)
Mounting Hole Pattern: 2-3/8" x 6-3/4" Rectangular Mounting
No Of Inners: 1
Order_ Qty: 1
PO date: 2024-11-07
Series: 4050A Series
Spring Size: Adjustable 1-6 Size
Subcategory: Surface Mount Closers
Subtype: Surface Mount Closers
Type: Door Closers and Accessories
Ul Listing Type: UL 10C Rated
