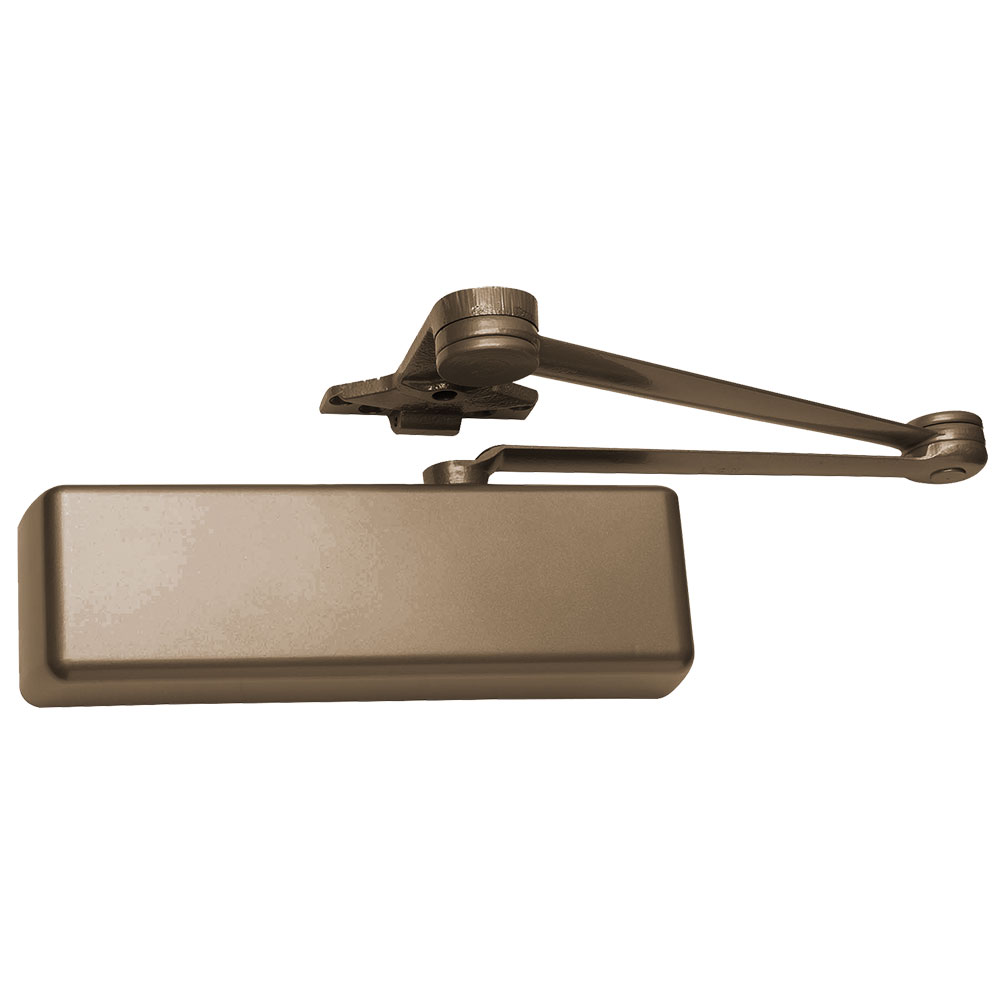

LCN 4111-CUSH LH 690 Heavy Duty Surface Door Closer

LCN 4111-CUSH LH 690 Heavy Duty Surface Closer STAT is a Grade 1 surface door closer designed for high-traffic environments, making it an ideal choice for institutional settings. This model features a Cush-N-Stop arm and is mounted on the push side with a parallel arm configuration, allowing for a 110-degree swing. The closer is adjustable for door sizes ranging from 1 to 5, accommodating both interior and exterior applications. Crafted from durable cast iron, the 4110 Series includes an extra duty forged steel standard arm, ensuring long-lasting performance. Its all-weather fluid allows reliable operation in varying conditions, while the full plastic cover provides a sleek appearance and protection against wear. This left-handed model is UL and cUL listed, meeting ADA requirements and ANSI Standard A156.4, grade one certification. With a limited 30-year warranty, users can trust in the quality and longevity of the LCN 4111-CUSH. Optional custom powder coat finishes and plated options for the metal cover and arm enhance versatility, while the dead stop feature ensures safe operation. The 4111 is perfect for commercial installations, combining functionality and reliability in a heavy-duty package.

Heavy Duty Surface Closer STAT

Grade 1 Surface Door Closer, Cush-N-Stop Arm, Push Side Parallel Arm Mounting, 110 Deg. Swing, Size 1 to 5, Full Plastic Cover, Statuary Bronze Finish, Left-Handed

The 4110 is LCN's best performing parallel arm mounted heavy duty surface door closer designed for institutional and other high traffic applications.

The 4110 Series is LCN’s best performing heavy duty closer designed specifically for institutional and other rugged high traffic applications.

The 4110 Series is a cast iron closer that features an extra duty forged steel standard arm. The fast and accurate installation is also a feature that always impresses as well as the all weather fluid.

• Standard 4110 series closer is shipped with extra duty arm, standard plastic cover, 4110-201 fifth screw spacer and self reaming and tapping screws
• Sized cylinders adjustable for interior doors to 5’0” and exterior doors to 4’0”
• Non-sized cylinder adjustable for interior doors to 4’6” and exterior doors to 3’6”
• Closer mounts parallel arm, specify right or left swinging door
• 4111 cylinder meets ADA requirements
• Standard or optional custom powder coat finish
• Optional plated finish on metal cover, arm and fasteners
• Optional SRI primer for installations in corrosive conditions is available with powder coat only
• The 4110 Series is UL and cUL listed for self-closing doors without holdopen
• Tested and certified under ANSI Standard A156.4, grade one

Resources

• 4110 Series Surface Mounted Closers Cut Sheet
• LCN 4000 Series Catalog
• LCN 4010, 4020 & 4110 Door Closer w/ Fusible Link Arm Installation Guide
• LCN 4110 Drop Plates Installation Guide
• LCN 4110 Peel-N-Stick CUSH Installation Guide
• LCN 4110 Peel-N-Stick Installation Guide
• LCN 4110 Series Cut Sheet
• LCN Closers & Auto Operators Installation Guide
• LCN Drop Plates Installation Guide for 4110, 4110 CUSH, 4210, 4210 CUSH, 4110T, 4210T
• Von Duprin Finishes Chart
