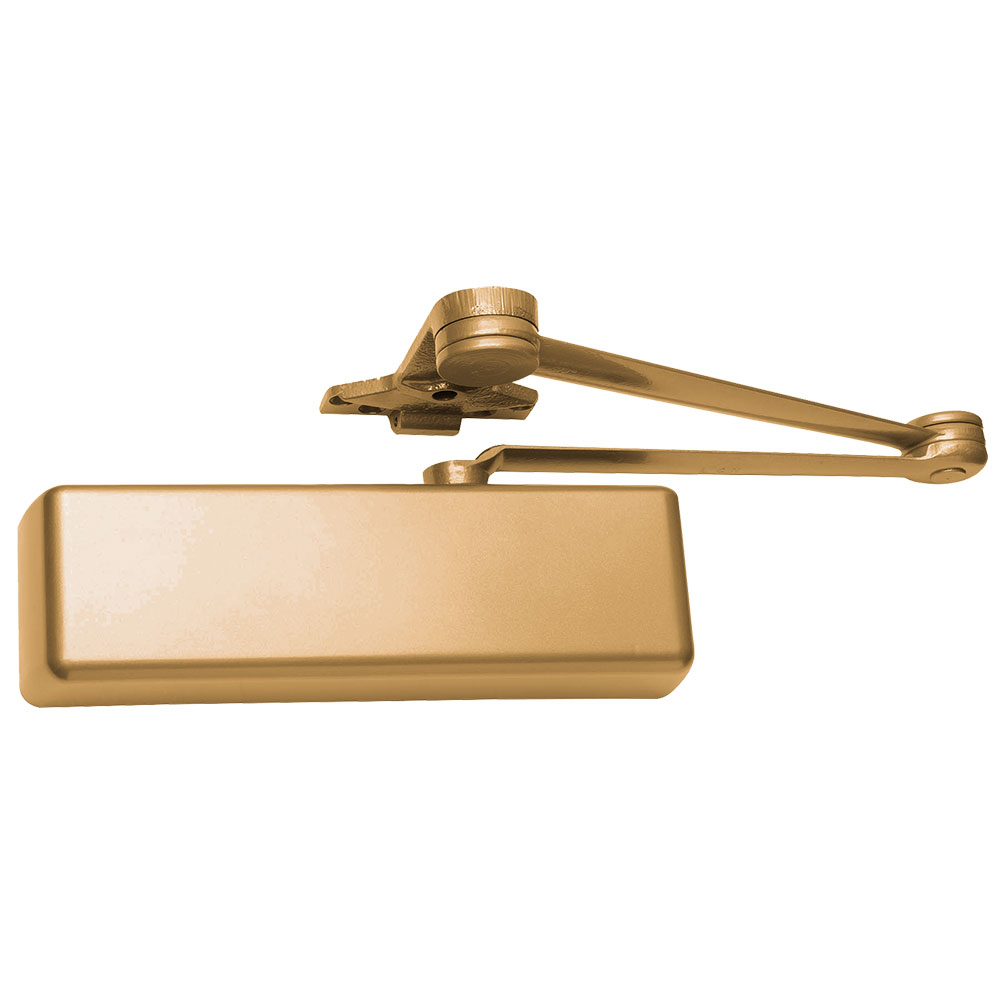

LCN 4111-CUSH RH 691 Heavy-Duty Surface Closer LTBRZ

LCN 4111-CUSH RH 691 Heavy Duty Surface Closer LTBRZ is designed for high traffic and institutional environments, offering exceptional performance and durability. As a Grade 1 surface door closer, it features a Cush-N-Stop arm and is mounted on the push side with a parallel arm, allowing for a smooth 110-degree swing. This model accommodates door sizes ranging from 1 to 5, ensuring versatility for various applications. Constructed from cast iron with an extra duty forged steel standard arm, the 4111 is engineered to withstand rigorous usage. The installation process is hassle-free, thanks to its fast and accurate setup. Additionally, it comes equipped with all-weather fluid for reliable operation, even in extreme conditions. The closer meets ADA requirements and is UL and cUL listed for self-closing doors without hold-open features, ensuring compliance with safety standards. Its full plastic cover and light bronze finish enhance both aesthetics and protection against the elements. The closer is also backed by a 30-year limited warranty, affirming its long-lasting quality. For those seeking a robust solution for commercial applications, the LCN 4111-CUSH RH 691 stands out as a top choice, combining functionality and reliability in one premium package.

HeavyDuty Surface Closer LTBRZ

Grade 1 Surface Door Closer, Cush-N-Stop Arm, Push Side Parallel Arm Mounting, 110 Deg. Swing, Size 1 to 5, Full Plastic Cover, Light Bronze Finish, Right-Handed

The 4110 is LCN's best performing parallel arm mounted heavy duty surface door closer designed for institutional and other high traffic applications.

The 4110 Series is LCN’s best performing heavy duty closer designed specifically for institutional and other rugged high traffic applications.

The 4110 Series is a cast iron closer that features an extra duty forged steel standard arm. The fast and accurate installation is also a feature that always impresses as well as the all weather fluid.

• Standard 4110 series closer is shipped with extra duty arm, standard plastic cover, 4110-201 fifth screw spacer and self reaming and tapping screws
• Sized cylinders adjustable for interior doors to 5’0” and exterior doors to 4’0”
• Non-sized cylinder adjustable for interior doors to 4’6” and exterior doors to 3’6”
• Closer mounts parallel arm, specify right or left swinging door
• 4111 cylinder meets ADA requirements
• Standard or optional custom powder coat finish
• Optional plated finish on metal cover, arm and fasteners
• Optional SRI primer for installations in corrosive conditions is available with powder coat only
• The 4110 Series is UL and cUL listed for self-closing doors without holdopen
• Tested and certified under ANSI Standard A156.4, grade one

Resources

• 4110 Series Surface Mounted Closers Cut Sheet
• 4110 Series Surface Mounted Closers Cut Sheet
• LCN 4000 Series Catalog
• LCN 4000 Series Metal Templates Data Sheet
• LCN 4010, 4020 & 4110 Door Closer w/ Fusible Link Arm Installation Guide
• LCN 4110 Drop Plates Installation Guide
• LCN 4110 Peel-N-Stick CUSH Installation Guide
• LCN 4110 Peel-N-Stick Installation Guide
• LCN 4110 Series Cut Sheet
• LCN Closers & Auto Operators Installation Guide
• LCN Drop Plates Installation Guide for 4110, 4110 CUSH, 4210, 4210 CUSH, 4110T, 4210T
• Von Duprin Finishes Chart
