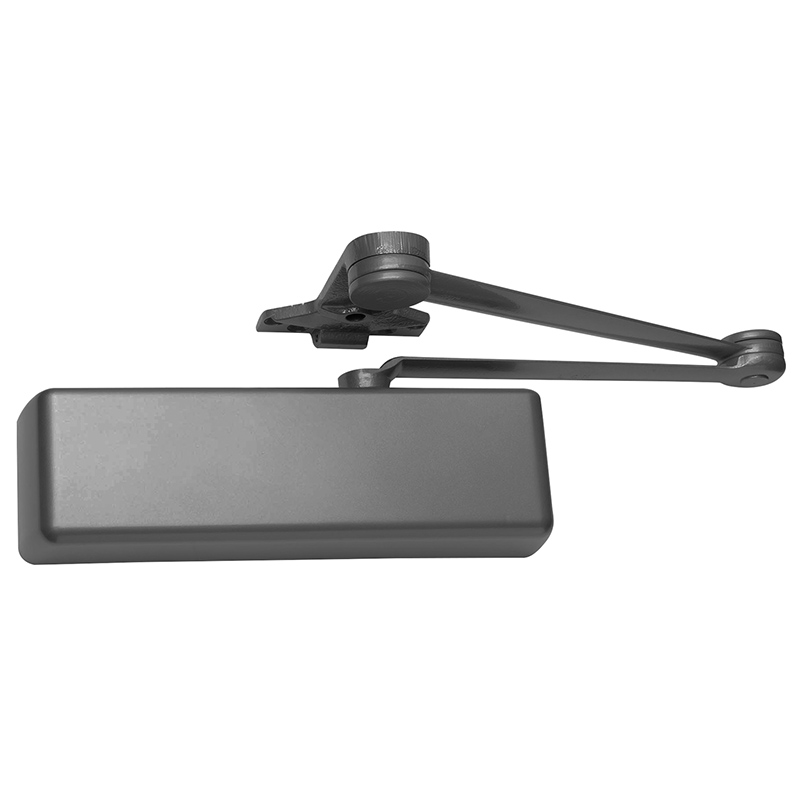

LCN 4111-CUSH RH 693 Heavy-Duty Surface Closer - GLBLK

LCN 4111-CUSH RH 693 Heavy Duty Surface Closer GLBLK delivers exceptional performance for high-traffic and institutional applications. Designed with a Cush-N-Stop arm and a push side parallel arm mounting, this Grade 1 closer accommodates door swings of up to 110 degrees and is adjustable to sizes 1 through 5, making it versatile for various door configurations. Crafted from durable cast iron, the 4111 features an extra duty forged steel arm, ensuring longevity and reliability even in demanding environments. Its full plastic cover provides an appealing black finish while protecting the internal components. Installation is quick and efficient, thanks to the included self-reaming and tapping screws and the 4110-201 fifth screw spacer. This model meets ADA requirements and is UL and cUL listed for self-closing doors without hold-open features. With cold weather fluid included, it performs reliably in various climates. The 4111 is engineered to exceed expectations, offering a limited 30-year warranty for peace of mind. Ideal for commercial settings, this surface closer is a practical choice for anyone seeking robust door control solutions.

HeavyDuty Surface Closer GLBLK

Grade 1 Surface Door Closer, Cush-N-Stop Arm, Push Side Parallel Arm Mounting, 110 Deg. Swing, Size 1 to 5, Full Plastic Cover, Black Finish, Right-Handed

The 4110 is LCN's best performing parallel arm mounted heavy duty surface door closer designed for institutional and other high traffic applications.

The 4110 Series is LCN’s best performing heavy duty closer designed specifically for institutional and other rugged high traffic applications.

The 4110 Series is a cast iron closer that features an extra duty forged steel standard arm. The fast and accurate installation is also a feature that always impresses as well as the all weather fluid.

• Standard 4110 series closer is shipped with extra duty arm, standard plastic cover, 4110-201 fifth screw spacer and self reaming and tapping screws
• Sized cylinders adjustable for interior doors to 5’0” and exterior doors to 4’0”
• Non-sized cylinder adjustable for interior doors to 4’6” and exterior doors to 3’6”
• Closer mounts parallel arm, specify right or left swinging door
• 4111 cylinder meets ADA requirements
• Standard or optional custom powder coat finish
• Optional plated finish on metal cover, arm and fasteners
• Optional SRI primer for installations in corrosive conditions is available with powder coat only
• The 4110 Series is UL and cUL listed for self-closing doors without holdopen
• Tested and certified under ANSI Standard A156.4, grade one

Resources

• 4110 Series Surface Mounted Closers Cut Sheet
• LCN 4000 Series Catalog
• LCN 4010, 4020 & 4110 Door Closer w/ Fusible Link Arm Installation Guide
• LCN 4110 Drop Plates Installation Guide
• LCN 4110 Peel-N-Stick CUSH Installation Guide
• LCN 4110 Peel-N-Stick Installation Guide
• LCN 4110 Series Cut Sheet
• LCN Closers & Auto Operators Installation Guide
• LCN Drop Plates Installation Guide for 4110, 4110 CUSH, 4210, 4210 CUSH, 4110T, 4210T
• Von Duprin Finishes Chart
