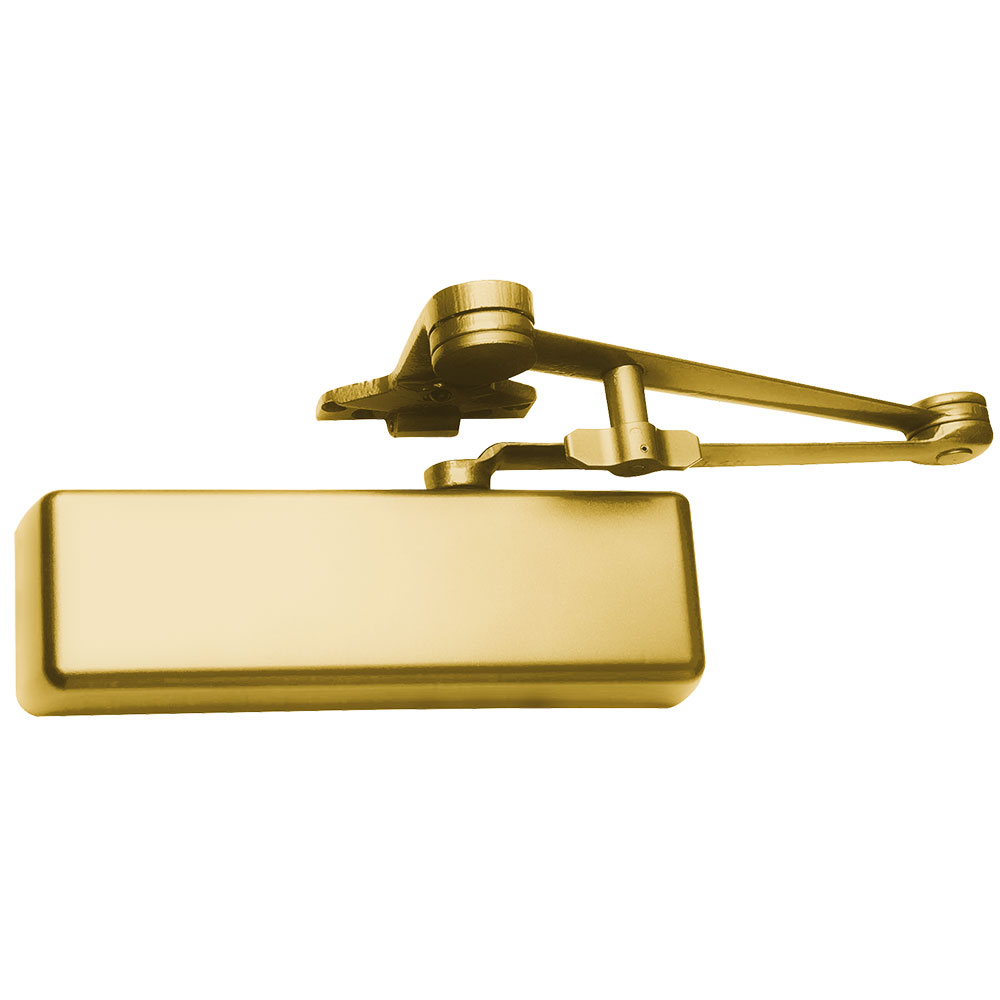

LCN 4111-HCUSH LH 696 Heavy-Duty Brass Surface Closer

LCN 4111-HCUSH LH 696 Heavy Duty Surface Closer in a sophisticated Satin Brass finish is engineered for high-traffic environments, making it an exceptional choice for institutional settings. This Grade 1 surface door closer features a Hold Open Cush-N-Stop arm that allows for a 110-degree swing, ensuring smooth operation while accommodating various door sizes from 1 to 5. The durable cast iron construction combined with an extra duty forged steel arm guarantees longevity and reliability. Designed for left-handed installations, the 4111 model is built with versatility in mind, suitable for both interior and exterior doors. It meets ADA requirements and is UL and cUL listed, ensuring compliance with safety standards. The closer is equipped with cold weather fluid for optimal performance in harsh conditions, and its full plastic cover adds an extra layer of protection. Installation is straightforward, with the closer shipped complete with necessary hardware, including a fifth screw spacer and self-reaming screws. With a limited 30-year warranty, the LCN 4111-HCUSH offers peace of mind alongside its robust functionality. Choose this closer for seamless operation and dependable security in your commercial applications.

HeavyDuty Surface Closer BRASS

Grade 1 Surface Door Closer, Hold Open Cush-N-Stop Arm, Push Side Parallel Arm Mounting, 110 Deg. Swing, Size 1 to 5, Full Plastic Cover, Satin Brass Finish, Left-Handed

The 4110 is LCN's best performing parallel arm mounted heavy duty surface door closer designed for institutional and other high traffic applications.

The 4110 Series is LCN’s best performing heavy duty closer designed specifically for institutional and other rugged high traffic applications.

The 4110 Series is a cast iron closer that features an extra duty forged steel standard arm. The fast and accurate installation is also a feature that always impresses as well as the all weather fluid.

• Standard 4110 series closer is shipped with extra duty arm, standard plastic cover, 4110-201 fifth screw spacer and self reaming and tapping screws
• Sized cylinders adjustable for interior doors to 5’0” and exterior doors to 4’0”
• Non-sized cylinder adjustable for interior doors to 4’6” and exterior doors to 3’6”
• Closer mounts parallel arm, specify right or left swinging door
• 4111 cylinder meets ADA requirements
• Standard or optional custom powder coat finish
• Optional plated finish on metal cover, arm and fasteners
• Optional SRI primer for installations in corrosive conditions is available with powder coat only
• The 4110 Series is UL and cUL listed for self-closing doors without holdopen
• Tested and certified under ANSI Standard A156.4, grade one
