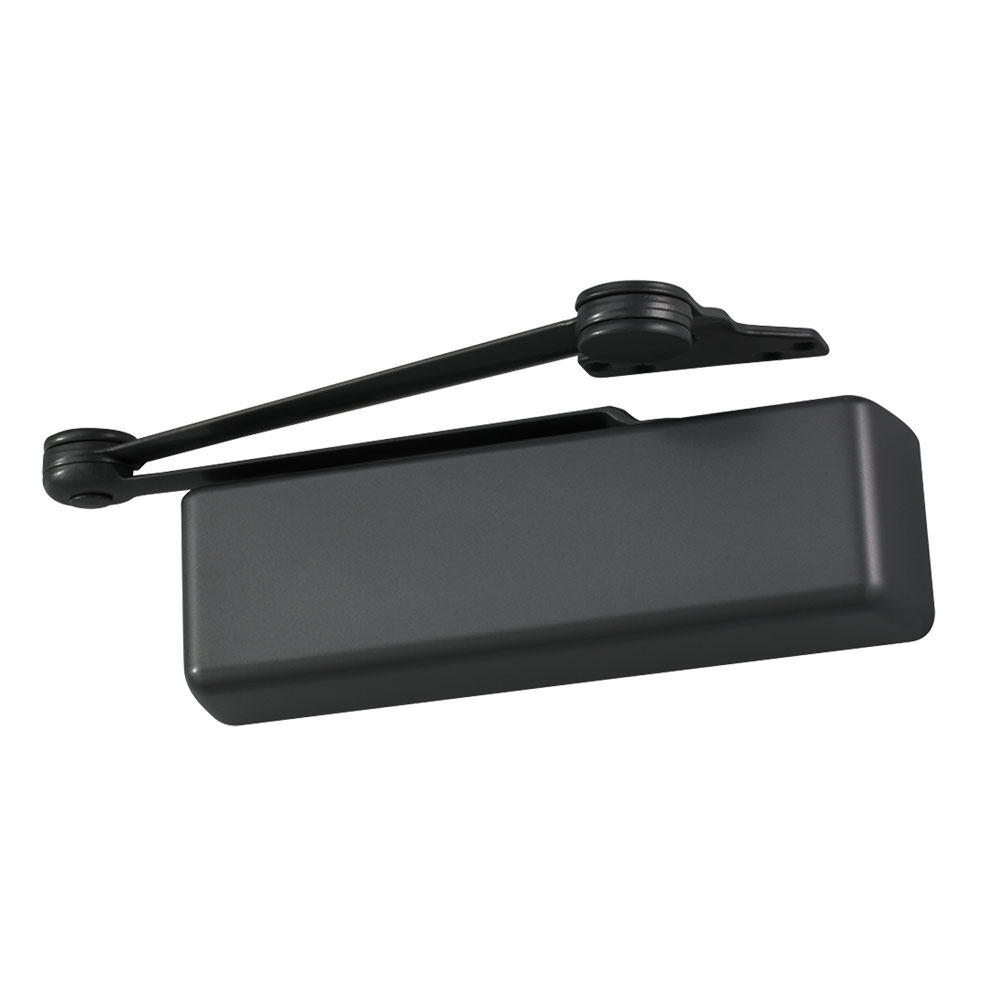

LCN 4111-HEDA LH 693 Heavy-Duty Surface Closer - GLBLK

LCN 4111-HEDA LH 693 Heavy Duty Surface Closer GLBLK is a top-tier solution for high-traffic environments, designed specifically for institutional applications. This Grade 1 surface door closer features a hold-open extra duty arm and parallel arm mounting on the push side, allowing for a smooth operation with a 180-degree swing. The adjustable sizing accommodates various door specifications, supporting interior doors up to 5’0" and exterior doors up to 4’0", ensuring flexibility and ease of installation. Constructed from durable cast iron, the 4110 Series closer is enhanced with a forged steel standard arm, providing exceptional longevity. The full plastic cover in a sleek black finish offers a contemporary look while ensuring protection against the elements. The unit is designed to meet ADA requirements and is UL and cUL listed for self-closing doors without hold-open functionality. With features like cold weather fluid adaptability and a back check of 75 degrees, this closer is built for performance in diverse conditions. The 4111-HEDA is backed by a 30-year limited warranty, reinforcing its reliability. This closer is perfect for commercial applications, combining strength, efficiency, and longevity in one robust package.

HeavyDuty Surface Closer GLBLK

Grade 1 Surface Door Closer, Hold Open Extra Duty Arm, Push Side Parallel Arm Mounting, 180 Deg. Swing, Size 1 to 5, Full Plastic Cover, Black Finish, Left-Handed

The 4110 is LCN's best performing parallel arm mounted heavy duty surface door closer designed for institutional and other high traffic applications.

The 4110 Series is LCN’s best performing heavy duty closer designed specifically for institutional and other rugged high traffic applications.

The 4110 Series is a cast iron closer that features an extra duty forged steel standard arm. The fast and accurate installation is also a feature that always impresses as well as the all weather fluid.

• Standard 4110 series closer is shipped with extra duty arm, standard plastic cover, 4110-201 fifth screw spacer and self reaming and tapping screws
• Sized cylinders adjustable for interior doors to 5’0” and exterior doors to 4’0”
• Non-sized cylinder adjustable for interior doors to 4’6” and exterior doors to 3’6”
• Closer mounts parallel arm, specify right or left swinging door
• 4111 cylinder meets ADA requirements
• Standard or optional custom powder coat finish
• Optional plated finish on metal cover, arm and fasteners
• Optional SRI primer for installations in corrosive conditions is available with powder coat only
• The 4110 Series is UL and cUL listed for self-closing doors without holdopen
• Tested and certified under ANSI Standard A156.4, grade one

Resources

• 4110 Series Surface Mounted Closers Cut Sheet
• LCN 4000 Series Catalog
• LCN 4010, 4020 & 4110 Door Closer w/ Fusible Link Arm Installation Guide
• LCN 4110 Drop Plates Installation Guide
• LCN 4110 Peel-N-Stick CUSH Installation Guide
• LCN 4110 Peel-N-Stick Installation Guide
• LCN 4110 Series Cut Sheet
• LCN Closers & Auto Operators Installation Guide
• LCN Drop Plates Installation Guide for 4110, 4110 CUSH, 4210, 4210 CUSH, 4110T, 4210T
• Von Duprin Finishes Chart
