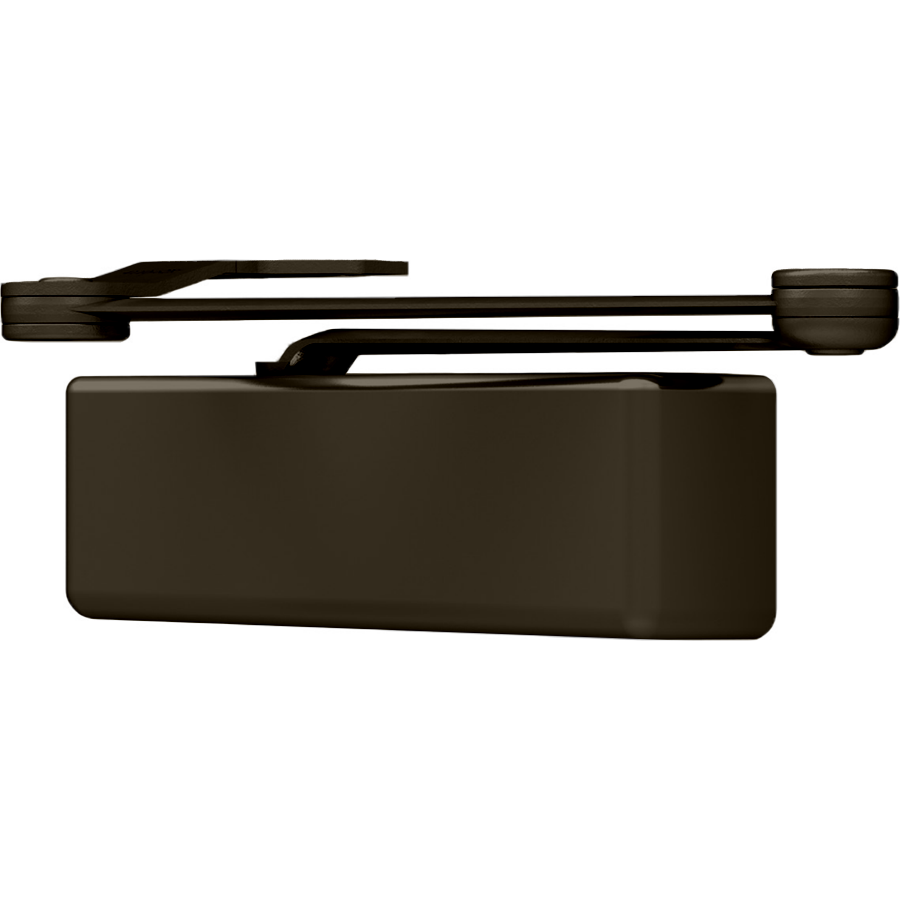

LCN 4111-SCUSH-DKBRZ-LH Heavy Duty Cast Iron Door Closer, Left Hand, ADA Adjustable, Dark Bronze

LCN Closers 4111-SCUSH-DKBRZ-LH Heavy Duty Door Closer combines robust construction with innovative technology to deliver exceptional performance for high-traffic environments. Engineered from durable cast iron, this surface-mounted closer features a spring Cush-N-Stop arm, designed specifically for left-handed applications. With an adjustable spring size range of 1-5, it ensures compliance with ADA standards and accommodates various door weights and conditions. This Grade 1 closer is UL and cUL listed, meeting ANSI/BHMA standards, and is backed by an impressive 30-year warranty, attesting to its reliability and longevity. The patented LCN green dial spring power indicator simplifies adjustments, making it user-friendly for building professionals and homeowners alike. Its all-weather fluid ensures consistent operation in diverse climates, while the plastic cover provides a sleek, unobtrusive finish in a dark bronze powder coat. Installation is made easier with peel-and-stick templates that support a 2-1/2" x 6" mounting hole pattern, and it includes a TB SRT screw pack for a secure fit. Whether for commercial or residential use, the LCN 4111-SCUSH-DKBRZ-LH Heavy Duty Door Closer is an ideal choice for maintaining safety and accessibility in any building.

Heavy Duty Door Closer, Cast Iron, Surface Mount, Spring Cush-N-Stop Arm, Left Hand, Plastic Cover, ADA Adjustable Spring Size 1-5, Grade 1, TBSRT Screw Pack, 695/DKBRZ Dark Bronze Powder Coat

The 4010, 4020 and 4110 series are heavy-duty closers that meet demands for high-traffic installations, and each are designed specifically for unique mounting applications. They are UL and cUL listed, meet ANSI/BHMA grade 1 standards and boast 30-year warranties. They feature a standard plastic cover, with optional plated finishes for the cover, arm and fasteners. They also feature the LCN green dial spring power indicator, which takes the guesswork out of adjustment. The 4110 is LCN's best performing heavy duty closer with an adjustable spring and possible hold open point beyond 140 degrees, meeting ADA requirements. Backed by a 30 year warranty, the cast iron body and all weather fluid offer versatility in high traffic applications.

Features:

• Cast iron cylinder with full-complement bearing
• 1-1/2" diameter piston
• Double heat-treated steel pinion journal
• All-weather fluid
• LCN patented green dial spring power indicator
• 30-year warranty
• Application specific handed
• Standard plastic cover
• Adjustable spring sizes 1-5 or 6 only

Specifications:

• Certifications: Grade 1 - ANSI A156.4, UL 10C, ADA, 100 hour salt spray, meets BAA - buy American Act
• Body Construction:
• Cast iron body
• Full complement bearing
• 1-1⁄2" diameter piston
• 11⁄16" diameter double heat treated pinion journal
• Fluid: All weather fluid
• Handing: Handed
• Templating: Peel-n-stick templates - 2-1⁄2" x 6" mounting hole pattern
• Size: Adjustable spring size 1-5, or sized 6, includes patented green dial
• Cover:
• Plastic cover (PC), standard
• Metal cover (MC), optional
• Fasteners: Self reaming and tapping screws (SRT)
• Mounting: Parallel arm (push side)

Optional Arms:

• 4110-3049EDA: Hold Open Arm (H)
• Handed
• Optional
• Provides hold open function, adjustable at shoe
• 4110-3049FL: Fusible Link Arm (FL)
• Handed
• Releases hold-open function adjustable at shoe when exposed to temperatures above 165° F
• Optional
• Note: Check local codes before specifying FL arms. Not a life safety product!
• 4110-3077CNS: Cush-n-Stop Arm (CUSH)
• Non-handed
• Features solid forged steel main arm and forearm with built-in stop in soffit shoe
• 4110-3077EDA: Extra Duty Arm (EDA)
• Non-handed
• Features forged, solid steel main and forearm for potentially abusive installations
• 4110-3077EDA/62G: Extra Duty Arm (EDA)
• Non-handed
• Features forged, solid steel main and forearm for potentially abusive installations
• Optional 4110-62G thick hub shoe for blade stop clearance
• 4110-3049CNS: Hold Open Cush-n-Stop Arm (HCUSH)
• Non-handed
• Provides hold open function with templated stop/hold open points
• Handle controls hold open function
• 4110-3077SCNS: Spring Cush-n-Stop Arm (SCUSH)
• Non-handed
• For abusive applications features solid forged steel main arm and forearm with spring loaded stop in the soffit shoe
• Optional
• 4110-3049SCNS: Spring Hold open Cush-n-Stop Arm (SHCUSH)
• Non-handed
• For abusive applications features solid forged steel main arm and forearm with spring loaded stop in the soffit shoe
• Handle controls hold open function
• Optional

Finishes:

• 622 - Matte black
• 689 -Aluminum
• 690 - Statuary bronze
• 691 - Light bronze
• 693 - Gloss black
• 695 - Dark bronze
• 696 - Brass
